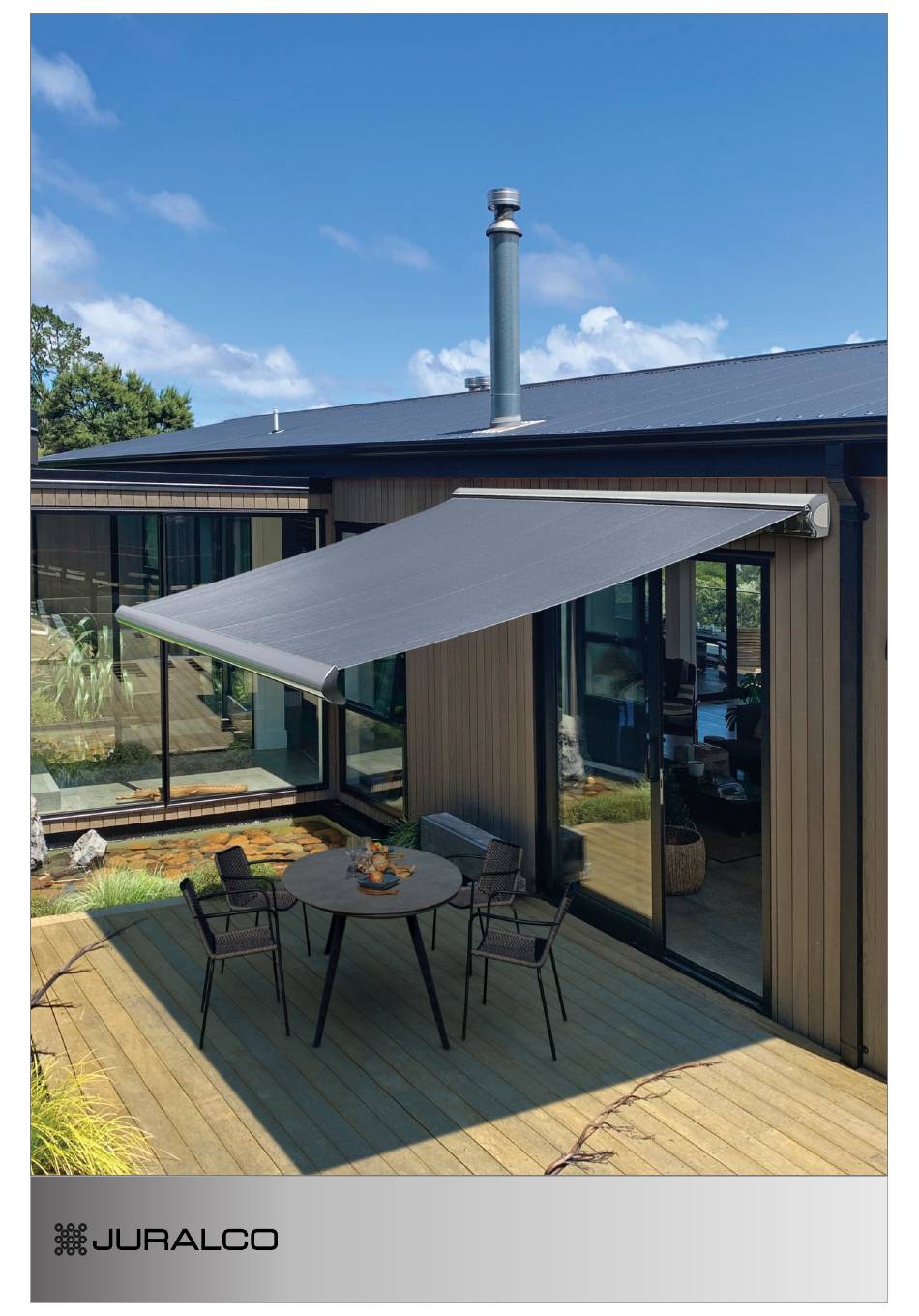

- Page 1 JURALCO DELFINA ™ AWNING SYSTEM Issue 10-23 v2 Juralco Delfina Awning System ™ ISSUE 10-23 v2 www.juralco.co.nz ph (09) 478 8018...
- Page 2 These are also semi-translucent letting through a small percentage of light. General Description - The Juralco Delfina Awning system is available as a single unit up to 5.9m wide, with a max 3.5m outward awning extension. ™ When shut enclosed in a weather tight box.
- Page 3 2. Products ™ - Only extrusions, components and hardware supplied by or specified by JABP may be used in the Juralco Delfina Awning System - Aluminium extrusions, components and hardware – unless specified are manufactured to 6060 T5 specifications - Stainless Steel components, hardware, fixings – all components to 316 grade 3.Surface Finishing...
- Page 4 Juralco Delfina Awning System - General Descriptions ™ General 33 31 Mounting Brackets, support the whole awning. Made of cast Mounting Brackets With Face Fix (std) and optional Soffit fix brackets aluminium for Face fix installation. Up to 5 x needed for larger/windy situations.
- Page 5 Juralco Delfina Awning System - Extrusions ™ BACK BAR JDA/110 75/4 78/80 dia JDA/110 75/5.92 ROLLER TUBE, 78/80mm dia JDA/110 74/4 JDA/110 74/5.82 TOP PROFILE JDA/403 9029/4 JDA/403 9029/5 JDA/403 9029/5.82 FRONT PROFILE JDA/403 9052/4 BOTTOM PROFILE JDA/403 9052/5 JDA/403 9066/4 JDA/403 9052/5.82...
- Page 6 Juralco Delfina Awning System - Components ™ Roller Tube End Cap, Square Roller Tube End Cap Round JDA/403 1325 JDA/403 1326 80mm dia 80mm dia 13mmsq shaft 12mm dia shaft Face Fix Bracket Ceiling Fix Bracket Bottom Profile Attach Clip Set...
- Page 7 Juralco Delfina Awning System - Components ™ HeadBox End Caps HeadBox End Caps Logo Holder JDA/403 9041 JFA/FDS/LOGOHOLDER Front Hand Set Seals Front Profile End Caps JDA/403 9021 JDA/403 9058(RAW) Top BoardSeal JDA/403 9089 Front Profile Closing Seal JPA/403 9388...
- Page 8 Juralco Delfina Awning System - Components ™ Folding Arms Gearbox Handle Gearbox Handle Clip JDA 4026500 Set = Pair, 1 x RH, 1 x LH JDA/403 9708/1.5 - 1500mm Projection (Single Wire) JDA/403 9716/2.0 - 2000mm Projection (Single Wire) JDA/403 0431 - 1200mm JDA/403 9720/2.5 - 2500mm Projection (Double Wire)
- Page 9 Juralco Delfina Awning System - Face Fix, Closed ™ Top Profile Seal Top Profile Support Bracket Top Profile Awning Face Fix Front Profile Bracket Closing Seal Front Front Profile Optional Front Profile Valence attach Bottom Profile Folding Arms (clip in)
- Page 10 ™ Juralco Delfina Awning System - In Line Motors and Controls Tubular Motors Tubular Motors JNICE ERA M 3017 and 5012 JNICE ERA PLUS 3017 and 5012 For Switch Control For Remote Control Tubular Motors 45mm dia Push Button Limit switches...
- Page 11 ™ Juralco Delfina Awning System - In Line Motors and Controls One switch per Single Motor only. Manual Control Use relays if more than single Motor HPM Rotary Connections at Motor Motor fully tested Switch Controls and Limits set at factory...
- Page 12 ™ Juralco Delfina Awning System - Awning Retraction Wind Settings Wind Speed Adjustment - Awning Retraction settings At the factory, the intervention threshold to is set at level 3 and to change it you must take the following steps 01. Keep the n key pressed and wait for the motor to perform 2 movements. Upon completion, release the key.
- Page 13 ™ Juralco Delfina Awning System - Measuring, Brackets Measuring Awning on site Check List: Angle down Projection 1 - Check the desired width and installation area, making sure from Horizontal there are no obstructions. 2 - Check that the desired number of wall/ceiling attach brackets all have secure fixing points.
-
Page 14: Contents Of The Package
Strictly observe what is described on the product installation instructions. Non compliance may cause premature degradation of the product or malfunction which will not be supported by Juralco 3 - Conditions to be able to carry out product maintenance and after-sales service: - Provide as far as possible easy access to the Awning. - Page 15 ™ Juralco Delfina Awning System - Installation PREPARATION 1 - Place your awning in position at the foot of the installation location. The installation height must allow a passage under the load bar of 1800 mm minimum (2100 mm recommended.)
- Page 16 ™ Juralco Delfina Awning System - Installation SPECIAL ADJUSTMENTS AND RECOMMENDATIONS ARM ADJUSTMENT WITH AWNINGS OVER 3615mm WIDE (REINFORCED ARM SUPPORTS) The tilt and horizontality of the Front bar is adjusted with the Awning unfolded. In the case of a motorized Awning, first connect to the mains to unroll the fabric.
- Page 17 AW # Customer Contact Order No Date Juralco Juralco Juralco Select/Enter Dimensions below. Enter details/selections into all boxes. Then scan and send to sales@juralco.co.nz Unsuitable for use in Strong Wind Areas Available Select Widths Enter Overall Delfina Awning Projections Projection...
- Page 18 - These are new exemptions dated Dec 2010 While every effort has been made to ensure that this information is correct at time of writing, it is provided for guidance only and Juralco will accept no liability for, nor warrants the accuracy of this guidance. It is the sole responsibility of the of the purchaser to confirm current status of consent requirements with the relevant territorial authority before purchase and installation.
- Page 19 ™ Juralco Delfina Awning System - Powder Coating Care and Maintenance Powder Coating Installation Care Warning re use of solvents: - In some cases strong solvents are recommended for thinning various types of paints and also for cleaning up mastics and sealants.
