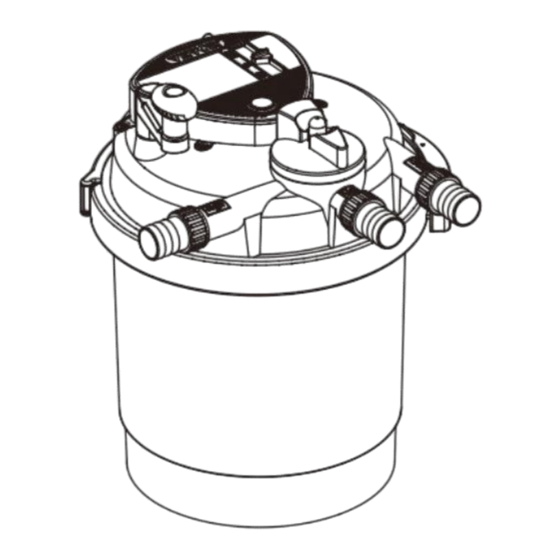

WATER FILTER
(UV-C POND BIO PRESSURE FILTER)
INSTRUCTION MANUAL
We continue to be committed to providing you with tools at a competitive price. "Save Half",
"Half Price" or any other similar expressions used by us only represent an estimate of savings
you might benefit from buying certain tools with us compared to the major top brands and do
not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to
verify carefully when placing an order with us if you are actually saving half compared to the
top major brands.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VEVOR CPF-2500
Summary of Contents for VEVOR CPF-2500
- Page 1 Support and E-Warranty Certificate www.vevor.com/support WATER FILTER (UV-C POND BIO PRESSURE FILTER) INSTRUCTION MANUAL We continue to be committed to providing you with tools at a competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us.
-
Page 2: Water Filter
CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product. - Page 3 Before operating this appliance, please read this instruction manual completely and keep it handy for future reference. INSTRUCTION FOR USE Use these instructions to familiarise yourself with the device before you use it for the first time. It is imperative that you observe the safety guidelines on the proper and safe use of this device.
-
Page 4: Conventional Use
SYMBOLS Water goes through the pump into the filter. Water goes through the filter into the pond. Water from the cleaning outlet goes into the sewerage system or flower bed, etc. UNPACKING 1. When unpacking, if external damage is visible which could impact the function of important parts of the equipment, please inform the carrier of the defects immediately, on the same day if possible, and insist on the facts being recorded in writing. -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS CAUTION: The C series UV-Clarifiter device is a kind of stationary type machine that is fixed with a UV-C lamp. Unintended use of the appliance or damage to the housing may result in the escape of the dangerous UV-C radiation. UV-C radiation may, even in little doses, cause harm to the eyes and skin. - Page 6 10. In addition to the clear requirements in the manual, do not open the equipment or other accessories. 11. Before any operation on the equipment, cut off all the power of the equipment. 12. Equipment, the interface and the plug are not waterproof, so do not allow the underwater laid or installation.
- Page 7 appliance is properly grounded. Do not modify the plug provided with the appliance; if it will does not fit the outlet, have a proper outlet installed by a qualified technician. FEATURES 1. Integral filter system, filter effect is remarkable. 2. With a complete UV-C clarifier, the UV lamp can be timed and set at will at OFF, 12 and 24 hours.
- Page 8 HOW THE FILTER WORKS The pressure filter with integrated UV is a sealed filter system for the biological and mechanical cleaning of pond water. A. Water inlet The pump is connected to the water inlet with a pressure hose. B. Vortex system Under the action of gravity, suspended solids and mud are separated.
- Page 9 Biological materials can help cultivate all kinds of anaerobic bacteria, and the anaerobic bacteria will turn the nitrate into ammonia gas. Note: CPF-2500 does not contain biochemical materials. E. UV-C filtration As the water flows out, it is briefly exposed to ultraviolet radiation under the UV lamp.
- Page 10 The clear water is achieved if the fish or stones at the bottom of the pond can be seen at a depth of 3.28ft 1. The installation of the filter 1) Install the filter so that it is safe from flooding. Secure your filter so that it will not fall into the pond.
- Page 11 6.Cleaning connection Connected to the cleaning connection. This allows you to drain the dirty water directly into the sewerage system or onto a flower bed. Starting on the pressure filter Before each start-up, you should check that the connected hoses and the clamp are sitting correctly.
- Page 12 sponge to achieve mechanical cleaning. 3) The filter will now be rinsed. Once clean water can be seen through the transparent spiral stepped hose adapter at the cleaning connection, turn anti-clockwise until it clicks into the "filter" position. 4) The filter is now operating again. Check the water flow into the pond. REPLACEMENT OF THE FILTER SPONGES If the water flow is too small due to dirty filter sponges, and can not be improved by cleaning the handle.
-
Page 13: Wearing Parts
the safety latch in. 12. Fasten all hoses with flat seals or flow vane to the corresponding connection by screwing the union nuts on tight. 13. Start the pressure filter up again. Note: As for the difference between models, please refer to the actual prevail. -
Page 14: Troubleshooting
TROUBLE SHOOTING STORAGE In order to prevent frost, you must drain the water, clean and check the filter after use. Then store it in a dry place. - 13 -... -
Page 15: Technical Parameters
TECHNICAL PARAMETERS CRITERIA: POND SIZE AND WITHOUT FISH POPULATION - 14 -... - Page 16 PART LIST CPF-2500 - 15 -...
- Page 17 CPF-3500 Name Screw 1 UV head O-ring 1 UV lamp O-ring 2 Quartz glass tube set Fixing-nut Sponge Separate plate Sponge fix part Filter basket cover Bio ball Filter basket Clamp O-ring 3 Container Screw 2 Washer Down bearing Clean gear set Inlet&Outlet O-ring 4 Cleaning handle...
- Page 18 CPF-10000 Name Screw 1 UV head O-ring 1 UV lamp O-ring 2 Quartz glass tube set Fixing-nut Sponge Separate plate Diversion pipe Filter basket set Clamp O-ring 3 Container Screw 2 Washer Down bearing Clean gear set Drain outlet Gasket Flow impeller Inlet&Outlet Inlet&Outlet nut...
-
Page 19: Environmental Protection
ENVIRONMENTAL PROTECTION This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked with this symbol cannot be discarded with normal household waste but must be taken to an electrical and electronic equipment collection point for recycling. - Page 20 Support and E-Warranty Certificate www.vevor.com/support...
