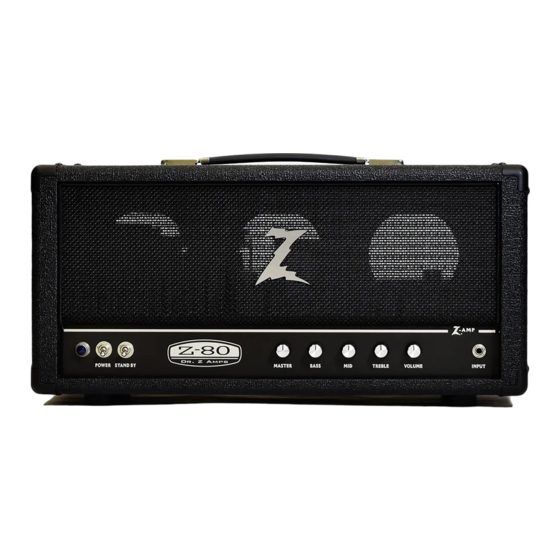

- Page 1 Z-80 Manual Model: ZA-46 www.drzamps.com...
- Page 2 This symbol warns the user of dangerous voltage levels localized within the enclosure. This symbol advises the user to read all accompanying literature for safely operating the unit Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions.
- Page 3 Seeking to retain the unique vibe and distinct tone of the original cathode-biased design, but insuring it was bullet-proof, the amp now dubbed the Z-80 has been on Paisley’s stage for 5+ years on the road, and has also found its way to numerous other Z artists’...
- Page 4 FRONT PANEL 1. Input: Input jack for your guitar. 2. Volume: Controls the amp input signal. As you turn the volume up natural overdrive will occur along with an increase in volume. 3. Treble: Controls overall high frequency response. 4. Mid: Controls the midrange response. At noon this roughly emulates the midrange content of a stock AC-style circuit with a fixed mid tone stack.
- Page 5 MODEL: ___________________ SERIAL NUMBER: ___________ INPUT VOLTAGE: ____________ MADE IN USA...
- Page 6 Manufacturer: Dr. Z Ampli cation 17011 Broadway Ave. Maple Heights, OH 44137 -3407 We declare that the designated product (s) DR. Z Z-80 is/are in conformity with the European Directives: 2014/30/EU EMC Directive of 26 February 2014 20 11/65/EU RoHS Directive of 8 June 2011...
- Page 7 We, Dr. Z Amps, declare, taking this declaration under our total responsibility, that guitar amplifier model Z-80 (ZA-46) is in conformity with EN 55013, EN 61000-3-2, EN 61000-3-3, and EN 55020 in accordance with the Directive 2006/95/EC of 12 December 2006, even more declaring that the CE marking was affixed in the year 2001.
