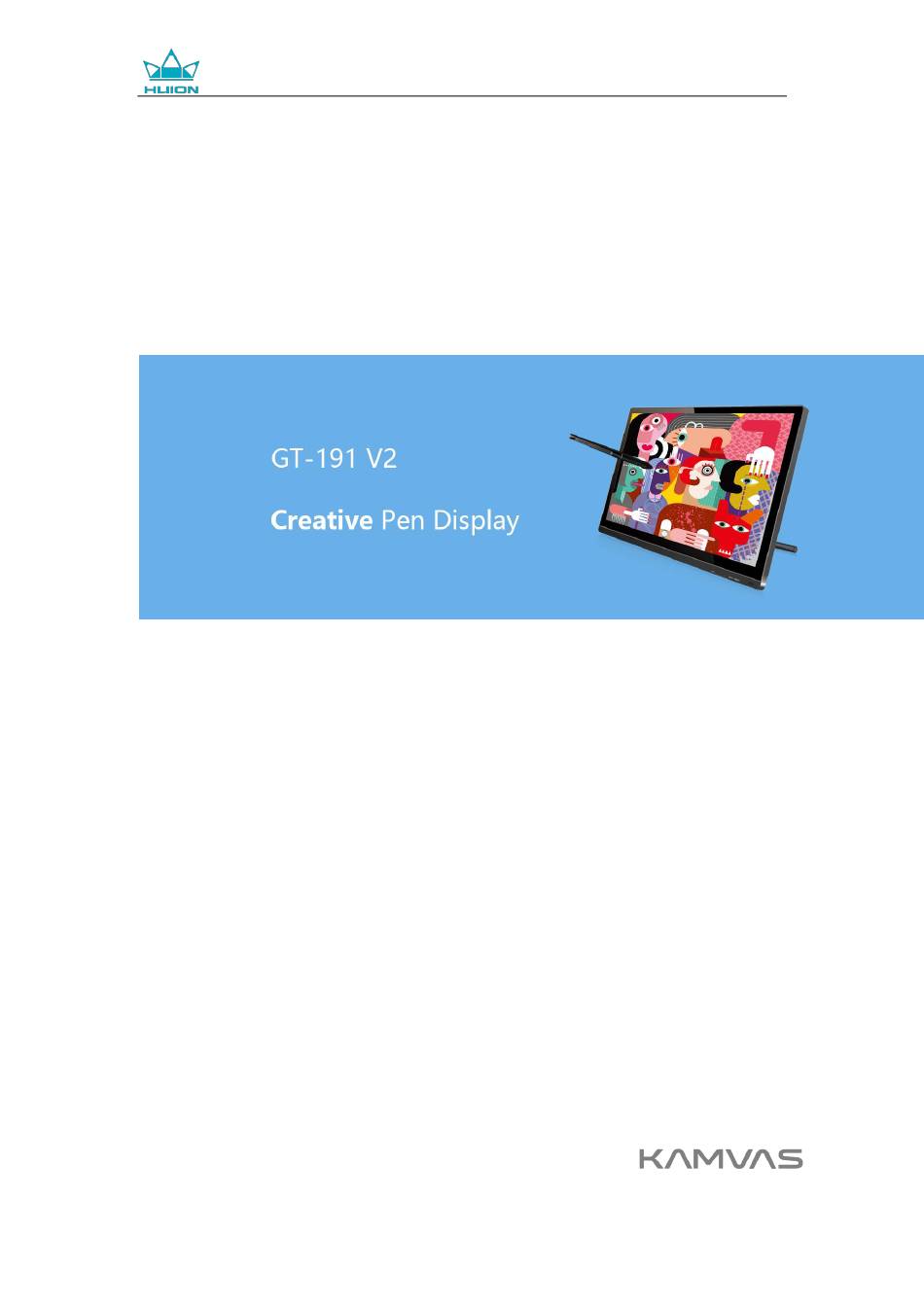

- Page 1 GT-191 V2 User Manual For Windows and Macintosh OS...
- Page 2 D. When obvious abnormalities occur to the display. 13. While getting the components replaced, you are supposed to guarantee that the repairman is using the substitute components specified by the manufacturer. Unauthorized component replacement might cause fire, electric shocks or other dangers. www.huion.com...
-
Page 3: Table Of Contents
3.7 Enable the Windows Ink feature ..................16 3.8 Data Export and Import ...................... 17 4. Specifications ..........................18 5. Trouble Shooting ........................... 19 5.1 Possible Breakdowns Related to DISPLAY ................19 5.2 Possible Breakdowns Related to FUNCTIONS ..............19 www.huion.com... -
Page 4: Product Overview

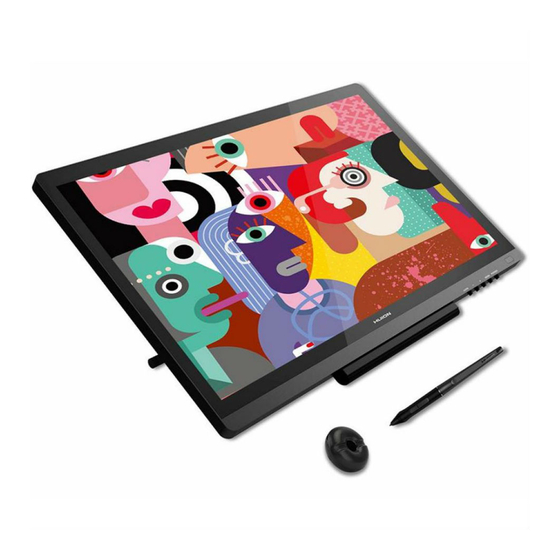

1. Product Overview 1.1 Display Introduction ® ® Thanks for choosing HUION KAMVAS GT-191 V2 graphics display. This is a new generation of desktop-level professional drawing display, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience. - Page 5 By dragging this switch to adjust the stand angle from 20°-80° 1.2.4 Other Accessories Stylus Pen Pen Holder Pen Nibs Nib Clip USB Cable HDMI Cable Power Cable Power Adapter Quick Start Guide Warranty Card Glove Cleaning Cloth www.huion.com...
-
Page 6: Setting Up Display
Windows 7 or later，macOS 10.12 or later 1.4.2 Install via Download Please download the driver from our website: www.huion.com/download After finishing installation, you can find the driver icon in the system tray area, which means the driver was installed successfully; when you connect the tablet to... -
Page 7: Pen Nib Replacement
2. Before installing, please close all graphics software and anti-virus software to avoid unnecessary mistake. 1.5 Pen Nib Replacement The nib will be wear out after using for a long time, then you need to replace a new nib. www.huion.com... -
Page 8: Product Basic Operation
Press the pen tip on the screen to make a selection. Tap the screen once with the pen tip, or touch it to the screen with enough pressure to register a click. www.huion.com... - Page 9 The side buttons of the pen can be set to two different customizable functions. You can use the buttons whenever the pen tip is within 10mm of the display active area. You do not have to touch the pen tip to the display in order to use the switch. www.huion.com...
-
Page 10: Osd Setting
2. CONTRAST： Adjusting difference between darkness and brightness of the screen. Press the buttons“+”and“-”to increase and decrease contrast. 3. ECO: There are four eco modes of“STANDARD, TEXT, GAME, MOIVE”. 4. DCR: Choosing“on/off”to on/off Dynamic Contrast Ratio. www.huion.com... - Page 11 4. PHASE: Adjusting the horizontal blinking of characters on the screen. 5. ASPECT: There are“WIDE”and“4:3”two modes for you to adjust the aspect of the screen. 2.2.4 Color Temp. Setting COLOR TEMP.: There are three color modes of “WARM, COOL, USER “. 10 / www.huion.com...
- Page 12 2.2.6 Reset 1. IMAGE AUTO ADJUST: Automatically adjust the image’s horizontal/vertical position, focus and clock. 2. COLOR AUTO ADJUST: Automatically adjust the image color balance. 3. RESET: All the setting options will be restored to the default setting. 11 / www.huion.com...
-
Page 13: Function Setting
2. Device connected: The computer has recognized the tablet. 3.2 Working Area Setting 3.2.1 Using Multiple Monitors When the KAMVAS and other monitors are used in the same system, the movement of the screen cursor on the standard display depends on the system configuration. 12 / www.huion.com... - Page 14 1. Full Area: the entire active area of the Display. This is the default setting. 2. Same Ratio with LCD. 3. Customized Area: 1.> Enter coordinate values. or2>. Drag the corners of the foreground graphic to select the screen area. 13 / www.huion.com...
-
Page 15: Pen Button Function Setting
By changing the direction of the tablet to adapt to the left and right hand operation. You can rotate the tablet by 0°,90°,180° or 270°. 3.3 Pen Button Function Setting Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect. 14 / www.huion.com... -
Page 16: Pressure Sensitivity Setting
The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more sensitive the pressure. 3.5 Pen Pressure Testing You can gradually apply pressure to the stylus on the screen to test the pressure level. Click “Clear” button to clear all the ink. 15 / www.huion.com... -
Page 17: Calibration
Cancel Calibration: Click"Cancel calibration” or press ESC on the keyboard to cancel the calibration. 3.7 Enable the Windows Ink feature Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office、Windows Journal、Adobe Photoshop CC、 SketchBook 6 and so on. 16 / www.huion.com... -
Page 18: Data Export And Import
GT-191 V2 3.8 Data Export and Import The driver supports exporting and importing your customized configuration data of the product, which is convenient for you to use different software and avoid the trouble of repeated settings. 17 / www.huion.com... -
Page 19: Specifications
Input Voltage 100-240VAC, 50/60Hz Output Voltage DC12V 3A Video Interface HDMI、DVI、VGA General 475 x 298 x 35mm Dimension （Without Stand） Net Weight 3.3KG(without stand) Adjustable Stand 20°-80° Windows 7 or later, OS Support macOS 10.12 or later 18 / www.huion.com... -
Page 20: Trouble Shooting
When pressing the side button, please make sure that the nib The side button of the pen didn’t touch the glass surface and the distance between the doesn’t work nib and surface is within 10mm There is a deviation between the Try calibration tip and the cursor 19 / www.huion.com... - Page 21 Shenzhen, 518106, China Note: Information in this manual is subject to change without further notice. service@huion.com For more information, please contact us with our email: Or go to our website (www.huion.com) to get the latest driver and user manual. 20 / www.huion.com...
