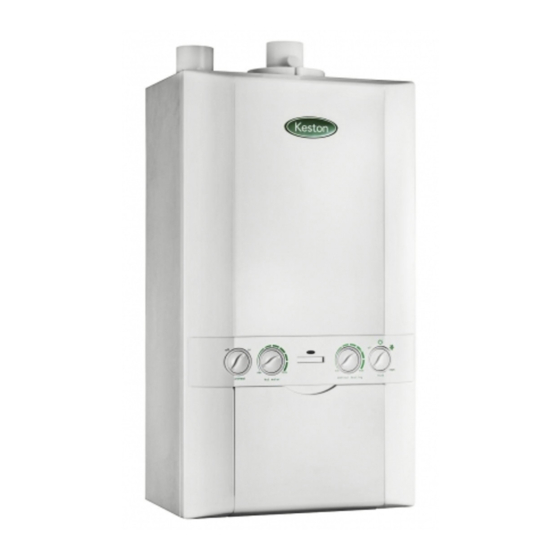

Keston 30C User Manual

Gas fired condensing combination boiler
Hide thumbs Also See for 30C:
Table of Contents

Advertisement

Quick Links

Download this manual
The Keston 30C
30C
User Guide
Gas Fired Condensing
Combination Boiler
34 West Common Road
Hayes, Bromley, Kent BR2 7BX
Tel. + 44 (0)20 8462 0262 Fax. +44 (0)20 8462 4459
email : info@keston.co.uk web : www.keston.co.uk
COMPLIANT WITH BUILDING REGULATION PART L1 & L2
SEDBUK A RATED
205532-1.pmd
1
23/06/2010, 08:37

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 30C and is the answer not in the manual?

Questions and answers

Related Manuals for Keston 30C

Summary of Contents for Keston 30C

  • Page 1 Combination Boiler 34 West Common Road Hayes, Bromley, Kent BR2 7BX Tel. + 44 (0)20 8462 0262 Fax. +44 (0)20 8462 4459 email : info@keston.co.uk web : www.keston.co.uk COMPLIANT WITH BUILDING REGULATION PART L1 & L2 SEDBUK A RATED 205532-1.pmd...
  • Page 2 205532-1.pmd 23/06/2010, 08:37...
  • Page 3 G.C. Appliance No. 47-930-03 Keston is a member of the Benchmark scheme and fully supports the aims of the programme. Benchmark has been introduced to improve the standards of installation and commissioning of central heating systems in the UK and to encourage the regular servicing of all central heating systems to ensure safety and efficiency.
  • Page 4 The boiler will repeat the ignition sequence. INTRODUCTION The Keston 30C is a wall mounted, room sealed, condensing combination boiler, featuring full sequence automatic spark ignition and fan assisted combustion. Due to the high efficiency of the boiler, condensate is produced from the flue gases and this is drained to a suitable disposal point through a plastic waste pipe at the base of the boiler.

  • Page 5: Electricity Supply

    ELECTRICITY SUPPLY This appliance must be earthed. Supply: 230 V ~ 50 Hz. The fusing should be 3A. Important Notes • This appliance must not be operated without the casing correctly fitted and forming an adequate seal. • If the boiler is installed in a compartment then the compartment MUST NOT be used for storage purposes. •...

  • Page 6: Boiler Controls

    BOILER CONTROLS LEGEND A. Pre-heat On/off Burner ‘on’ indicator B. DHW temperature control G. Pressure Gauge C. CH temperature control H. Condensate Drain D. Mode Control Economy Mode E. Boiler Status 205532-1.pmd 23/06/2010, 08:37...
  • Page 7 TO LIGHT THE BOILER. (REFER TO BOILER CONTROLS) If a programmer is fitted refer to separate instructions for the programmer before continuing. Check that the electricity supply to the boiler is off. Set the mains Off/Summer/Winter control (D) to ‘Off’. Set the Domestic Hot Water temperature control (B) and Central Heating temperature control (C) to ‘max’.

  • Page 8: Operation

    OPERATION Winter Mode - i.e. CH and DHW required. Ensure the off/summer/winter control (D) is set to winter ( The boiler will fire and supply heat to the radiators but will give priority to DHW on demand. The DHW preheat will operate as described under 'Summer conditions' during periods when there is no call for CH. Summer Mode - i.e.

  • Page 9: To Shut Down The Boiler

    C (147 The Keston 30C is a high efficiency combination boiler which is most efficient when operating in condensing mode. The boiler will operate in this mode if the CH temperature control (C) is set to the ‘e’ position (economy mode) or below. This control should be set to a maximum for very cold periods.

  • Page 10: Loss Of System Water Pressure

    LOSS OF SYSTEM WATER PRESSURE The gauge (G) indicates the central heating system pressure. If the pressure is seen to fall below the original installation pressure of 1-2 bar over a period of time then a water leak may be indicated. In this event conduct the re-pressurising procedure as shown below.

  • Page 11: Condensate Drain

    CONDENSATE DRAIN The condensate drain (H) must not be modified or blocked. Blockage of the condensate drain, caused by debris or freezing, can cause automatic shutdown of the boiler. If freezing is suspected and the pipe run is accessible an attempt may be made to free the obstruction by pouring hot water over the exposed pipe and clearing any blockage from the end of the pipe.

  • Page 12: Points For The Boiler User

    POINTS FOR THE BOILER USER Note. In line with our current warranty policy we would ask that you check through the following guide to identify any problems external to the boiler prior to requesting a service engineers visit. Should the problem be found to be other than with the appliance we reserve the right to levy a charge for the visit, or for any pre-arranged visit where access is not gained by the engineer.

  • Page 13: Troubleshooting

    See boiler “Display Functions” See boiler “Display Funcitons” section. If “standby mode” is Does the boiler operate and section displayed then contact Keston provide central heating? Customer Services Helpline if your appliance is under warranty Contact a Gas Safe Registered...
  • Page 14 DISPLAY FUNCTIONS - NORMAL OPERATION MODE The display scrolls through a maximum of 3 messages under any operational condition, as shown below. Note. The temperatures shown below are for illustration purposes only. The measured temperatures will be shown on the boiler. NORMAL OPERATION MESSAGE 1 MESSAGE 2...

  • Page 15: Display Functions - Settings Changed

    DISPLAY FUNCTIONS - SETTINGS CHANGED Note. The temperatures shown below are for illustration purposes only. The measured temperatures will be shown on the boiler. NORMAL OPERATION MESSAGE 1 MESSAGE 2 MESSAGE 3 Pre-heat knob moved to off position Pre heat off Pre-heat knob moved to on position Pre heat on DHW temperature knob moved...

  • Page 16: Display Functions - Fault Messages

    1. Turn power off and on at the fused spur. Contact Installer 2. If the boiler fails to operate please contact Keston (if under warranty) or alternatively a Gas Safe Registered Engineer if outside of the warranty period. In IE contact a Registered Gas Installer (RGII).
  • Page 17 Low Water Pressure Check system pressure is between 1 & 1.5bar on the pressure 1 Fill System to 1.0 Bar gauge. If the fails to operate then please contact Keston (if 2 Bleed Radiators under warranty) or alternatively a Gas Safe Registered 3 Contact Installer Engineer if outside of the warranty period.
  • Page 18 If the boiler fails to operate then 1 Check Other Gas Appliances Work please contact Keston (if under warranty) or alternatively a Gas 2 Reset Boiler Safe Registered Engineer if outside of the warranty period. In 3 Contact Installer IE contact a Registered Gas Installer (RGII).
  • Page 19 205532-1.pmd 23/06/2010, 08:37...
  • Page 20 March 2010 UIN 205532 A01 Keston pursues a policy of continuing improvement in the design and performance of its products. The right is therefore reserved to vary specification without notice. Keston Boilers, 34 West Common Road, Hayes, Bromley, Kent, BR2 7BX.
