LINCOLN
A PENTAIR COMPANY

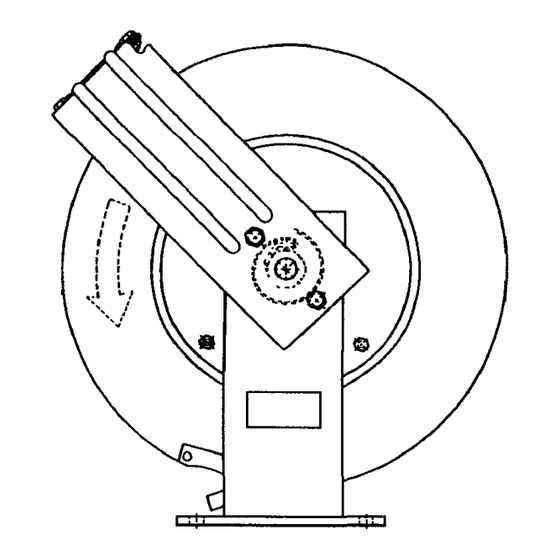

MODEL 85308
BARE REEL
SERIES "A"
®
OWNER/OPERATOR
MANUAL
SPECIFICATIONS
Maximum working pressure
5000 p.s.i.
Material Inlet
3/8 NPT (Female)
Material outlet
3/8" NPT (Female)
Sheave width
2-1/2"
Sheave diameter
15"
Drum diameter
8"
Overall width
7-7/8"
Overall height
18"
Overall depth
17-1/2"
Maximum hose capacities (Including hang down)
1/4" I.D. Grease hose (SAE 100 R2)
25 ft
1/4" I.D. Air/water hose (SAE 100 R6)
30 ft
3/8"
I.D. Air/water hose (SAE 100 R6)
25 ft
3/8" I.D. Oil hose (SAE 100 R1)
25 ft
3/8" I.D. Oil hose (SAE 100 R3)
20 ft
NOTE
Maximum hose capacities are based on SAE specified
hoses
Exceeding these capacities voids warranty
Refer to DELIVERY HOSE INSTALLATION
for proper
hose to reel assembly.
DESCRIPTION
Model
85308
reel is designed
for
standard vehicle servicing and to meet
the need
for
rugged,
dependable
service
The reel provides the following
features
• Easy to install - ceiling, wall,
or floor
• Automatic hose retracting
• Jam-proof automatic latch
OWNER/OPERATOR
stand English,
the contents
of this
RESPONSIBILITY
manual
shall
be explained
in the
owner/operator
native language
to
It is the owner/operator
responsibility
to
assure the owner/operator
compre-
hends
properly
use and maintain
this equip-
ment
It isthe owner/operator
responsibility
The instructions and warnings contained
to maintain the legibility of all warning
and instruction labels
in this manual shall be read and under-
stood by the owner/operator
prior to
The owner/operator
shall retain this
operating this equipment
manual
for future
reference
to
If an owner/operator
does not under-
important
warnings,
operating
and
maintenance
instructions.
LINCOLN
One Lincoln
Way
Copyright
1994
Section
- E35
St. Louis, Missouri
63120-1578
Printed in U.S.A.
®
A PENTAIR COMPANY
(314) 679-4200
Page
-55
FORM 402559
