EVERPURE
EVERDRI
®
TABLE OF CONTENTS
FOODSERVICE
EVERPURE
HIGH CAPACITY COMPRESSED AIR SYSTEM OWNER'S MANUAL
™

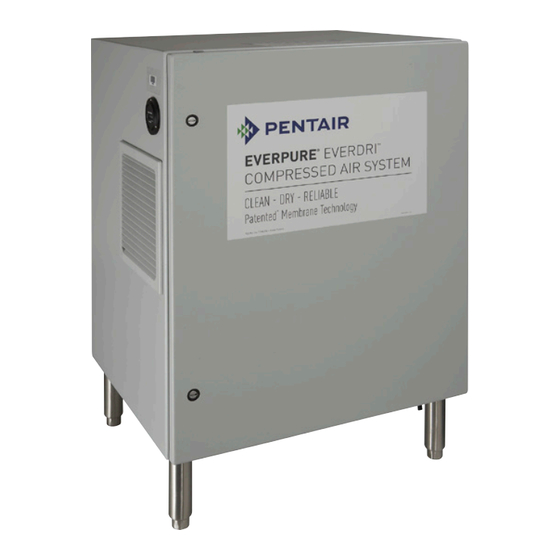

EverDri Compressed Air System
EVERDRI™ COMPRESSED AIR SYSTEM INSTALLATION AND OPERATION GUIDE
®
2
2
2
2
4
4
4
5
5
5
5
5
5
6
6
8
9
9
10
12
12
13
13
13
14
14
15
15
16
17
18
18
19
23
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Pentair EVERPURE EVERDRI
Summary of Contents for Pentair EVERPURE EVERDRI
-
Page 1: Table Of Contents
EVERPURE EVERDRI HIGH CAPACITY COMPRESSED AIR SYSTEM OWNER'S MANUAL ™ ® EverDri Compressed Air System TABLE OF CONTENTS Introduction Inspection Tools and Supplies Required General Precautions Selecting A Location Dimensions Specifications Installation Grounding Instructions Placing the System In Position Parts Identification System Pneumatic Diagram Connections Preventative Maintenance... -
Page 2: Introduction
INTRODUCTION This Everpure EverDri High Capacity Compressed Air System by Pentair is intended to be the primary driver for actuating the following types of equipment in a restaurant, which are currently being driven by CO • Bag-in-Box (BIB) Syrup Pumps for Soft Drinks •... - Page 3 If some adjustment replacement are the sole responsibility of the is necessary on the product, use the service customer. of the nearest authorized Pentair Everpure • Power outlet must be compatible with the Dealer. equipment’s plug. To reduce the risk of shock, •...
-
Page 4: Selecting A Location
• Use of the eight (8) foot power cord using standard Temperature: grounded wall plug rated for 15 amps minimum. 3. Do not install the Everpure EverDri Compressed Air Tank Capacity: 8 gallons (30 L) System in an area with a high amount of dust, particulates Maximum 150 psig (10.3 bar) maximum... -
Page 5: Installation
Placing the System In Position System Pneumatic Diagram WARNING: The system weighs about 195 lbs ( 88.5 kg). Use To provide clean compressed air, the Everpure EverDri proper lifting equipment to move it and only High Capacity Compressed Air System uses an oil-less... -
Page 6: Preventative Maintenance
The • Hearing Protection application equipment should be ready to operate. • Flat Blade Screwdriver 9. Slowly open the ball valve on the Everpure EverDri • Plumber's Tape Compressed Air System to provide pressure to the • Service Kit #1: applications. - Page 7 5. Replace the two (2) compressor intake filters. Normal Operation • Unscrew the filters on the left side by hand, (Figure 7) Backup CO (counterclockwise). A wrench may be used if needed. Inlet • Discard the old filters. • Remove any loose plumber's tape from fittings. •...
-
Page 8: 12-Month Maintenance Procedure - Service Kit #2
• Apply power. Allow the system to turn off using the • Screw the coalescer filter element into the body by automatic shut-off switch. Record the pump-up time. turning it to the right (clockwise). Tighten finger tight. Do not use tools. Throw away bag. •... -
Page 9: 18-Month Maintenance Procedure - Service Kit #1
4. Close and lock cabinet door. • Remove the bowl on the coalescing filter by turning it to the left (counterclockwise). Set bowl with drain tube NOTE: Have a stopwatch ready to record the compressor on cabinet floor. runtime in the log sheet. •... -
Page 10: Troubleshooting
Damaged pop-safety valve Replace pop-safety valve Leakage from pressure switch Damaged pressure switch Replace pressure switch Pump-up time of Everpure EverDri Plugged compressor inlet filters Replace compressor inlet filters Compressed Air System greater than two (2) minutes, 50 seconds Air leakage through water drain tube... - Page 11 Eliminate leakage or obstruction Tubing is the wrong dimensions Replace tubing with proper size tubing (tubing diameter is too small) Excessive pressure drop between the Everpure EverDri compressed air system Pressure gauge does not Replace pressure gauge and the application indicate correct pressure...
-
Page 12: Troubleshooting Procedure 1 - Test Air Dryer Function
= 1.34 Modified pump-up time (111 seconds) Step 6 Drain all air from the compressor tank. Step 7 Return all tubing to correct connections. Call Pentair Technical Support for assistance if needed. EVERPURE EVERDRI™ COMPRESSED AIR SYSTEM INSTALLATION AND OPERATION GUIDE... -
Page 13: Gas Flow System Schematic
GAS FLOW SYSTEM SCHEMATIC AIR/CO Flow Chart and Pressure Settings For an Everpure EverDri Compressed Air System Cut in 95 psi Everpure Cut out 125 psi Compressed Air 95 psi System Crossover Back up Compressed 3/8" ID 3/8" ID 3/8" ID... -
Page 14: Pneumatic Diagram
PNEUMATIC DIAGRAM Enclosure Exhaust Inlet Filter Emergency Pressure Filters Pressure Switch and Fan Relief Valve Pressure Outlet Pressure Gauge Gauge Pressure Relief Valve Pressure Vessel Outlet Ball Check Valve Valve Inlet Coalescing Filter Membrane Aftercooler Filter with Automatic Drain Air Dryer Pressure Regulator Vessel Drain Ball Valve... -
Page 15: Replacement Parts
REPLACEMENT PARTS Cabinet Contact your local Pentair Everpure Dealer for filter ® ® cartridges or system replacement parts. Number Part Number Description ACS-M017 Vent Filter Housing FBSVM02FO2 Outlet Ball Valve ACS-M022 Enclosure Door ACS-M016 Stainless Legs E-BREAKER-15A Circuit Breaker ACS-M018... -
Page 16: Compressor
Compressor Number Part Number Description ACS-M015 Compressor Assembly ACS-M004 Compressor Pump Assembly DFC0644M03P Compressor Inlet Filter FBSNM04NM02 Nipple, 1/4" NPT x 1/2" NPT SSHOSE-NO4-15 Hose, Stainless Steel FPLNM02TF039SW Elbow, Push-To-Connect FBSNF02CF03 Fitting, 3/8" Compression x 3/8" Push-To-Connect ACS-M007 Check Valve ACS-M008 Pressure Switch ACS-M010... -
Page 17: Aftercooler And Filters
Aftercooler and Filters Number Part Number Description FALNM02HNS Aluminum Nipple, 1/4" NPT CLAMP-32-PIPE Dryer Pipe Clamp AHD100721-1A-B Membrane Air Dryer ACS-M021 Neoprene Tubing H-HSCLMP-11.3MM Hose Clamp ACS-M019 Coalescer Filter Assembly FPLNM02TF03 Fitting, Push-To-Connect Straight ACS-M020 Nylon Tubing, 3/8" OD FPLNM02TF039SW Fitting, Push-To-Connect Elbow ACS-M014 Aftercooler Assembly... -
Page 18: Miscellaneous Replacement Parts
Miscellaneous Replacement Parts Number Part Number Description ACS151201-6MO Six (6) Month Maintenance Kit (Service Kit #1) ACS151201-12MO 12-Month Maintenance Kit (Service Kit #2) ACS151201-24MO 24-Month Maintenance Kit (Service Kit #3) ACS-M001 Fan Inlet Filter ACS-M002 Vent Filter PFH0011-EY Coalescer Filter Element ACS-M003 Capacitor ACS-M005... -
Page 19: Limited Warranty
EVERDRI COMPRESSED AIR SYSTEM WARRANTY Pentair Filtration Solutions, LLC (“PFS”) offers the following product warranty for its EverDri Compressed Air System (the “Product”). This Product (excluding replaceable elements) is warranted against defects in materials and workmanship to the original end-user when installed in accordance with the PFS’... - Page 20 1040 Muirfield Drive Hanover Park, IL 60133 United States Pentair Everpure Technical Service: 800.942.1153 / 630.307.3000 NOTE: Pentair reserves the right to alter its product without prior notice. Figures, dimensions and photos are only for orientation. Use Pentair original parts only for service. EVERPURE EVERDRI™...
- Page 21 EVERPURE EVERDRI™ COMPRESSED AIR SYSTEM INSTALLATION AND OPERATION GUIDE ®...
- Page 22 65.6768.5800 TEL • 65.6737.5149 FAX • CSEVERPURE@PENTAIR.COM EMAIL All Pentair trademarks and logos are owned by Pentair, Inc. or its affiliates. All other registered and unregistered trademarks and logos are the property of their respective owners. Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice.
