Riverside Liam 71132 Assembly Instructions

Riverside
email: info@riverside-furniture.com

Components and Hardware List

Leg Top
A B
1 pc.
Allen Head Bolt Allen Head Bolt
Ø6 x 40mm Ø6 x 60mm
H1 5 s. pc H2
Allen Key
Wood Screw
Ø 3.5 x 12 mm
4 x 110mm
(installed)
H7
H6 1 . pc
Step 1: Attach the Leg (A) to the Top(B) using two Allen Bolts (H1), Lock Washers (H4) and Flat
Washers (H5) to the middle rail of the top and two Allen Bolts (H2) and same washers through the
corner blocks and into the legs. As shown in Detail A and B.
H2
H4
H5
H6
DETAIL B
Step 2: Remove the two drawers from the
Return (C) and lay them aside.
Note: Place the Return back edge on a
clean, soft surface .
Return Desk
FURNITURE
Assembly Instructions
Return
1 pc.
Allen Head Bolt Lock Washer
Ø6 x 20mm Ø9 x Ø13mm
2 s. pc H3 2 s. pc H4
File Bar 13-3/4"
long (installed)
4 pcs.
H8
A
Liam
C
1 pc.
Flat Washer
Ø8 x Ø20mm
9 s. pc H5 9 s. pc
Figure 8
(installed)
4 pcs.
H9
2 pc.
DETAIL A
B
C
Made in Viet Nam
#71132

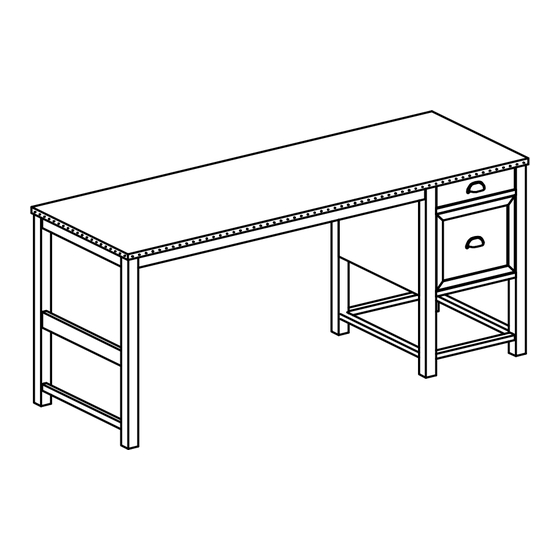

Return Desk
Be sure to check all packing material
carefully for small parts, which may
have come loose inside the carton
during shipment.
Page 1 of 2
H5
H4
H1
H6
