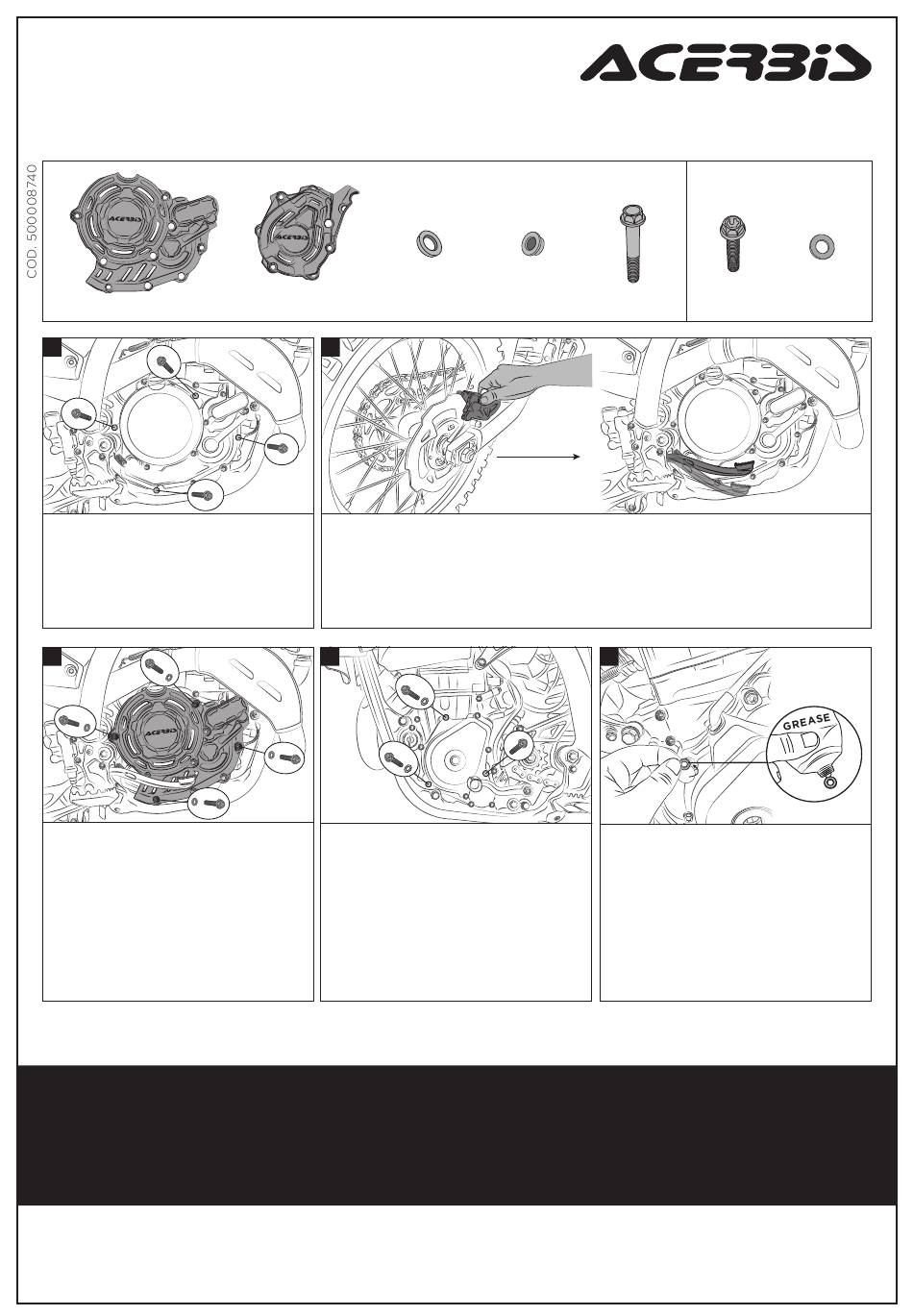

ACERBIS X-POWER SXF 450 23 Manual

clutch/ignition x-power sxf 450 23
protezione frizione/accensione x-power sxf 450 23
A - (1 pcs)
1
F
F
F
Remove the original screws (F) as shown
in figure.
Smontare le viti originali (F) come mostrato
in figura.
3
F
C
F C
A
F
C
Fix the X-Power clutch protection (A)
with the original screws (F) and bushings (C).
Closing torque as reported on the original
instructions manual of the bike.
Fissare la protezione frizione X-Power (A)
con le viti originali (F) e le boccole (C).
Coppia di chiusura come riportato sul
manuale originale della moto.
WARNING!
Use Acerbis' products at your own risk. Check the safety of your device before you ride. Be sure that you follow the instructions for installing the
Acerbis' products. Do not ride if there is missing or damaged hardware. If this is the case, take the item immediately back to your dealer. Make
sure the throttle and other controls are free every time you ride. Not following these instructions and warnings could lead to interference with the
controls, loss of control, and accidents. Acerbis recommends that installation must be done by a licensed mechanic and that only Acerbis' original
parts are used during installation. Acerbis makes no guarantees or representations, express or implied, regarding the fitment of its product for
any particular purpose. Acerbis makes no guarantees or representations, express or implied, regarding the extent to which its products protect
individuals or property from injury or death or damage.
EUROPE
ACERBIS ITALIA S.P.A.
VIA SERIO, 37
24021 ALBINO (BG)
ITALY
ACERBIS PARTS
B - (1 pcs) C - (5 pcs)
2
F
To simplify the X-Power mounting, push the brake caliper inward and widen the brake
pads, then push the brake pedal down. Finally, place the protection (A) on the engine casing.
Per facilitare il montaggio del X-Power, premere la pinza allargando le pastiglie e poi
abbassare il freno. Infine appoggiare la protezione (A) sul carter motore.
4
ORIGINAL
G
C
ORIGINAL
G
F
Remove the 2 original screws (indicated) and
the two relative washers (G). Disassemble
the third original screw (F).
Smontare le 2 viti originali (indicate) e le due
relative rondelle in rame (G). Smontatre la
terza vite originale (F).
U.S.A.
ACERBIS U.S.A. INC.
MAIL P.O. BOX 2030
SUN VALLEY, ID 83353
SHIP 110 LINDAY CIRCLE
KETCHUM, ID 83340
U.S.A.
D - (2 pcs) E - (2 pcs)
5
F
The washers (G) must be repositioned
on the carter: it is advisable to put on the
washers a small amount of grase, in so that
they can remain adherent to the carter.
Le rondelle (G) devono essere riposizionate
sul carter: si consiglia di apporre sulle
rondelle una piccola quantità di grasso, in
modo che possano rimanere aderenti al carter.
UNITED KINGDOM
ACERBIS U.K LTD
UNIT 2 LUTON ENTERPRISE PARK
SUNDON PARK ROAD
LUTON, BEDFORDSHIRE LU3 3GU
GREAT BRITAIN
OEM PARTS
F - (5 pcs) G - (2 pcs)
G
