ACERBIS TENERE 700 Quick Start Manual

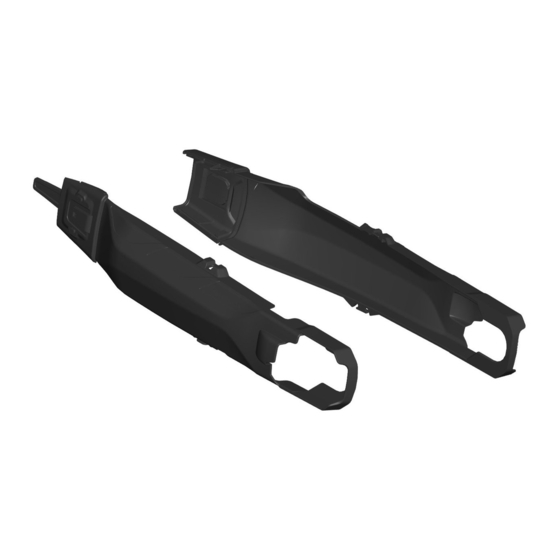

SWINGARM PROTECTIONS TEKET MAGNET
TENERE 700
PROTEZIONI FORCELLONI TEKET MAGNET
TENERE 700
A - (1 pcs)
B - (1 pcs)
1
C
E
E
Insert the plate (G) in the support (C) and
insert the zip ties (E) in their dedicated
spaces, as shown in figure.
Inserire la piastrina (G) nel supporto (C) e
infilare le fascette (E) negli appositi spazi
come indicato in figura.
4
D
E
Insert the plate (G) in the support (D) and
insert the zip ties (E) in their dedicated
spaces, as shown in figure.
Inserire la piastrina (G) nel supporto (D) e
infilare una fascetta (E) nell'apposito spazio
come indicato in figura.
WARNING!
Use Acerbis' products at your own risk. Check the safety of your device before you ride. Be sure that you follow the instructions for installing the
Acerbis' products. Do not ride if there is missing or damaged hardware. If this is the case, take the item immediately back to your dealer. Make
sure the throttle and other controls are free every time you ride. Not following these instructions and warnings could lead to interference with the
controls, loss of control, and accidents. Acerbis recommends that installation must be done by a licensed mechanic and that only Acerbis' original
parts are used during installation. Acerbis makes no guarantees or representations, express or implied, regarding the fitment of its product for
any particular purpose. Acerbis makes no guarantees or representations, express or implied, regarding the extent to which its products protect
individuals or property from injury or death or damage.
EUROPE
ACERBIS ITALIA S.P.A.
VIA SERIO, 37
24021 ALBINO (BG)
ITALY
ACERBIS PARTS
C - (1 pcs)
2
G
Place the support (C) and close the zip ties
(E) without tightening.
Posizionare il supporto (C) e chiudere le
fascette (E) senza stringerle.
5
G
D
Place the support (D), insert the zip ties (E)
as shown in fidure and close them without
tightening.
Sollevare il guidacatena per infilare le fascette
sulla parte superiore. Posizionare il supporto
(D) infilando le fascette (E) come in figura e
chiudere senza stringerle.
U.S.A.
ACERBIS U.S.A. INC.
MAIL P.O. BOX 2030
SUN VALLEY, ID 83353
SHIP 110 LINDAY CIRCLE
KETCHUM, ID 83340
U.S.A.
D - (1 pcs) E - (4 pcs)
3
E
C
Mount the fork protection (A) framing it with
the support (C) and tighten the zip ties (E).
Montare la protezione forcellone (A)
incastrandola con il supporto (C), e stringere
le fascette (E).
6
E
E
Mount the fork protection (B) framing it with
the support (D) and tighten the zip ties (E).
Montare la protezione forcellone (B)
incastrandola con il supporto (D) e stringere
le fascette (E).
UNITED KINGDOM
ACERBIS U.K LTD
UNIT 2 LUTON ENTERPRISE PARK
SUNDON PARK ROAD
LUTON, BEDFORDSHIRE LU3 3GU
GREAT BRITAIN
H - (1 pcs)
F - (2 pcs)
G - (2 pcs)
A
B
PG.1
