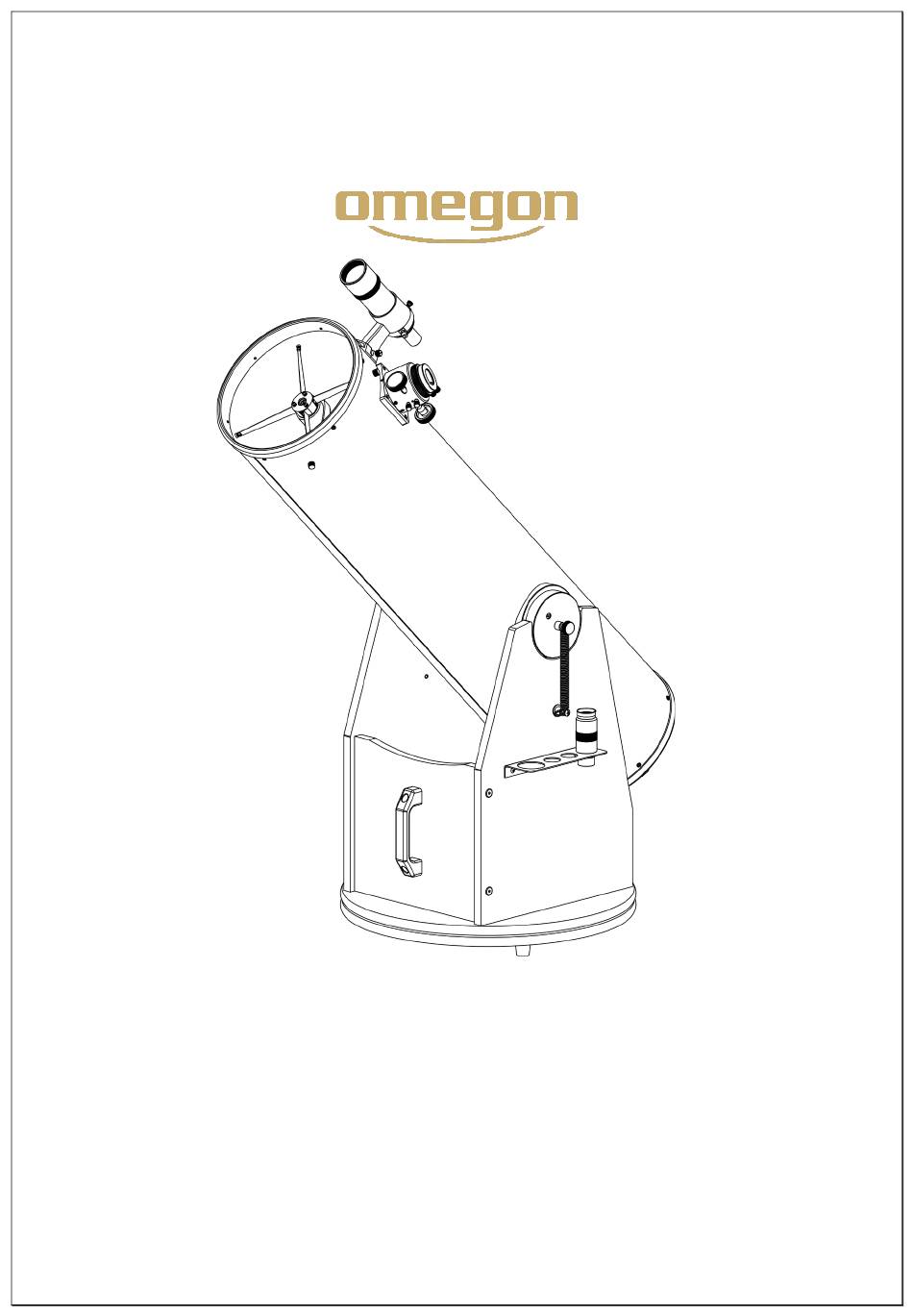

- Page 1 Instructions Manual Omegon® Advanced X 152 DOB Omegon® Advanced X 203 DOB Omegon® Advanced X 254 DOB Omegon® Advanced X 304 DOB English version 7.2023 Rev. B, Art.-Nr. 53802, 53803, 53804, 79799...
- Page 2 The Omegon® Advanced X Series Congratulations on the purchase of one of the new Omegon® Advanced X Series telescope. This telescope will give you hours of fun, with its optical precision polished mirrors and huge light gathering capability; it is the ideal companion for the beginner or intermediate amateur.
- Page 3 2.2. Step 2 – Fixing the Disc (top). Please use another 6x wood screws #10. Use the Allen wrench to tighten the screws. Please notice that the Disc (top) #1 has two sides. A side with circles cut in the wood’s surface to hide the screw heads.
- Page 4 2.5. Step 5 – Fixing the Disc (bottom) #2 to the pre-assembled wood parts. Please proceed as shown. The handknob allows adjusting pressure to the Teflon© pads increasing/decreasing friction. Did you know? The Hand knob adjusts the friction of the azimuth movement.
- Page 5 3.1. Installing the optical tube to the telescope base. The tube fits to the assembled base as shown. For convenient transportation, both tube and base should set apart after each observation. 3.2. Installing the side friction kit. To increase the friction on the tube bearings a system of tensioning springs is used.
- Page 6 Specifications 152/1200 203/1200 254/1250 304/1500 Aperture 152 mm 203 mm 254 mm 304 mm Focal length 1200 mm 1200 mm 1250 mm 1500 mm Focal ratio F/4,9 F/4,9 Finderscope 6 x 30 8 x 50 8 x 50 8 x 50 Focuser Crayford 2"...
