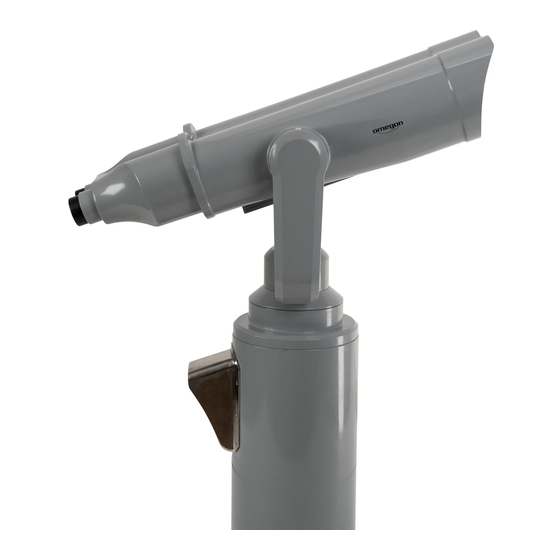

Omegon Bonview 20x100 Instruction Manual

New Instruction Manual for 53306

1.) Open the panel to the coin mechanism with the supplied Key.

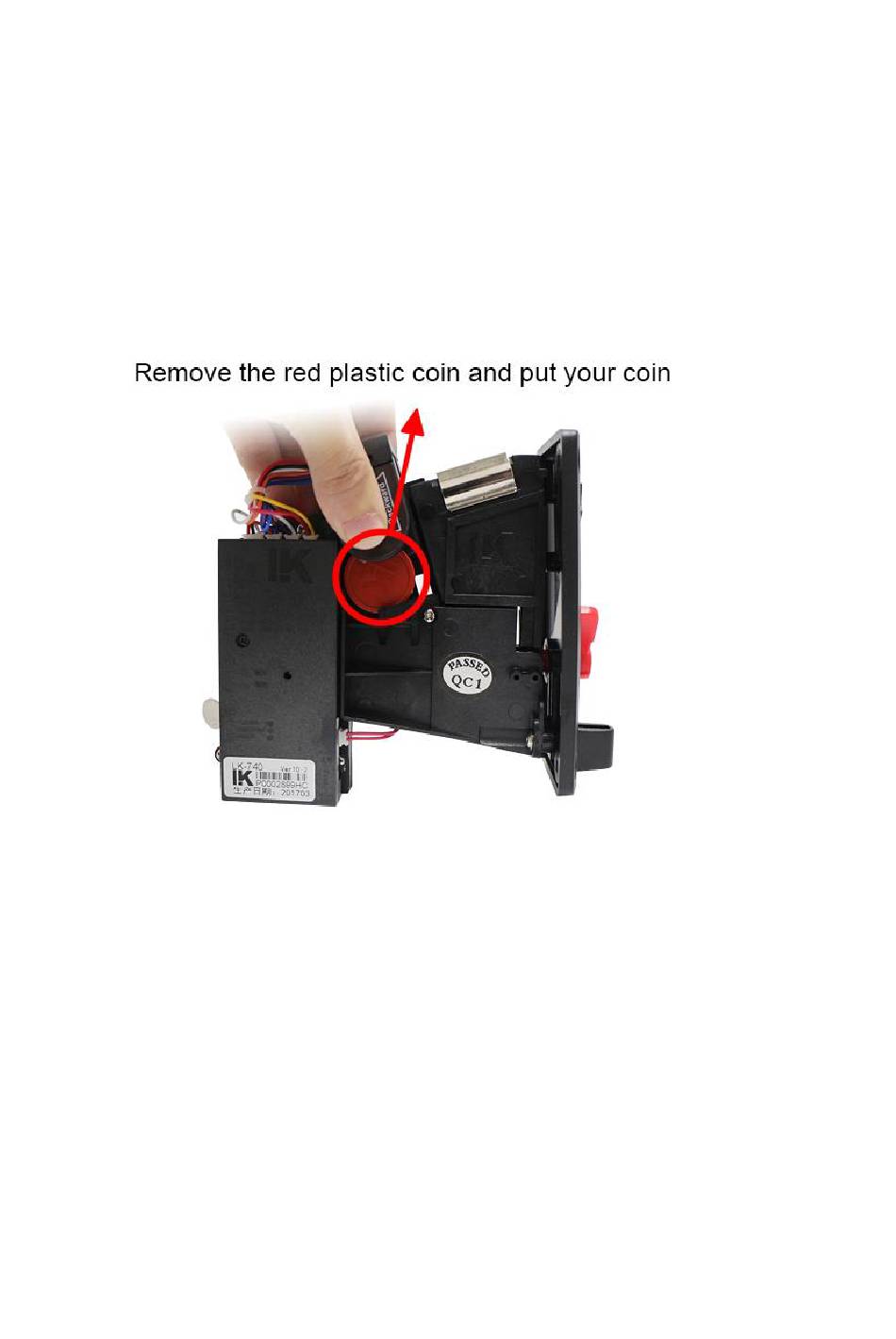

2.) Note the red plastic coin that is held by the mechanism.

3.) Slide back the holding mechanism and remove the red plastic coin.

4.) Insert a reference coin where the red plastic coin was before. The mechanism will then only

allow coins of the same kind.

The coin has to have a diameter 20 – 30 mm, and a thickness from 1.2 – 3.0 mm:

Underneath the coin mechanism, there is a loose cable to connect a power supply. There is

also an LCD number display and a keypad with 4 buttons:

5.) Connect a power supply or the supplied battery. The mechanism will beep.

6.) After connecting the power supply, the LCD display will show Pn01 for about 15 seconds. To

change any settings, press the UP or DOWN button. If no button is pressed after 15 seconds,

the display will show END and lock the current settings. Disconnect and Reconnect the power

supply to restart the process, if you want to change the settings again.

BACK

CONFIRM

DOWN

Table of Contents

Need help?

Do you have a question about the Bonview 20x100 and is the answer not in the manual?

Page 1 New Instruction Manual for 53306 1.) Open the panel to the coin mechanism with the supplied Key. 2.) Note the red plastic coin that is held by the mechanism. 3.) Slide back the holding mechanism and remove the red plastic coin. 4.) Insert a reference coin where the red plastic coin was before.
Page 2 7.) Changing the necessary number of coins: Use the UP or DOWN button to navigate to Pn02 and press the Confirm button. The display will now show the number of coins required to open the shutter. Change the number with the UP and DOWN buttons. The mechanism requires at least 1 coin.

53306
