Instruction Manual

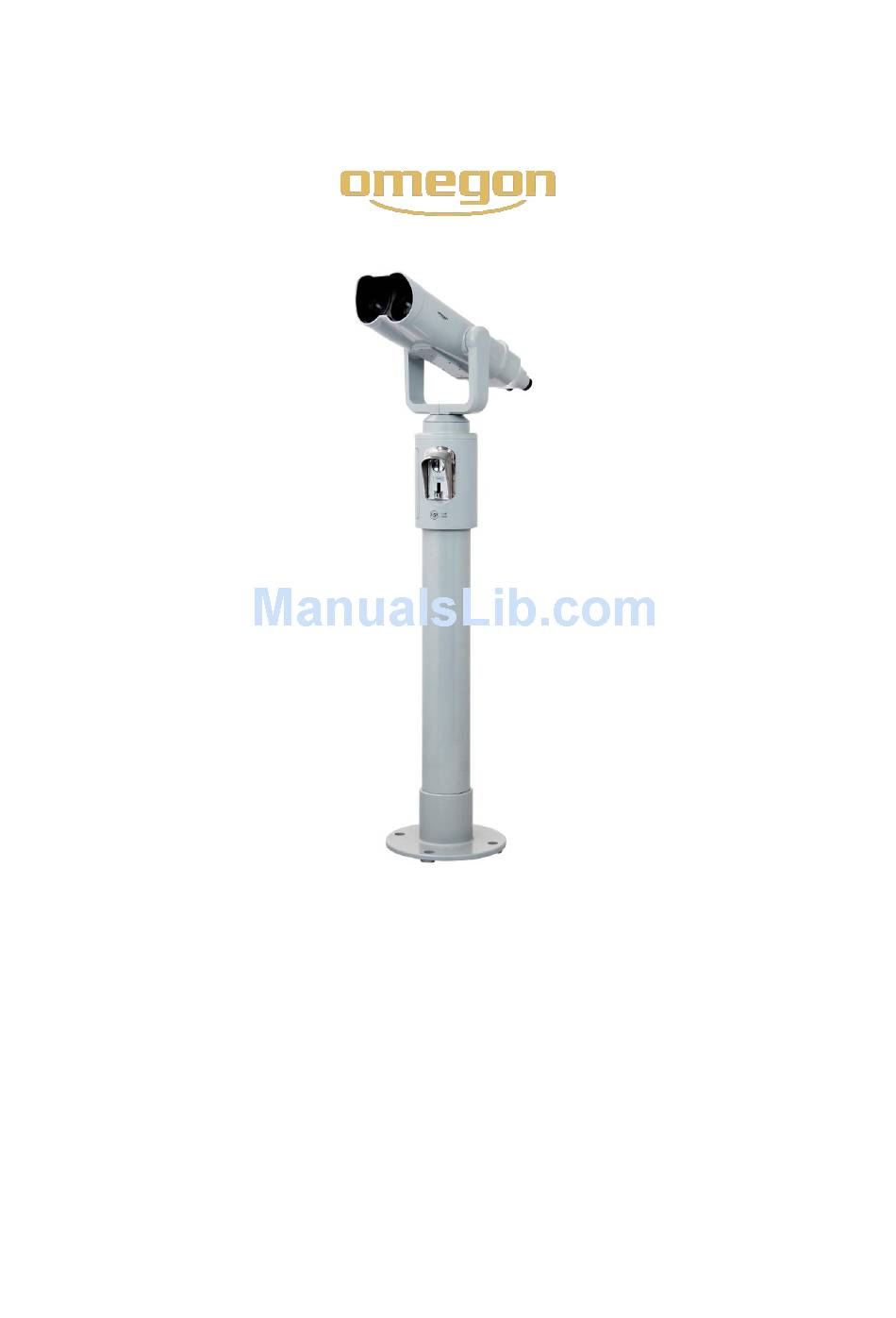

Omegon® Coin operated
Telescope Bonview 20x100
English Version 7.2017 Rev A #53306
Any total or partial reproduction of the contents outside the limits of private use is explicitly prohibited. All texts, pictures and figures are
property of Nimax GmbH
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Omegon 53306
Summary of Contents for Omegon 53306
- Page 1 Instruction Manual Omegon® Coin operated Telescope Bonview 20x100 English Version 7.2017 Rev A #53306 Any total or partial reproduction of the contents outside the limits of private use is explicitly prohibited. All texts, pictures and figures are property of Nimax GmbH...
- Page 2 53306 Omegon® Coin operated telescope Bonview 20x100 Thank you very much for your purchase of and using the Omegon® Coin operated telescope Bonview 20x100 Series High Power Stationary Telescope manufactured by our company. Please take time to read through this manual beforehand for the correct using of your telescope. And you may need to keep this manual at hand in case of further reference.
- Page 3 －0.5±0.25 Visibility Fixation Eye Distance 63mm Prism Type Composite Prism Prism Material Lens Number (binocular) 10 sets/ 14pieces Lens Materail K9、ZF2、ZF6、ZK10 curve of transmittance Light Transmittance of One Lens wavelength（nm） Main Structure Material ADC12、ZL102、LY12-CZ、HT200 Azimuth Rotation 300°（non-coin operated model: 360°） Range of Vertical Motion -45°～+65°(can stay anywhere within the range) Height from Eyepiece Center...
- Page 4 Shutter’s Service Life (number of ＞10 cycles) Shutter Duration 10～3600s/coin，10s/change Coin Diameter Requirement 18mm～29mm Coin Thickness Requirement 1.2mm～3.0mm ≤45 Number of Different Samples Coins Memorizable Power Save Mode Automatically Enter Hibernation in 1min’s idle Operating Temperature -20℃～+50℃ 4. Optical Configuration: Any total or partial reproduction of the contents outside the limits of private use is explicitly prohibited.
- Page 5 II. ASSEMBLY 1. The configuration of the Omegon® Coin operated telescope Bonview 20x100 Series Telescopes are shown in Figure 1. Figure 1 Please note that this is just a rough sketch. The 4 pcs screw #8 are inserted trough open #5 to connect the two main parts of the telescope 1.Telescope 2.Pier 3.Base 4.Coin Chute 5.Power Source Lock 6.Base Lock...
- Page 6 2. Setting-up Steps 1) Take components no.1, 2, 7 and 8 out of the carton. Put no.7 into the concave top of no.2 and then put no.1 on top of no.2. Unlock no.5 with the provided key (only for coin operated model) and rotate no.1 until the screw holes in no.1 align with those in no.2.
- Page 7 IV. TELESCOPE STORAGE & MAINTENANCE The Omegon® Coin operated telescope Bonview 20x100 Series High Power Stationary Telescopes contain precision optical instruments and their service lives are directly affected by the maintenance.
- Page 8 mirror) is clean. The optics should be cleaned aperiodically. Do not apply organic solvents to the optics lest antireflection coatings on the lenses will be damaged. 4. The optical tube may be difficult to set at a desired angle after a long service time. This is due to the unfastening of the two screws in the centers of component no.
