Instructions Manual
Omegon® N114/900 EQ-1
English version 9.2016 Rev A Art. Nr 11266

Advertisement

loading
Need help?

Need help?

Do you have a question about the N114/900 EQ-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Omegon N114/900 EQ-1

Summary of Contents for Omegon N114/900 EQ-1

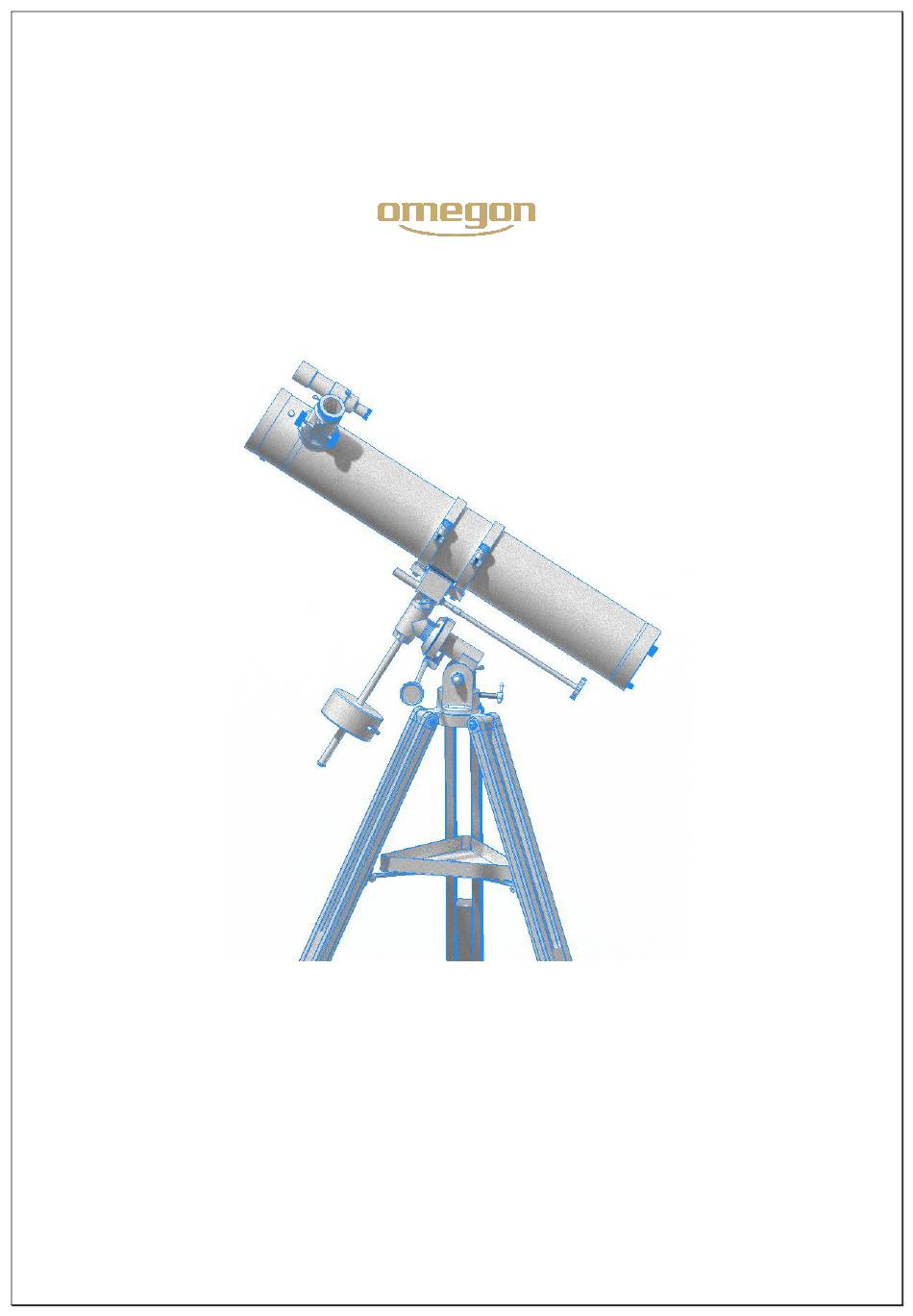

  • Page 1 Instructions Manual Omegon® N114/900 EQ-1 English version 9.2016 Rev A Art. Nr 11266...

  • Page 2: Included Parts

    The Omegon® N 114/900 EQ-1 Congratulations on the purchase of the new Omegon® N 114/900 EQ-1. This telescope will give you hours of fun, with its all optical mirror lens and light gathering capability; it is the ideal companion to start in the world of amateur astronomy.
  • Page 3 Figure 3. Tray placement. Figure 2. Tripod assembly. Figure 5. Thread the counter-weight shaft. Insert counterweight. Figure 4. Place equatorial head on top of tripod. Figure 7. Fix the tube’s ring. Figure 6. Fix Dec. and R.A. handles.
  • Page 4 Figure 8. Adjust Dec. axis. Figure 9. Tighten the side hand-knob. Figure 11. Balance the Dec. axis. Figure 10. Balance the R.A. axis with counterweight. 4. How to use the equatorial mount. The equatorial mount is a powerful tool for astronomical observation.
  • Page 5 Figure 15. Locking the R.A. axis. Figure 14. R.A. Axis. There are two axis in the eq. mount. One is the R.A. (Right Ascension) axis as shown in fig. 14. This means the telescope can rotate around this axis. The R.A. should point north to Polaris. Tracking (see what this is below) is made using the R.A.
  • Page 6 corrections to be made in each axis. However this is not the recommend procedure to track an object. The mount should be placed in station i.e. aligned in such a way that only the R.A. is required 4.2. How to set the mount in station. to turn to track a start.
  • Page 7 5. Aligning the Finderscope Figure A. A distant object is centered at the telescope’s field of view. In this example we have a house with a chimney. The chimney is the reference point to place at the center of the field of view. We first look through the telescope with the lowest magnification possible (H20mm should be preferrable).
  • Page 8 sharp image. This is especially important for reflector telescopes (that use mirrors). First let’s start by checking collimation. Look for a bright star in the evening sky and centre it in the eyepiece field of view. Some power is required to check alignment, make sure the star is focused. Now use the focuser knobs and rotate so that the star comes out of focus (defocused).
  • Page 9 The secondary mirror can be adjusted by using the 3 screws (figure 25). Releasing it can make the secondary mirror support to rotate. So make sure you only adjust a screw at a time to avoid it. The secondary mirror should always show up as a circle and not an ellipse.
  • Page 10 7. What can been seen with this telescope? Below you will find some examples of what you can expect to see when using this telescope. 7.1. The Moon is one of the most spectular objects to be seen through a telescope. Even a small telescope will reveal high detail of the Moon’s surface.
  • Page 11 8. Using the accessories, a bit of math 900���� to understand how all it works. = 36 ���������� 25���� Using the accessories is easy and fun. To This means that the K25mm eyepiece change magnification simply swap provides a 36x power (magnification). This eyepieces.
