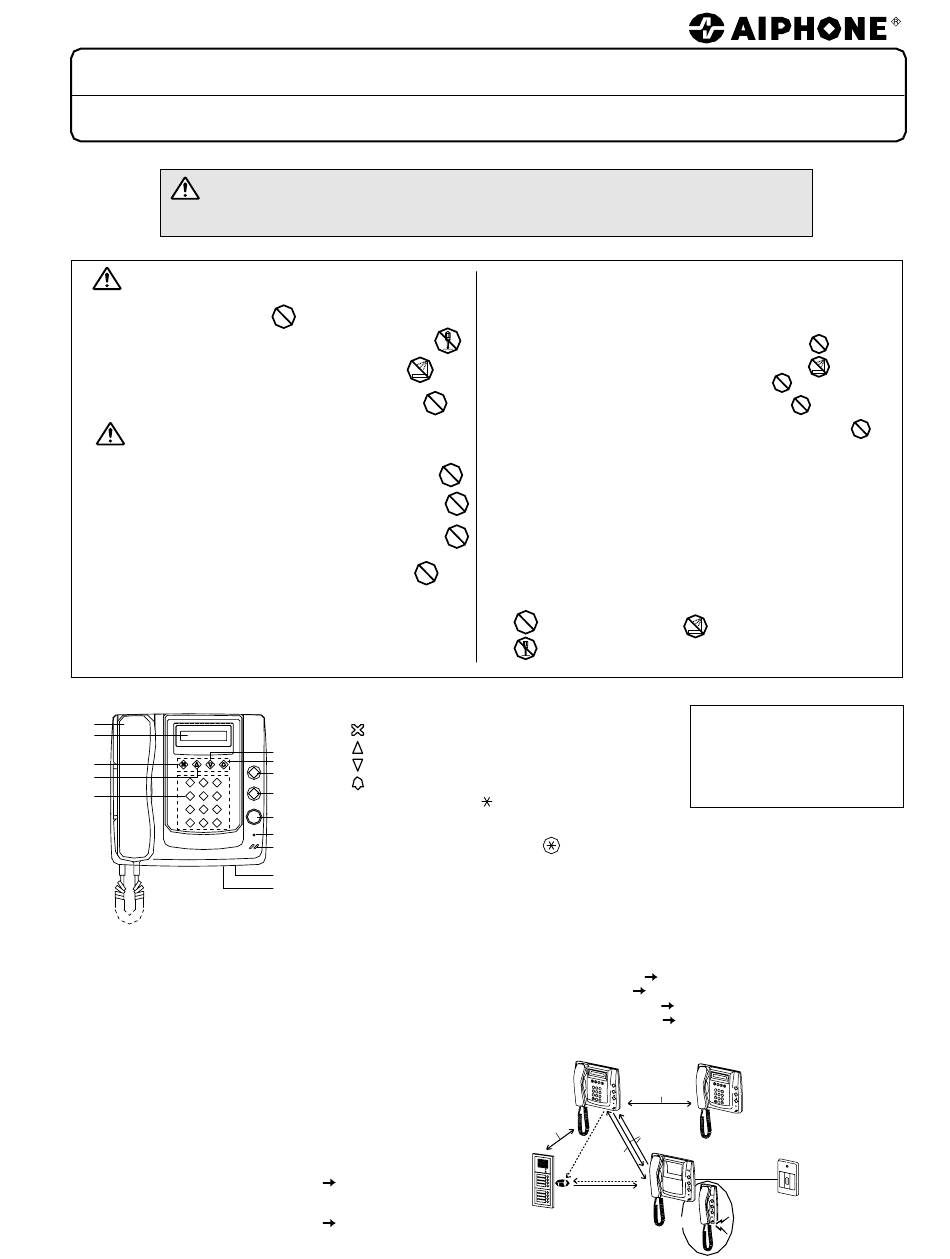

Aiphone GF-MK Installation & Operation Manual

Configure your GF Security Guard Station system with GF-MK-compatible components;
GF-1DK, GF-1MDK
GF-DA/ B
GF-NS/A
PRECAUTIONS
WARNING
(Negligence could result in death or serious
injury to people.)
1. Do not open the unit case.
2. Do not dismantle or alter the unit. Fire or electric shock
could results.
3. Keep the unit away from water or any other liquid.
Fire or electric shock could result.
4. Do not put any metal into the unit through openings.
Fire, electric shock or unit trouble could result.
CAUTION (Negligence could result in injury to people
or damage to property.)
1. Mount the unit on wall in a convenient location, but not
where it could be bumped or jarred.Injury could result.
2. Do not install or make any wire terminations while power
supply is turned on. Unit trouble could result.
3. Before turning on power supply, make sure wires are not
crossed or shorted. Unit trouble could result.
4. Do not manually hold down hook switch to verify chime
volume. It sounds very loud near your ears and can
cause your hearing damage.
5. Do not press hard or put high impact on LCD. If glass
cover is broken, you may be injured, and never touch the
liquid inside panel, as it can cause an inflammation on
your skin. If the liquid adheres to any part of your body,
mouth or eyes, immediately gargle or cleanse with clear
water for at least 15 minutes and consult your doctor.

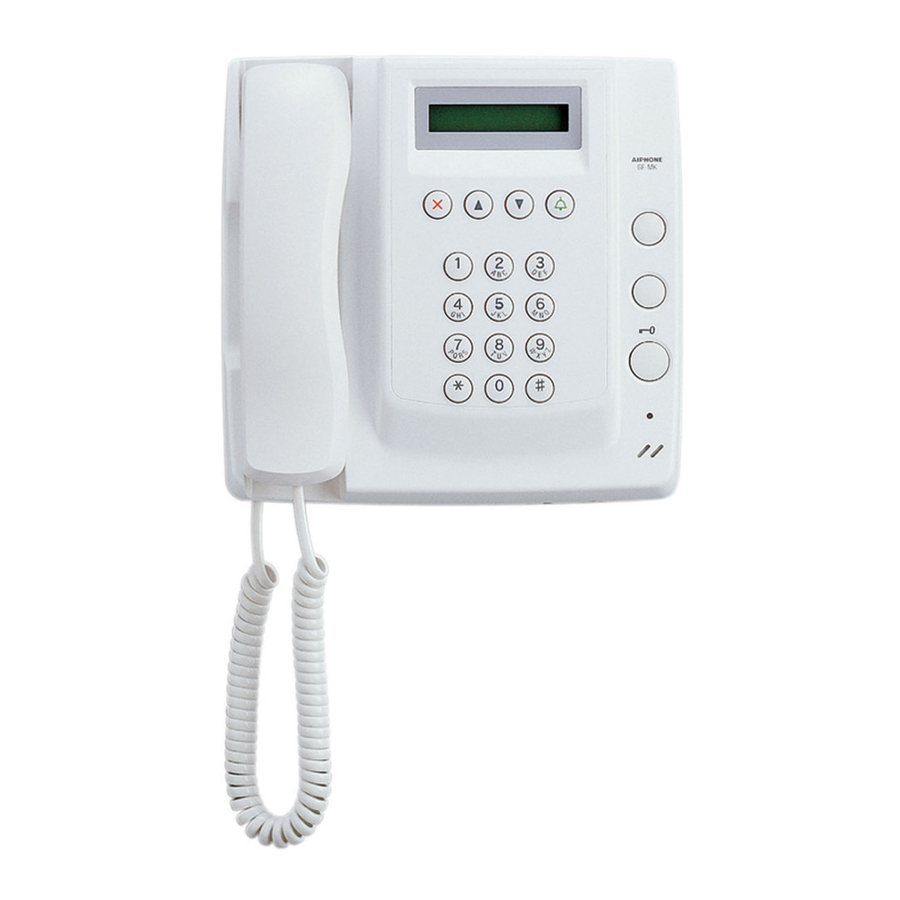

NAMES AND FUNCTIONS
1
2
3
4
7
GF-MK
PROGRAMMING METHODS
Programming by PC
¥ It is possible to write or change resident names
from your PC, making data input.
¥ Download Programming & Alteration Method
from Aiphone's
http://www.aiphone.com/
¥ Connect your PC with GF-MK in conjunction with
the connecting cable supplied with GF-MK.
Programming by GF-MK
¥ On LCD display, see a message "AIPHONE" to
confirm system is in standby.
¥ Prior to programming, it is suggested to have
your own ID code newly registered, so that any
other person cannot get into the system.
¥ Firstly, enter program mode.
¥ In case your programmed ID code is forgotten,
SECURITY GUARD STATION
Model:
INSTALLATION & OPERATION MANUAL
for Residential Stations (not GF-1D or GF-1MD),
for Audio module (not GF-DA/A), and
for Digital name scroll module (not GF-NS).
1. Handset
2. LCD display
3. (or decide & back)
CANCEL
4.
5
SCROLL backward
6
5.
8 SCROLL forward
6. (or decide & next)
CALL
9
7. Digital keypad (1 ~ 0, , #)
10
When entering letters;
Functions : ¥ Dialing Room #
11
¥ Name search with
12
8. SERVICE button (Option)
13
9. LIGHT button When communication with
Entrance Station, press to
14
turn on external light.
COMMUNICATION FUNCTIONS
Calling & Communication
Web Site:
Go to P.2
Go to P.8
FK0979 1002 B
GF-MK
6. Do not install the unit in any of the following locations, as
it may cause the system to malfunction;
- High or extreme cold temperature area: under direct sunlight,
near equipment that varies in temperature, in front of air
conditioner, inside a refrigerated area, etc.
- Places subject to moisture or humidity extremes.
- Places subject to environmental conditions,
such as oil, dust, chemicals, salt, etc.
- Places subject to constant vibration or impact.
- Places subject to steam or smoke, such as near heating
appliances, cooking surface, etc.
GENERAL PRECAUTIONS
1. All the units, except the Entrance Station, is designed for
indoor use only. Do not install them outdoors.
2. The system is not operable during a power failure.
3. In areas where broadcasting station antennas are close
by, intercom system may be affected by radio frequency
interference.
4. Keep all wiring at least 30cm (1") away from AC 100-240V
wiring, fluorescent lighting, or dimmer switches.
Otherwise, cross AC wiring at a 90¡ angle.
General Prohibitions
Prohibitions to
dismantle the unit
or move cursor to left
or move cursor to right
A ~ Z, 0 = [ , ] [ - ] [ . ] [ / ] [ ]
key and calling
a. with Residential Stations.
b. with Entrance Station.
c. with Security Guard Station.
d. PANIC call & Answer-back.
( Includes Line-off trouble alarm)
＊
Security Guard Stations 1 & 2
b
Entrance
Station
a
- 1 -
Prohibitions to subject
the unit to water
PACKAGE CONTENTS
¥ Security Guard Station (GF-MK)
¥ Mounting bracket
¥ Packet of screws
¥ Connecting cable
¥ INSTALLATION & OPERATION
MANUAL
10. DOOR RELEASE button
11. Off-hook warning LED
12. Call tone sounder
13. Call tone volume control
14. PC socket
Go to P.4
Go to P.5
Go to P.6
Go to P.6
c
d
Residential Stations
PANIC CALL
Switch
or
