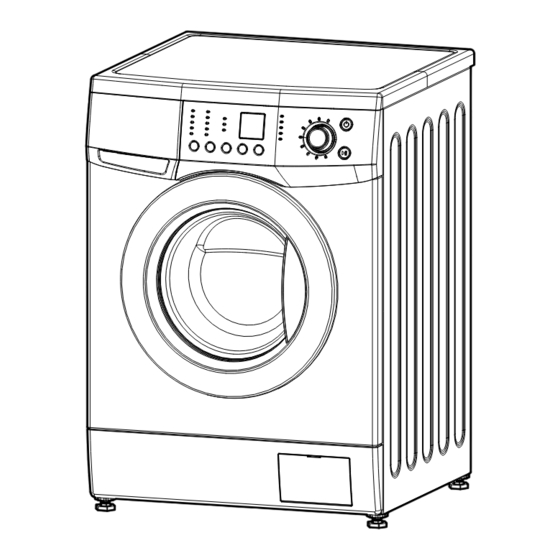

Washing Machine Instruction Manual
INSTRUCTION MANUAL
" Economic wash system
Using artificial intelligence, the washer uses minimum energy and
water by selecting optimal water level and washing time.
" Low noise system
The washing machine minimises the washing and spinning noises
by sensing the amount of laundry.
" Child-Lock
The Child-Lock system has been used to prevent children from pressing any buttons to change
the programme during operation.
CONTENTS
PARTS AND FEATURES.................................................................................................................2
WASHING MACHINE SAFETY........................................................................................................3
INSTALLATION INSTRUCTIONS ....................................................................................................4
INLET HOSE CONNECTION ...........................................................................................................5
ELECTRICAL REQUIREMENTS .....................................................................................................6
OPERATING YOUR WASHING MACHINE .....................................................................................7
THE FUNCTIONS OF THE CONTROL PANEL...............................................................................9
WASHING PROCEDURE AND PROGRAME SELECTION ..........................................................10
MAINTENANCE .............................................................................................................................19
HOW TO CLEAN THE FILTER ......................................................................................................20
REMOVING STAINS ......................................................................................................................21
TROUBLE SHOOTING ..................................................................................................................22
SPECIFICATION ............................................................................................................................23
A NOTE TO YOU
Thank you for buying a DAEWOO appliance.
DAEWOO washing machines are easy to use, save time, and help you manage your home better.
This manual contains valuable information about how to operate and maintain your machine properly and safely.
Please read it carefully.
DWD-FD1411
Page
Advertisement
Table of Contents
Related Manuals for DAEWOO ELECTRONICS DWD-FD1411
Summary of Contents for DAEWOO ELECTRONICS DWD-FD1411
-
Page 1: Table Of Contents
Washing Machine Instruction Manual DWD-FD1411 INSTRUCTION MANUAL " Economic wash system Using artificial intelligence, the washer uses minimum energy and water by selecting optimal water level and washing time. " Low noise system The washing machine minimises the washing and spinning noises by sensing the amount of laundry. -
Page 2: Parts And Features
PARTS AND FEATURES The parts and features of your washer are illustrated on the page. Become familiar with all parts and features before using your washer. NOTE The drawings in the book may vary from your model model. They are designed to show the different features of all models covered by this book, therefore your model may not include all the features that are available. -
Page 3: Washing Machine Safety
WASHING MACHINE SAFETY Save these instructions Your safety is important to us. To reduce the risk of fire, electrical shock, or injury when using your machine adhere to the following basic precautions. Read all instructions before using your machine • Flammable fluids (dry-cleaning solvents, etc) Please ... -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS Removing transit bolts 1. Before operating the washer, remove the 2. Unscrew the 3 bolts with the 10mm hex transit bolts(3ea) along with the rubber. wrench or spanner or cross-tip screwdriver. Keep the 3 bolts for a later time. •... -
Page 5: Inlet Hose Connection
INLET HOSE CONNECTION The machine should be connected to the water mains using the the new hose sets supplied. NEVER reuse old hoses. If using only one water tap or if there is only one water inlet valve, connect the inlet hose to the cold water inlet valve. -
Page 6: Electrical Requirements
ELECTRICAL REQUIREMENTS Electrical shock hazard : Failure to follow these instructions could result in WARNING death or serious injury. • An electrical earth is required on this machine • Don’t earth to a gas pipe. • If it does not fit the outlet, have a proper outlet •... -
Page 7: Operating Your Washing Machine
2 Adjust the level of the washing machine using the adjustable legs. • Please check if there is any gap between the four adjustable legs and the floor. • Turn the adjustable legs. adjust the level of the machine and make sure that is stable. Fixing Nut •... - Page 8 Sorting • Separate heavily soiled items from lightly soiled ones, even if they would normally be washed together. • Separate dark colours from light colours, colourfast items from non-colourfast items. Soil (Heavy, Normal, Light) Separate clothes according to amount of soil. Colour (White, Lights, Darks) Separate white clothes from coloured clothes.
-
Page 9: The Functions Of The Control Panel
THE FUNCTIONS OF THE CONTROL PANEL Press this switch to turn the power on or off. Operation and temporary stop is repeated as it is pressed. When you want to change program in operating; press the “Start/Hold” button # Select the program that you want to change # press the “Start/Hold”... -
Page 10: Washing Procedure And Programe Selection
WASHING PROCEDURE AND PROGRAMME SELECTION 1. COTTON IS AUTOMATICALLY SELECTED WHEN THE POWER BUTTON IS PRESSED. • Press the Power button to start. • Press the Start/Hold button • Initial cycle: - Programme : Cotton - Wash : main wash - Rinse : 3 times - Spin : 800 rpm - Water temperature : 40˚C... - Page 11 4. FUNCTION • Recommended programmes according to the laundry type Fabric Proper Maximum Programme Option Type Temp. Load First check if laundry is machine Pre Wash 60˚C washable.(white cotton, linen Rinse+ Rating (95˚C) towel and sheets..) Crease Care Cotton Colourfast garments 40˚C Pre Wash (shirts, night dresses, pyjamas..)
- Page 12 * COTTON PROGRAMME Put the laundry in to the drum. Then close the door. • In the detergent compartment, put the powder into the main wash and pre-wash sections. Softener should be be poured into the middle section of the compartment and be below the ‘MAX’...
- Page 13 * ECO PROGRAM Put the laundry in the drum. Then close the door. • In the detergent compartment, put the powder into the main wash and pre-wash sections. Softener should be poured into the middle section of the compartment and be below the ‘MAX’...
- Page 14 * SYNTHETIC PROGRAM Put the laundry in the drum. Then close the door. • In the detergent compartment, put the powder into the main wash and pre-wash sections. Softener should be poured into the middle section of the compartment and be below the ‘MAX’...
- Page 15 * DELICATE PROGRAM Put the laundry in the drum. Then close the door. • In the detergent compartment, put the powder into the main wash section. Softener should be poured into the middle section of the compartment and be below the ‘MAX’ level. •...
- Page 16 * WOOL PROGRAM Put the laundry in the drum. Then close the door. • In the detergent compartment, put the powder into the main wash section. Softener should be poured into the middle section of the compartment and be below the ‘MAX’ level. •...
- Page 17 * HAND WASH Put the laundry in the drum. Then close the door. • In the detergent compartment, put the powder into the main wash section. Softener should be poured into the middle section of the compartment and be below the ‘MAX’ level. •...
- Page 18 * QUICK 30 Put the laundry in the drum. Then close the door. • In the detergent compartment, put the powder into the main wash section. Softener should be poured into the middle section of the compartment and be below the ‘MAX’ level. •...
-
Page 19: Maintenance
MAINTENANCE Proper care of your washing machine can extend its life. This section explains how to care for your machine properly and safely. Cleaning your machine Exterior Interior Wipe up detergent, bleach, and other spills with Clean interior with 250ml of chlorine bleach a soft, damp cloth or sponge as they occur. -
Page 20: How To Clean The Filter
HOW TO CLEAN THE FILTER Cleaning the water inlet filter • Clean the filter when water leaks from the water inlet. 1 Pull the power 2 Turn off the water 3 Pull the inlet filter 4 Remove the dirt plug out before supply to the out. -
Page 21: Removing Stains
REMOVING STAINS Stained, heavily-soiled, or greasy items may need to be prewashed or soaked for best results. Soaking helps remove protein-type stains like blood, milk or grass. Prewashing helps loosen soil before washing. Stain removal rules • Use warm water for soaking or prewashing stained laundry. Hot water can set stains. •... -
Page 22: Trouble Shooting
TROUBLE SHOOTING Most problems are easily solved if you understand the cause. Check the following list for problem before calling for service. If the error mode such as IE, OE, UE were displayed on the control part, in order to solve these problem, first turn off the power of the washing machine and then turn on the power pressing Power button. -
Page 23: Specification
SPECIFICATION MODEL DWD-FD1411 Dimension (mm) 595 x 540 x 850 (W x D x H) Maximum mass of textile (kg) Unit Weight (kg) 58(Net) / 62(Gross) Standard Water Consumption 52" Spin Speed (RPM) 400/800/1000/1400 Operating Water Pressure 0.03MPa ~ 0.8MPa (0.3kgf/cm... - Page 24 English Português Eliminação de Equipamento Eléctrico e Disposal of Used Electrical & Electronic Equipment Electrónico Usado The meaning of the symbol on the product, its O símbolo no aparelho, nos seus acessórios ou na accessory or packaging indicates that this product shall embalagem indica que este aparelho não deve ser not be treated as household waste.
- Page 25 » » esky Italiano Trattamento del dispositivo elettrico od Likvidace pouû û it˝ ˝ ch elektrick˝ ˝ ch a elektronick˝ ˝ ch za¯ ¯ ízení elettronico a fine vita (Applicabile in tutti i paesi Tento symbol na v˝robku, jeho p¯ísluöenství nebo obalu dell’Unione Europea e in quelli con sistema di oznaËuje, ûe s tímto v˝robkem nesmí...
- Page 26 Svenska Dansk Omhändertagande av gamla elektriska och Håndtering af udtjente elektriske og elektroniske elektroniska produkter (Användbar i den produkter (Gælder for den Europæiske Union og Europeiska Unionen och andra Europeiska andre europæiske lande med separate länder med separata insamlingssystem) indsamlingssystemer) Symbolen på...
- Page 27 ABOUT THIS MANUAL ABOUT THIS MANUAL $ $ % % & & % % ' ' ( ( ! ) ) * * + + , , - - % % $ $ + + . . ! ! % % ( ( ) ) / / 01 234 567 89: ;<=>...
