※ This is

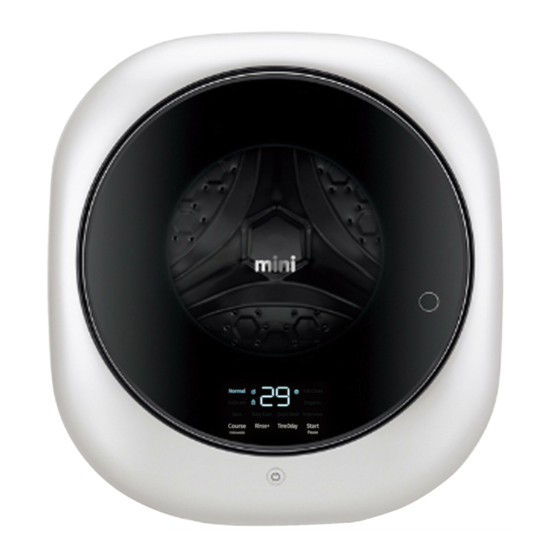

, the world's first wall-mounted drum washer developed by Daewoo Electronics.
•
The product has been performance-tested prior to shipping and may contain a small amount of water left over from that
testing.
•
Keep this user manual at a location where it will be easily accessible for all users of the product.
•
Read the Safety Precautions before use and follow all safety-related instructions when using the product.
DWD-CV703@_mini 3세대_washer_영문.indd 1
Wall-mounted Drum Washer
DWD-CV703*
2019-03-05 오후 4:16:22
Advertisement
Table of Contents
Related Manuals for DAEWOO ELECTRONICS mini DWD-CV703 Series
Summary of Contents for DAEWOO ELECTRONICS mini DWD-CV703 Series
- Page 1 Wall-mounted Drum Washer DWD-CV703* ※ This is , the world's first wall-mounted drum washer developed by Daewoo Electronics. • The product has been performance-tested prior to shipping and may contain a small amount of water left over from that testing.
- Page 2 A compact and adorable washer that combines the inherent strength and stability of a cube with colors that can complement any interior. Practical Functionality mini is the culmination of Daewoo Electronics’ unparalleled technical expertise and offers a complete range of essential features and functions for modern living.
-
Page 3: Table Of Contents
CONTENTS Getting Ready Product Features ................4 Safety Precautions ................5 Washing Safety Precautions ............10 Getting Ready ................... 11 Parts & Components ................. 12 Suitable for Washing ................. 13 Unsuitable for Washing ..............13 Preparing Laundry for Washing ............14 Adding Detergent and Fabric Softener .......... -
Page 4: Getting Ready Product Features
Product Features Safe, fast, and clean. Introducing mini's amazing abilities! Easy-Breezy Everyday Laundry Clean in Just 29 Minutes With mini, you don't have to let towels, dress shirts, mini's Normal course washes a load of underwear, socks, and other articles that require laundry in just 29 minutes while using only frequent washing pile up. -
Page 5: Safety Precautions
Safety Precautions Each safety precaution is indicated as either a warning or a caution. Improper use of the product in contradiction of these precautions is highly dangerous. Please remember to follow all safety precautions. Severe bodily harm, including death, Light or moderate injury and/or product is possible. - Page 6 Safety Precautions Warnings Use a dedicated outlet rated 10A or above. Sparks may fly and cause an explosion, fire, and/or burn. ● Using one outlet to power ● In the event of a gas leak, multiple devices and/or unplug the power cord and, appliances can generate an without touching the washer's excessive amount of heat and...
- Page 7 Safety Precautions Cautions Do not place your hand or a metallic object Do not try to force the door open while the underneath the washer while it is in operation. washer is in Locked Door state. ● May result in an injury. ●...
- Page 8 Safety Precautions Cautions Open the tap and ensure a flow before use. Do not allow pets and other living creatures inside the washer. ● Improper hose connection may ● May result in an injury. cause the water to leak. Do not operate the washer with the detergent Do not place a magnetic object near the door drawer or the softener drawer removed.
- Page 9 Safety Precautions Cautions Wipe off detergent and other contaminants When closing the door, make sure there is no on the surface of the product using a soft and article caught in the door jam. slightly damp piece of cloth. ● If left alone, the detergent or the ●...
-
Page 10: Washing Safety Precautions
Washing Safety Precautions Please familiarize yourself with the following safety precautions and remember to follow them whenever you use the washer. • Follow the instructions provided by the • Unsupervised or uninstructed individuals, manufacturers of the detergent and fabric softener individuals with a physical, sensory, or mental of your choosing and do not fill neither the disability, inexperienced or unknowing individuals,... -
Page 11: Getting Ready
Getting Ready Connect the drainage hose to the drain. Make sure the drainage hose has been included with your washer. ● A small amount of water may escape from the drainage hose when installing the ● washer or using it for the first time. This is water leftover from performance testing at the factory and does not represent a malfunction or defect of the product. -
Page 12: Parts & Components
Parts & Components Detergent Drawer Fabric-Softener Drawer Door Release • Power Cord • Cold Water Tap Drum Door (Do not open while the (Remember to close Control Panel (Touch) washer is in operation.) the tap after using the washer.) Accessories Elbow (X2) Drainage Hose Anchor Bolt(X4) -
Page 13: Suitable For Washing
Suitable for Washing Items that can be washed: • Underwear and socks • Dress shirts and cotton T-shirts • Bath towels, hand towels, pillowcases, dish towels, and rags • Baby clothes, diapers, and innerwear • Blouses, knits, and high-end clothes made out of wool •... -
Page 14: Preparing Laundry For Washing
Preparing Laundry for Washing Do not use the washer to wash, rinse, spin-dry, or dry waterproof or water- resistant mats, sheets, or clothes, hard and thick items like doormats and blankets, or items made out of a fabric water cannot easily pass through. •... -
Page 15: Adding Detergent And Fabric Softener
Adding Detergent and Fabric Softener (Use liquid detergents only. Do not use powdered detergents. May result in a leak and/or malfunction.) Detergent Drawer Fabric-Softener Drawer Drum Door (Do not open while the washer Control Panel is in operation.) (Touch) Open: ■... -
Page 16: Course Selection Guide
Detergent and Fabric Softener Precautions Highly concentrated detergents, gel detergents, and other types of liquid detergents that are prone to hardening and are highly viscous do not flow into the drum as easily and should be avoided. Highly concentrated fabric softeners may not flow into the drum at all and need to be diluted with water first. Detergent and fabric-softener drawers can become contaminated or covered in residue. -
Page 17: Using The Washer Buttons And Functions
Buttons and Functions ① Power ④ Start/Pause • Turns the washer on or off. • Press to start the selected course. • Press again to pause, once more to resume, and so on. • Pressing the Power button and then the Start/Pause button ②... -
Page 18: Normal
Normal Use this course to wash everyday items like towels, socks, and dress shirts and regular laundry. 1) Turn on the washer by pressing the Power button (①). 2) Open the drum door. Press the Door Release button (②) to open the drum door. 3) With the door open, place the laundry inside the washer, add detergent and fabric softener to their respective drawers, and then close the drum door shut. -
Page 19: Synthetic20°C
Synthetic 20°C Select the Synthetic 20°C Course for Polyamide, Acrylic, and Polyester. 1) Turn on the washer by pressing the Power button (①). 2) Open the drum door. Press the Door Release button (②) to open the drum door. 3) With the door open, place the laundry inside the washer, add detergent and fabric softener to their respective drawers, and then close the drum door shut. -
Page 20: Spin
Spin Use this course to spin your laundry dry without washing or rinsing. 1) Turn on the washer by pressing the Power button (①). 2) Open the drum door. Press the Door Release button (②) to open the drum door. 3) Once the door opens, place the laundry inside the washer and then close the door. -
Page 21: Baby Care
Baby Care Use this course to wash and disinfect baby clothes, 100% cotton articles, and any other type of garment that needs to be thoroughly sterilized. 1) Turn on the washer by pressing the Power button (①). 2) Open the drum door. Press the Door Release button (②) to open the drum door. -
Page 22: Intensive
Intensive Use this course to wash heavily soiled clothes. 1) Turn on the washer by pressing the Power button (①). 2) Open the drum door. Press the Door Release button (②) to open the drum door. 3) With the drum door open, place the laundry load inside the drum, add the detergent and the fabric softener to their respective drawers, and the close the drum door. -
Page 23: Cotton Eco 40/60°C
Cotton Eco 40/60°C Use this course for quick washing of small amounts of laundry. 1) Turn on the washer by pressing the Power button (①). 2) Open the drum door. Press the Door Release button (②) to open the drum door. 3) With the door open, place the laundry inside the washer, add detergent and fabric softener to their respective drawers, and then close the drum door shut. - Page 24 Cotton Eco 40/60°C Most efficient programs for cotton laundry The following programme are suitable for cleaning normally soiled cotton texiles and are the most efficient with respect to combined energy and water consumption. Energy Water Duration Program Load (kg) (kWh) (min) 0.41 60°C...
-
Page 25: Organic
Organic Select organic clothing program for organic material clothing (children's clothing, underwear, etc.) for washing. 1) Turn on the washer by pressing the Power button (①). 2) Open the drum door. Press the Door Release button (②) to open the drum door. 3) With the door open, place the laundry inside the washer, add detergent and fabric softener to their respective drawers, and then close the drum door shut. -
Page 26: Tub Clean
Tub Clean Select this course to wash and clean the washer's drum. 1) Turn on the washer by pressing the Power button (①). 2) Open the drum door. Press the Door Release button (②) to open the drum door. 3) Add powdered bleach into the drum. Use appropriate amounts of powdered bleach and drum detergent. -
Page 27: Time Delay
Time Delay Use this to set the preset function. Determine in how many hours from now you want to start laundry. 1) Turn on the power by pressing the Power button (①). 2) Open the drum door. Press the Drum Door Open button (②), and the drum door will open. 3) When the drum door is open, put the laundry in, and close the door. -
Page 28: Mini Faqs
mini FAQs These are the frequently asked questions about mini. Is it possible for the washer to freeze and break? A. A little bit of water may remain inside the water hose and/or the drum after finishing a wash. If the weather is cold enough, this leftover water can freeze. If this happens, resolve the issue as follows: - Wrap the water hose's connection points with a hot towel. - Page 29 mini FAQs These are the frequently asked questions about mini. How do you mount the washer on a wall? Is it safe and secure? A. The most important criterion when designing mini was its installation. We borrowed ideas from wall-mounted TVs and designed a system consisting of four anchor bolts inserted directly into the wall and lock nuts that securely hold the bolts in place.
-
Page 30: Cleaning
Cleaning Follow the instructions below to keep your washer clean and working reliably for a long time. ► Remember to unplug the power cord before cleaning the washer. - May result in an electric shock and/or injury. ► Do not spray water directly on the product. - May result in short-circuiting and/or an electric shock. -
Page 31: Troubleshooting
Troubleshooting ■ It's sometimes easy to mistaken an easily remediable issue for a malfunction. ■ If you are certain the product is malfunctioning, contact your retailer or the service center. Symptom Cause [1] There is a strange odor coming [1] This odor may be caused by a buildup of debris and waste detergent inside the drain. from the drum. -
Page 32: Before Contacting Customer Service
Before Contacting Customer Service ■ Press the button to pause the washer and then go through the following information. ■ To resume operation, press the button again Symptom/Display Checklist & Actions • Is the power cord securely plugged in? Nothing •... -
Page 33: Specifications & Wiring Diagram
Specifications & Wiring Diagram Type Wall-mounted drum washer External Dimensions 550(W) X 600(H) X 324(D) Weight 17.3 kg Power 230V / 50Hz Standard Load Capacity Wash: 3.0kg Operational Water Pressure 98.1kPa - 784kPa (1kgf/cm² - 8kgf/cm²) ※ Product specifications may change without notice for quality-improvement purposes. DWD-CV703@_mini 3세대_washer_영문.indd 33 2019-03-05 오후... - Page 34 PRODUCT FICHE Supplier : DAEWOO ELECTRONICS ■ Model : DWD-CV703W ■ Capacity : 3.0 kg ■ Energy efficiency class : A+++ ■ Energy consumption 86.12 kWh per year, based on 220 standard washing cycles for cotton ■ programmes at 60 °C and 40 °C at full and partial load, and the consumption of the low- power modes.
- Page 35 Wall-mounted Drum Washer The customer may be billed for outcalls concerning problems caused by improper use and/or installation. Please remember to read the user manual. DWD-CV703@_mini 3세대_washer_영문.indd 35 2019-03-05 오후 4:16:55...
