Summary of Contents for Uniden BTS1200

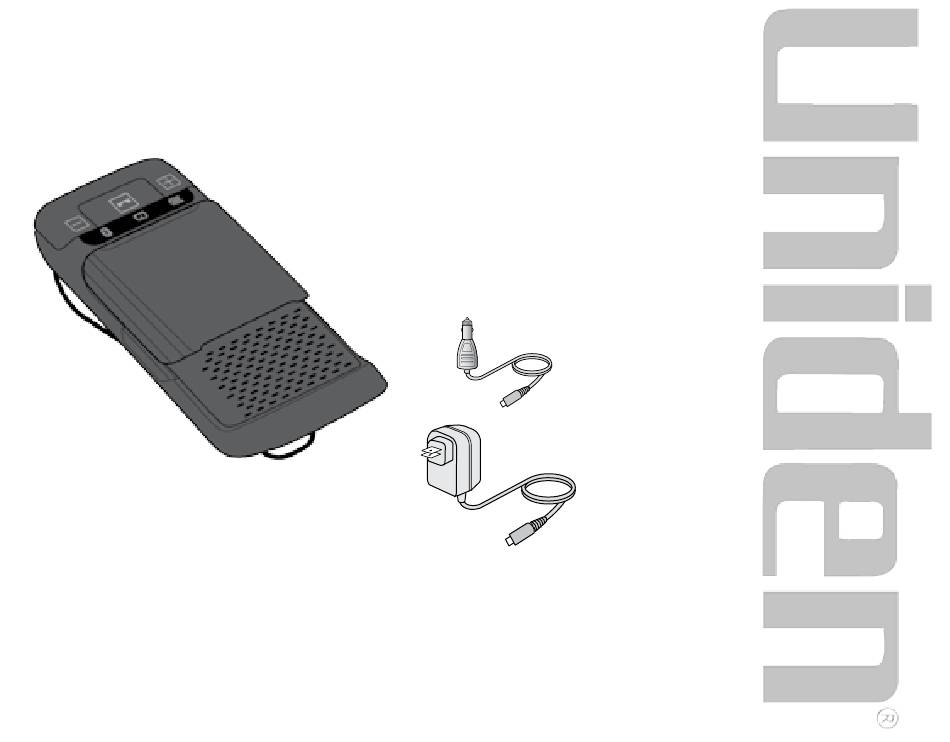

- Page 1 BTS1200 Bluetooth Travel Kit User’s Guide Also in this package: DC (travel) Power Adapter AC (indoor) Power Adapter Questions? Problems? Get help on the web at www.uniden.com or call our Customer Service line at 800-292-2294.
-
Page 2: Table Of Contents
ConTenTS GettinG to Know the travel Kit ........4 Status Icons ....................5 Bluetooth Icon Indications ..............5 Audible Indications ..................6 Using the Buttons ..................7 Multifunction ( ) .............7 Volume Up ( + ) ................7 Volume Down ( - ) ...............8 Special Function ................8 SettinG Up YoUr travel Kit ..........9 Charge the Battery .................. - Page 3 Calls ..............15 BTS1200 Common Tasks ................15 SpeCial FeatUreS ..............17 Call Waiting ....................17 Voice Dial .....................18 Using the Travel Kit With Two Phones (Multipoint) ......19 Incoming Calls .................19 Outgoing Calls .................20 reSettinG YoUr travel Kit ..........20 Cleaning the travel kit ................21 troUbleShootinG and MaintenanCe .......22...
-
Page 4: Getting To Know The Travel Kit
GeTTinG To Know The Travel KiT Multifunction Volume Down Volume Up Charging Port Sliding Switch Status (Power On/Off) Icons Special Function Visor clip... -
Page 5: Status Icons
STaTUS iConS icon name what it means Bluetooth Indicates Bluetooth status. Battery Shows charging status. Power Icon lights if power is on. BlUeTooTh iCon indiCaTionS icon indication Meaning Blinks 3 times. Power On Blinks repeatedly. Pairing Mode Blinks once every 5 seconds. Connectable mode... -
Page 6: Audible Indications
icon indication Meaning Blinks twice every 5 seconds. Connected mode While calling/ Blinks 3 times every 5 seconds. during a call aUdiBle indiCaTionS indication Meaning Turn-on melody Power on 2 short beeps When connected Melody Incoming call 2 rising beeps Active call 2 falling beeps Ending call... -
Page 7: Using The Buttons
USinG The BUTTonS Multifunction ( Multifunction to redial the last number Press and release (while in standby), answer the call (while a call is ringing) or hang up (while on a call). Multifunction for 2 seconds to reject the Press and hold ... -
Page 8: Volume Down ( - )
Press and hold Volume Up for 3 seconds to put the current call on hold and switch to a waiting call (while on a call). volume down ( - ) Volume Down to decrease the volume Press and release ... -
Page 9: Setting Up Your Travel Kit
Press and release the Special Function key to mute the microphone. The travel kit beeps every 10 seconds while in Mute mode. Press the Side button again to release mute. NOTE: The buttons only activate the function when you release them. SeTTinG Up YoUr Travel KiT CharGe The BaTTerY Before using your travel kit, charge the battery for... - Page 10 You can charge the battery through the car’s power outlet or through a 12 ~ 2V DC outlet. Both charging adapters are included with your travel kit and both adapters plug into the travel kit’s side charging port. Connect either adapter to the power connector on the side of the unit.
-
Page 11: Pair The Kit To Your Bluetooth Phone
CAUTION! Use ONLY the power adapter supplied with the travel kit. Using any other adapter could damage your travel kit, create a fire hazard, or cause a risk of electric shock! pair The KiT To YoUr BlUeTooTh phone Pairing “introduces” two Bluetooth devices and gives them permission to connect to each other. - Page 12 Your phone should discover a device called a BTS1200 or Handsfree device. When your phone asks if you want to pair with this device, answer yes. If your phone prompts you for a PIN code or password to pair with the BTS1200, enter 0000 .
- Page 13 If your phone asks if you want to change the travel kit’s name, you should only change the name if you have more than one BTS1200 that you use with this phone. Most phones connect to the travel kit as soon as you pair them;...
-
Page 14: After The Travel Kit Is Paired
after the Travel Kit is paired Each time you turn the travel kit on, it automatically connects to whatever device it was connected to last. If the travel kit loses the connection (e.g., if your phone is out of range), it should reconnect automatically when it detects the phone again. -
Page 15: Making And Receiving Calls
Multifunction for 2 seconds to manually send the call to the travel kit. answering Calls Press Multifunction while the call is ringing. BTS1200 CoMMon TaSKS Multifunction . Hang up a call. On a call, press Reject a call. Press and hold Multifunction (about 2 ... - Page 16 Mute the microphone. To mute the microphone so the caller can’t hear you, press the SIDE button. While the microphone is muted, the travel kit beeps every 10 seconds as a reminder. To turn the microphone back on, press SIDE again. Transfer a call between the phone and travel kit.
-
Page 17: Special Features
SpeCial FeaTUreS Call waiTinG When another call comes in while you’re on the phone, the travel kit sounds a tone. To put your current call on hold and switch to the Volume Up about 3 seconds. waiting call, press and hold Release the button and you’ll be connected to the Volume Up again (about 3 waiting call. -
Page 18: Voice Dial
NOTE: To use this feature, you must subscribe to Call Waiting through your service provider and your phone must support the hands-free profile. voiCe dial If you have a compatible phone for voice dialing, you can speak a name or number and the travel kit will dial it. -
Page 19: Using The Travel Kit With Two Phones (Multipoint)
USinG The Travel KiT wiTh Two phoneS (MUlTipoinT) You can connect your travel kit to two mobile phones. Just pair the travel kit to the first phone following the instructions on page 4. When the first phone is successfully paired, pair the travel kit to the second phone. -
Page 20: Outgoing Calls
the duration of the call. When you hang up, the travel kit automatically reconnects to the other phone. All the button functions remain the same for the first phone (the one you paired first). Multifunction as usual. To answer the incoming call, press outgoing Calls To use Last Number Redial on the second phone, ... -
Page 21: Cleaning The Travel Kit
Disconnect the travel kit from the mobile phone. Press and hold Volume Down and Volume Up about seconds. NOTE: Resetting the travel kit deletes all saved information; this information can’t be recovered. CleaninG The Travel KiT Generally, wiping the travel kit with a dry cloth is all the cleaning it needs. -
Page 22: Troubleshooting And Maintenance
TroUBleShooTinG and MainTenanCe If you have problems with the travel kit, see the suggestions in the following table. If these don’t help, contact customer support (see the front cover for contact information). if... Try... The travel kit Charging the battery completely. won’t turn on. - Page 23 if... Try... Making sure your phone is in pairing mode. Check your phone’s manual for instructions on Bluetooth device pairing. The travel kit Turning the travel kit off. Wait at least won’t pair with 10 seconds, then turn the travel kit on my phone.
-
Page 24: General Information
if... Try... Turning the speaker volume up. I can hear the Moving closer to your phone (if you caller, but the aren’t carrying it). audio is very Keeping the battery fully charged. (As weak or soft. the battery power starts to run out, the speaker will get softer.) The travel kit You need to charge the battery. -
Page 25: Battery Life
Bluetooth wireless devices have a maximum range of 30 feet (10 m); the actual range will vary depending on current conditions (obstacles, battery power, interference, etc.). The travel kit can be connected only to devices that support the Bluetooth travel kit or hands-free profile. This product is not compatible with standard cordless phones. -
Page 26: Noise Or Static On The Travel Kit
Noise or Static on the Travel Kit Interference is the most common cause of noise or static on wireless devices. Bluetooth devices operate in the ISM band (2.402 GHz ~ 2.480 GHz); any equipment operating in this frequency range might interfere with the travel kit. Some common interference sources in this range are: Wireless LAN equipment or WiFi connections ... -
Page 27: Safety And Handling Information
If it doesn’t, check around for things that might interfere with your phone. Safety and Handling Information Uniden America Corporation DOES NOT represent this product to be waterproof. To reduce the risk of fire, electrical shock, or damage to the product, DO NOT expose this product to rain or moisture. - Page 28 Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. Use only the power cord and batteries indicated in this ...
-
Page 29: Fcc Notice
Turn off your travel kit when pumping gas, handling flammable materials, or in any area with a risk of explosion. In rare occurrences, this product could generate sparks which can cause an explosion or fire. Follow all warning notices in your immediate area! SAVE THESE INSTRUCTIONS! FCC Notice This device complies with part 15 of the FCC rules. - Page 30 FCC’s exposure criteria. For body worn operation, the FCC RF exposure guidelines were also met when used with the Uniden accessories supplied or designed for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines and should be avoided.
-
Page 31: Lithium-Polymer Battery Information
WARRANTOR: UNIDEN AMERICA CORPORATION (“Uniden”) ELEMENTS OF WARRANTY: Uniden warrants, for two years, to the original retail owner, this Uniden Product to be free from defects in materials and craftsmanship with only the limitations or exclusions set out below. - Page 32 Uniden service center for a defect or malfunction covered by this warranty, e) used in any conjunction with equipment or parts or as part of any system not manufactured by Uniden, or f) installed or programmed by anyone other than as detailed by the owner’s manual for this product.
- Page 33 incurred by warrantor or its representatives in connection with the performance of this warranty. Warrantor, at its option, may replace the unit with a new or refurbished unit. THE LIMITED WARRANTY SET FORTH ABOVE IS THE SOLE AND ENTIRE WARRANTY PERTAINING TO THE PRODUCT AND IS IN LIEU OF AND EXCLUDES ALL OTHER WARRANTIES OF ANY NATURE WHATSOEVER, WHETHER EXPRESS, IMPLIED OR ARISING BY OPERATION OF LAW, INCLUDING, BUT NOT...
- Page 34 Product. Include evidence of original purchase and a note describing the defect that has caused you to return it. The Product should be shipped freight prepaid, by traceable means, to warrantor at: Uniden America Service 4700 Amon Carter Blvd. Fort Worth, TX 76155...
- Page 36 © 2009 Uniden America Corp. Ft. Worth, Texas...
