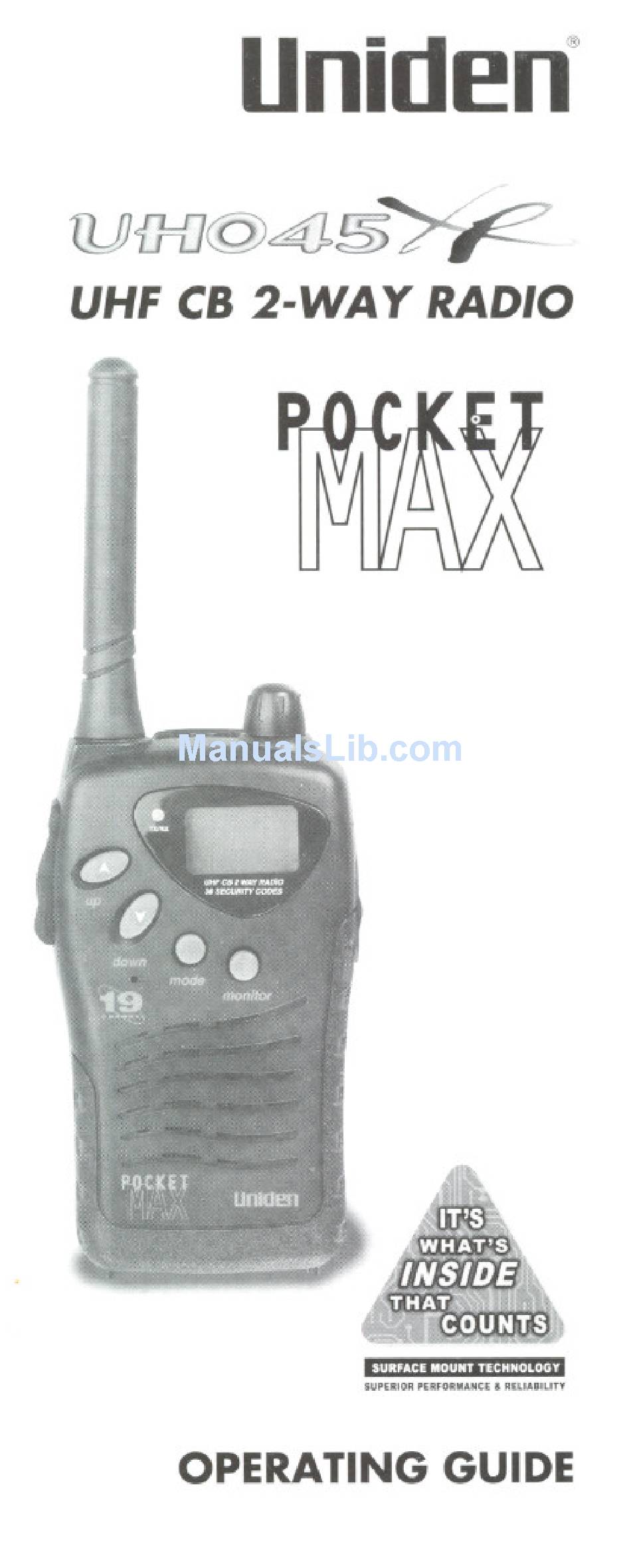

- Page 1 Unid~n. £» {J=f](Q) c4iJ 2-WAY UHF CB RADIO SURFACE MOUNTTECHNOLOGY SUPERIOR PERFORMANCE' RELIABILITY OPERATING GUIDE...
-
Page 2: Important Safety I Nformation
Using Alkaline Batteries Do not charge the Alkaline batteries in this equipment. Charging them will damage the UH-O45XRand/or cause the battery to explode. Uniden@ is a registered trademark of Uniden Corporation. Features, Specifications availability Optional Accessories are all subject to change without notice. -
Page 3: Table Of Contents
CONTENTS IMPORTANT SAFETY I NFORMATION..2 CONTENTS INCLUDEDIN YOUR PACKAGE..4 INTRODUCTION FEATURES CONTROLS & INDICATORS... .6 BATTERY INSTAllATION. . -
Page 4: Includedin Your Package
UHO45XR Antenna Batteries Belt Clip & Wrist Strap Unid~n '.Jf"'<:>",,"~F """""WAY""'" Registration Card Registration Card Manual Operating NOTE: If any items are missing or damaged, please contact your place of purchase immediately. -
Page 5: Introduction
INTRODUCTION Congratulations on your purchase of the Uniden UHO45XR Pocket Max. This 19 Channel personal 2-Way Radio represents a great value in professional portable communications. You will find that it provides reliable, consistent performance for short distance 2-Way personal communications. -
Page 6: Controls & Indicators
Speaker Battery Cover Latch (located on the rear side) *Note: Optional speaker microphone, headset and charger are available from your local Uniden dealer. Battery Compartment Houses four "AAA" batteries lincluded). BatteryCoverlatch Secures the battery cover in place. BeltClip A belt clip is included to secure the radio to a belt or any other convenient location. - Page 7 Battery Level! Spk Mic/Headset Keylock Low Battery Connection Symbol Symbol Indicator LCD Display A multifunctional display which shows channel, privacy codes, and other radio status icons. NOTE: Optional speaker microphone, headset microphone and charger are available from your local Uniden dealers.
-
Page 8: Batteryinstallation
BATTERYINSTALLATION. 1. Release the battery cover latch located on the rear of the unit. (See Figure 1). Liftup the battery cover from the battery compartment. Install four "AAA" type batteries following the polarities shown in Figure 2. Reinstall the battery cover. Lock the battery cover latch into position (See Figure 3). -
Page 9: Charging The Uh045Xr Batteries
You can use rechargeable batteries on the UH045XR. DO NOT ATTEMPT TO CHARGE ANY OTHER TYPE OF BATTERY EXCEPT RECHARGEABLE ONES. CHARG- ING STANDARD ALKALINE BATTERIES CAN CAUSE EXPLOSION AND FIRE RESULTING IN DAMAGE AND/OR INJURY. To Charge the Batteries 1. -
Page 10: Beltcllp
-, " 'BELT CLIP Installing the belt clip: 1. Slide the belt clip into place in the belt clip slot as shown in figure 4. 2. Ensure that the clip locks in place by listening for a "click", the belt clip: Removing 1. - Page 11 OPERATION' . C. Receiving a call The unit is continuously in receive mode when the unit is turned ON. When you receive a call, the TXjRXLED will light up green and the Receive icon will be dis- played. Transmitting a call 1.
-
Page 12: Specialfeatures
SPECIAL FEATURES ,..,.' Privacy codes (CTCSS) The privacy code option allows you to hear only specific users, effectively blocking out unwanted calls from other users on the same channel you are using. There are 38 CTCSS codes to choose from on each channel. - Page 13 .SPECIAL FEATURES. Key Lock This feature prevents accidental entries. Key Lock temporarily disables the UP, DOWN and MODE keys when turned ON. To turn Key LockON, press the MODE and MONITOR keys at the same time until the Key Lock Icon appears on the display.
-
Page 14: Option Settings
OPTION SEnlNGS Time Out Timer (TOT) ,-", . ,-., =-,-, --L'Lt -Lt , -1- Lt This option limits the maximum transmission time (in minutes) to conserve battery power. Factory default is set to toO(disabled). 1. Turn off the radio. 2. Press and hold the MODE button while turning ON the radio. -
Page 15: Uhfcb Channel Table
""""- CTCSS CHANNELS FREQ (MHz) 476.425 476.450 476.475 476.500 476.525 476.550 476.575 476.600 476.625 476.650 476.675 476.700 476.725 476.750 4Z6.7Z5 476.800 476.825 476.850 476.875 FREQ CODE FREQ CODE 67.0 131.8 71.9 136.5 74.4 141.3 77.0 146.2 79.7 151.4 82.5 156.7 85.4 162.2 88.5... -
Page 16: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION Does . Check batteries.Ensurethat the turn on batteries are installed properly. The batteries may be weak. Replaceold batteries with four new 11 A AA" batteries. SW/ON-OFF Turn VOL knob Reception is weak clockwise to increase volume. The receiving signal may be weak and out of range. -
Page 17: Specifications
SPECIFICATIONS GENERAL Frequency Control Phase L ocked L oop (PLL) 476.425MHz t o Frequency Range 476.875MHz Numberof Channels 25 kHz ChannelSpacing 0 C to55 C OperatingTemperature PowerSource Size (H x D x W! in mm 103H x 33 Dx 53 W (withoutAntenna) 165g(withBattery) Weight [with Batteries) -
Page 18: Warranty
(B) Modified, altered or used as part of any conversion kits, subassemblies, or any configurations not sold by Uniden, (C) Improperly installed, (D) Repaired by someone other than an authorised Uniden Repair Agent for a defect or... - Page 19 Ph: 0-9-273 Fax: 0-9-2740009 Toll Free: 0800 4 U N I DEN 4864336 Customers in other areas should ship or deliver the Product freight pre-paid to their nearest Uniden Authorised Repair Centre. (Contact Uniden for the nearest Warranty Agent to you)
- Page 20 Unid~n. Communication WithVision UNIDEN "1999 01999 UnidenAnstralia Ply Lilnited Uniden NewZealand Lilnited All Rights Reserved.
