Audio Technica ATW-C3300 User Manual

User Manual
Thank you for purchasing this product. Before using the product, read through the user manual to
ensure that you will use the product correctly.
Please keep this manual for future reference.
■ Features
• Exceptional performance for exceptional performers
• Same element as the classic AT4033 studio microphone offering extreme clarity and realism
• Well-tempered polar pattern with outstanding rejection qualities
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation
of desired sound source
• Multi-stage grille design offers excellent protection against plosives and sibilance without
compromising high-frequency clarity
■ Notes on use
• Do not directly touch or scratch the contact surface.
• When installing/removing the product, be sure to turn the power off the transmitter.
• When installing the product, do not forcibly install the product with strong force. The product
may be damaged.
■ Safety precaution
Although this product was designed to be used safely, failing to use it correctly may result in an
accident. To ensure safety, observe all warnings and cautions while using the product.
■Cautions for the product
• Do not subject the product to strong impact to avoid malfunction.
• Do not disassemble, modify or attempt to repair the product.
• Do not handle the product with wet hands to avoid electric shock or injury.
• Do not store the product under direct sunlight, near heating devices or in a hot, humid or dusty
place.

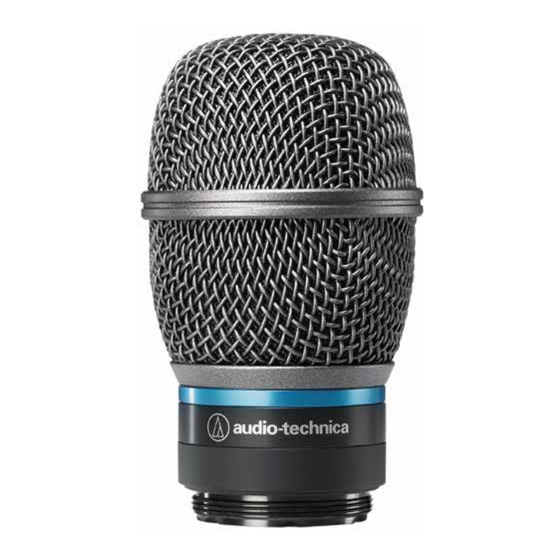

Interchangeable Cardioid Condenser Microphone Capsule ATW-C3300
■ Installing/removing the product
■How to install
■How to install
■ Specifications
Polar pattern
Frequency Response
Open Circuit Sensitivity
Maximum Input Sound Level
* Performance varies with a transmitter connected
For product improvement, the product is sublect to modification without notice.
■Polar pattern
330°
300°
270°
240°
210°
180°
SCALE IS 5 DECIBELS PER DIVISION
■Dimensions
85
Audio-Technica Corporation
2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan
©2017 Audio-Technica Corporation
Global Support Contact: www.at-globalsupport.com
(1)
(2)
(1)
(2)
Element Fixed-change back plate permanently polarized condenser
Cardioid
30 - 18,000 Hz *
-42 dB (7.9 mV) re 1V at 1 Pa *
147 dB SPL, 1 kHz at 1% T.H.D. *
Weight 142 g
0°
30°
60°
90°
LEGEND
120°
200 Hz
1 kHz
5 kHz
150° 8 kHz
Ø50
Ø37
(Unit: mm)
16-MAR--2023 Form No.ATGC-L0423-23
