Page 5: Introduction
WELCOME TO THE WONDERFUL WORLD OF AIRBORNE ULTRASOUND INSPECTION Congratulations, you are about to experience the ultimate in airborne/structure borne ultrasonic inspection. Your Ultraprobe 10000 is equipped with features that will help you inspect in the most challenging environment. 1. INTRODUCTION Your Ultraprobe 10000 is a versatile instrument with many features that will make your inspections easy, fast and accurate. -
Page 6: Plug-In Modules
Trisonic Scanning Module PLUG-IN MODULES TRISONIC SCANNING MODULE: This module is utilized to receive air-borne ultrasound such as the ultrasounds emitted by pressure/vacuum leaks and electrical discharges. There are four prongs at the rear of the module. For placement, align the prongs with the four corresponding jacks in the front end of the pistol housing and plug in. -
Page 7: Rubber Focusing Probe
RUBBER FOCUSING PROBE: The Rubber Focusing Probe is a cone-shaped rubber shield. It is used to block out stray ultrasound and to assist in narrowing the field of reception of the “Trisonic" Scanning Module. STETHOSCOPE EXTENSION KIT This consists of three metal rods that will enable a user to reach up to 31 additional inches (78.7 cm) with the Stethoscope Probe. -
Page 8: Bch-Wtg2
UE-POD: Battery Recharge Pod docking station for charging Ultraprobe Batteries (Lithium Ion only). This optional pod will charge a battery that has been removed from the Ultraprobe 10,000 and is also used to charge extra batteries. BCH-WTG2: This is an optional battery charger for use with all Warble Tone Generators. The line input is 220 VAC @ 50Hz and the charging time is about 8 hours. -
Page 9: Overview

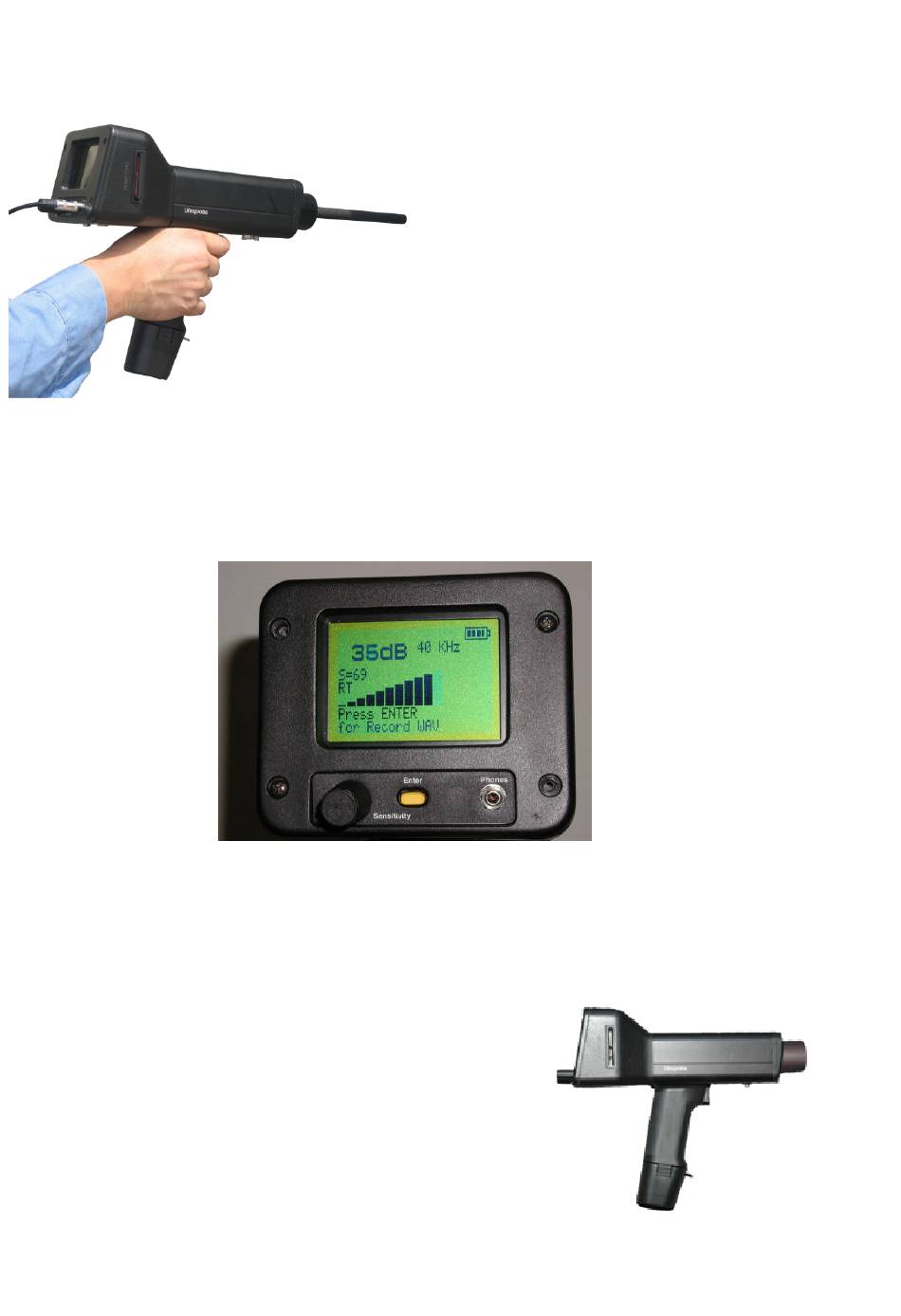

4. OVERVIEW A. PISTOL-GRIP HOUSING DISPLAY PANEL: In the Operation Mode the Display Panel will show inspection parameters such as intensity levels (as dB and as a bar graph), Frequency, Battery Level, Sensitivity Level, Sensitivity Value, “Display Mode” and Function Select Field. Intensity levels are shown simultaneously as a numeric dB value and on a sixteen segmented bar graph (with each segment representing 3 dB). -
Page 10: Line Input
LINE INPUT This Input is designed to receive signals from other instruments such as Temperature readings from infrared thermometers. The Instrument will display the readings on the Display Panel. QUICK CHANGE BATTERY: To insert the battery, align the battery with the handle (arrow pointing towards the trigger) and push in until the clips snap in place. To remove the battery, push firmly on the battery clips with the fingers of one hand while holding your other hand under the handle to catch the released battery. -
Page 11: User Instructions
3. The LED remains solid when the battery is charged. The instrument may stay connected to the charger without damaging the battery. Charge time is approximately 4 hours. WARNING: Use the supplied UE Systems recharger (BCH-10L) only. Use of unauthorized rechargers will void the warranty and may degrade or damage the battery. -
Page 12: Warble Tone Generator
WARBLE TONE GENERATOR (UE-WTG-1): Turn Tone Generator on by selecting either "LOW" for a low amplitude signal (usually recommended for small containers) or "HIGH" for high amplitude. In the High position, the Warble Tone Generator will cover up to 4,000 cubic feet (113.3 cu. meters) of unobstructed space. -
Page 13: Operational Overview
6. OPERATIONAL OVERVIEW The Ultraprobe 10000 is an ultrasonic inspection information, storage, sound event recording and retrieval system in a pistol housing. There are two modes that are important to understand: OPERATION MODE The operation mode will be described in detail under the operation mode section. In this mode you will perform all inspection actions such as scanning, probing, “Click and Spin”... -
Page 14: Bargraph Display
Setup Menu : The various screen and operation functions can be set in this mode Text Editor (ON/OFF): When on text notations can be set using up to 16 alphanumeric characters. Alarm (DISABLED ENABLED): Set (enable) alarm levels in dB or turn the alarm off (disable). GENERIC Info: This function provides inspection information. -
Page 15: Function Field Description
FUNCTION FIELD DESCRIPTION a. SETUP MENU : The various screen and operation functions can be set in this mode b. TEXT EDITOR (ON/OFF): When on text notations can be set using up to 16 alphanumeric characters. c. ALARM (DISABLED ENABLED): Set (enable) alarm levels in dB or turn the alarm off (disable). d. -
Page 16: Storage Display Information
e. RECORD WAV: The Ultraprobe 10000 is configured to record heterodyned ultrasounds with this function setting. f. CF INFO (Compact Flash): Information of stored recorded WAV files and record time can be viewed here. g. STORE REC: Use this function to store inspection data. This is a quick way to data log if inspection data is to be saved without viewing previously stored data (as in Storage Display). -
Page 17: Entering A Test Condition In Storage Display
HOW TO USE THE OPERATIONAL FEATURES ENTERING A TEST CONDITION IN STORAGE DISPLAY Spin to Test, the condition default is OK and will blink slowly. If it is necessary to change the test condition: Click with the Sensitivity Control Dial and the condition (OK) will blink rapidly. Spin to select a condition indication. -
Page 18: Alarm Enable/Disable
ALARM ENABLE/DISABLE While in the Operation mode, this function selection will display Alarm Disabled if no alarm level has been set. If an alarm level has been set, it will show the set level in dB. To enable the alarm, see ALARM ENABLE/DISABLE in the SETUP MODE below. -
Page 19: Cf Info
CF INFO This feature allows you to view file names stored on the Compact Flash Card. When a sound is recorded and a WAV file is saved, two files are written to the Compact Flash Card: a text file which contains all stored record fields for the specific record number associated with the WAV file and the WAV file. -
Page 20: Overview Of Setup Mode
OVERVIEW OF SETUP MODE There are 35 functions that can be set to either change the display screens or the format of data entry and collection. Data Transfer Set Turn Off Time Display Screens Set WAV Sample Rate Application Select Display Response Module type select Communication Flow Control... -
Page 21: Menu 02 Display Screen
To Transfer data from the CF card: 1. Spin to CF Output 2. CF OUTPUT will blink 3. Click the Sensitivity Dial to transfer data from the Ultraprobe to the CF Card 4. Turn the Ultraprobe 10000 off 5. Remove the CF Card 6. -
Page 22: Menu 04 Module Type Select
Menu 04: Module Type Select Your reports can reflect the module used for your inspection. You can choose: SCM (Scanning Module), STM (Stethoscope Module), UWC (The Parabolic Dish) CFM (Close Focus Module), LRM (Long Range Module) or OTH (Other). To select a Module Type: 1. -
Page 23: Menu 09 Select Function List
Menu 09 Select Function List The items selected from the function list will be displayed on the Function Bar of the Main Display panel or on the Storage Display during operation modes. You can select all or none. Be advised that if Setup Mode is turned off, when you return to the operation mode, it will not be displayed on the function bar. -
Page 24: Menu 13 User Sensitivity Default
Text Editor = ON Alarm = Disabled Module Type Select = SCM Display Response = Medium Sensitivity Mode = Manual Headphone Volume = 99% Turnoff Time = 5 Seconds Shutoff Mode = Timed The user defined Default Settings can be: User Sensitivity Default (see Setup Menu 13) User Frequency (see Setup Menu 14) Frequency Adjust (see Setup Menu 15) -
Page 25: Menu 16 Restore Lists
4. Spin to YES or NO 5. Click to set 6. Press the Yellow ENTER button to exit. Menu 16: Restore Lists Selecting Restore Lists resets inspection codes to original factory set codes listed in Ultratrend DMS and in the Ultraprobe 10,000. This change will effect only the current information stored locally on the Ultraprobe and can be changed again when downloaded to Ultratrend DMS. -
Page 26: Menu 21 Comm Flow Control
Menu 21: Comm Flow Control Off On Note: If you’re not using hardware handshaking flow control, keep this option OFF. 1. Follow the steps to Enter the Setup Mode as described earlier. 2. Spin to Menu 21: Comm Flow Control Comm Flow Control Comm Flow Control 3. -
Page 27: Menu 24 Headphone Volume
7. Press the Yellow ENTER button to exit. Menu 24: Headphone Volume (Volume= 99%) or lower Here you can set the comfort level of the headphone volume. The setting can range from 00 to 99% of the volume. To select the volume level of your headphones: 1. -
Page 28: Menu 28 Cal Due Date
Menu 28: Cal Due Date Shown as Cal Due Date in the menu, this date is set at the factory and displays the recommended Recalibration/service date. This is one mode that cannot be changed by a user. It is only set at the factory after a service has been performed. NOTE: This information cannot be changed by the user. -
Page 29: Menu 32 Db Offset Value
Enter the Setup Mode Spin to dB Scale Select (Menu 31 blinks). Click in the Sensitivity Control Dial. Spin the Sensitivity Control Dial to the desired scale (Relative or Offset). Click the Sensitivity Control Dial to set. Press the Yellow ENTER button to exit. Menu Select dB Scale Select... -
Page 30: Menu 35 Back
Menu 35: BACK This changes the Setup screen back to the 1 level (Menus 1-11) In order to Exit to Program, you must be in the first level of the Setup Mode. Press (Click) the Yellow ENTER button and you will exit to Operations Mode. 8. -
Page 31: Bearings
ABCD Display FIELD ENTRY LIST FOR VALVES: 42 dB 25 kHz Test Results selection: OK/CHK/TR1 to TR6 002 Rec TYPE selection: GTE/BLL/BFY/GLB/NDL/SFR/BYPAOV/OTH S=60 A: 0dB C: 0dB NOTE: If Storage Display is selected the ABCD Screen will not be seen. B: 0dB D: 0dB However, the Parameters Information function can be used to input data... -
Page 32: Steam
If Parameter Info has been selected in the Storage Display function, the identical data and data entry as described above will be shown. Additional information such as date, time, module used and a command for data storage will be shown in the MORE function. FIELD ENTRY LIST FOR ELECTRICAL: TEST RESULTS: COR/TRK/ARC/PD/MEC VOLTAGE: 120V-750 KV... -
Page 33: Leaks
FIELD ENTRY LIST FOR STEAM: Test Results: OK/LEK/BLW/NIS/PLG/SIZ/OTH Man: SAR/ARM/BES/NIC/ Model: MDLO to MDL9 App: SM/AH/RAD/HE/TR/ Type: IB/TD/TH/FT/ PIPE DIA: 1/16, 1/8, ¼, 3/8, 1/2, ¾, 1.00, 1.25, 1.50, 2.00, 2.50, 3.00, 3.50, 4 up to 36 in. ORIFICE SIZE 1/32, 1/16, 3/32, 1/8, 5/32, 3/16, 7/32, ¼, 9/32, 10/32, 11/32, 3/8, 13/32 F. -
Page 34: General Applications
APPENDIX I GENERAL APPLICATIONS 1. LEAK DETECTION This section will cover airborne leak detection of pressure and vacuum systems. (For information concerned with internal leaks such as in Valves and Steam Traps, refer to the appropriate sections). What produces ultrasound in a leak? When a gas passes through a restricted orifice under pressure, it is going from a pressurized laminar flow to low pressure turbulent flow. - Page 35 What type of gas leak will be detected ultrasonically? Generally any gas, including air, will produce a turbulence when it escapes through a restricted orifice. Unlike gas specific sensors, the Ultraprobe is sound specific. A gas specific sensor is limited to the particular gas it was designed to sense (e.g., helium).
- Page 36 1 . Build up the pressure (if possible) to create greater turbulence. 2.Utilize LIQUID LEAK AMPLIFIER. This patented method incorporates a UE Systems product called LIQUID LEAK AMPLIFIER, or LLA for short. LLA is a uniquely formulated liquid substance that has special chemical properties. Used as an ultra sonic "bubble test, a small amount of LLA is applied to a suspected leak site, It produces a thin film through...
-
Page 37: Ultratone Tm
UE SYSTEMS provides a variety of optional Warble Tone Generators. They are: 1. WTG2SP Warble Pipe Tone Generator with a 1” male threaded nipple to adapt to various pipe fittings. It is used to test areas where the standard Tone Generators cannot be place such as in small pipes, sealed tanks or heat exchangers (see page 7 optional accessories, WTG-2SP). -
Page 38: Electric Arc, Corona, Tracking Detection
TRANSFORMERS, SWITCHGEAR AND OTHER ELECTRICAL APPARATUS E. ELECTRIC ARC, CORONA, TRACKING DETECTION There are three basic electrical problems that are detected with the Ultraprobe 10000: Arcing: An arc occurs when electricity is conducted to “ground”. This is over a high current pathway. Lightning is a good example. -
Page 39: Monitoring Bearing Wear
Another accessory is the LRM Long Range Module which also increases the detection distance of the Ultraprobe. The basic difference is that the LRM is a one-hand operation but has a slightly wider detection area (10 ) versus the UWC (5 2. -
Page 40: Detecting Bearing Failure
DETECTING BEARING FAILURE There are two basic procedures of testing for bearing problems: Comparative and Historical Methods . The Comparative Method involves testing two or more similar bearings and "comparing" potential differences. Historical Method testing requires monitoring a specific bearing over a period of time to establish its history. By analyzing bearing history, wear patterns at particular ultrasonic frequencies become obvious, which allows for early detection and correction of bearing problems. -
Page 41: Over Lubrication
Over-Lubrication: One of the most common causes of bearing failure is over-lubrication. The excess pressure of the lubricant often breaks, or “pops” bearing seals or causes a build-up of heat, which can create stress and deformity. To avoid over-lubrication: 1. Don't lubricate if the base line reading and base line sound quality is maintained. 2. -
Page 42: Locating Faulty Steam Traps
PROCEDURE: 1. Select key locations to be monitored and make permanent reference marks for future testing 2. Follow steps 1-2 as outlined above in the General Mechanical Trouble Shooting section. 3. Select a frequency for the test. 4. Save by hitting Yellow Enter button (refer to Operation Mode: Yellow Enter Button for description). NOTE: In diagnosing any type of mechanical equipment, it is important to understand how that equipment operates. -
Page 43: Inverted Bucket, Float & Thermostatic, Thermodynamic And Thermostatic
This will be heard as a constant rushing sound. NOTE: A complimentary Steam Trap Trouble Shooting Guide is available. Contact UE Systems directly by phone or fax. -
Page 44: Inspecting Valves
5. LOCATING FAULTY VALVES: Utilizing the Contact (Stethoscope) Module in the Ultraprobe, valves can easily be monitored to determine if a valve is operating properly. As a liquid or gas flows through a pipe, there is little or no turbulence generated except at bends or obstacles. In the case of a leaking valve, the escaping liquid or gas will move from a high to a low pressure area, creating turbulence on the low pressure or "downstream"... -
Page 45: Abcd Method
b. Touch the upstream side, valve seat, downstream sides (as described above) and compare differences. ABCD METHOD The ABCD method is recommended to check for the potential of competing ultrasounds downstream that may carry back to the area of inspection and give a false indication of a valve leak. -
Page 46: Leakage Behind Walls
metal rod and listen for the leak sound. This should be repeated approximately every 1-3 feet until the leak sound is heard. To locate the leak area, gradually position the rod until the leak sound is heard at its loudest point. An alternative to this is to use a flat metal disc or coin and drop it on the test area. -
Page 47: Ultrasound Technology
ULTRASOUND TECHNOLOGY The technology of ultrasound is concerned with sound waves that occur above human perception. The average threshold of human perception is 16,500 Hertz. Although the highest sounds some humans are capable of hearing is 21,000 Hertz, ultrasound technology is usually concerned with frequencies from 20,000 Hertz and up. -
Page 48: Ultraprobe 10000 Specifications
Covered by one or more of the following patents: 051115, 0303776, 0315199, 1206586, 1297576, 1881263, 2562758, 2689339, 4416145, 4823600, 5955670, 6122966, 6339961, 6341518, 6415645 & and others pending. UE Systems is committed to continual product improvement therefore specifications are subject to change without notice. Warranty details are available by request. -
Page 49: Instructions For Setting The Combination Lock On Carrying Case
INSTRUCTIONS FOR SETTING COMBINATION ON CARRYING CASE The combination is factory set at ,0-0-0,, Setting your personal combination: 1. Open the case. Looking at the back of the lock inside the case you will see a change lever. Move this change lever to the middle of the lock so that it hooks behind the change notch (picture 1 ). - Page 50 14 Hayes Street Elmsford, NY 10523 USA Tel: 914-592-1220 Fax: 347-2181 Email: info@uesystems.com Web page: http://www.uesystems.com 2009 UE Systems, Inc. All rights reserved UP10M1009...
