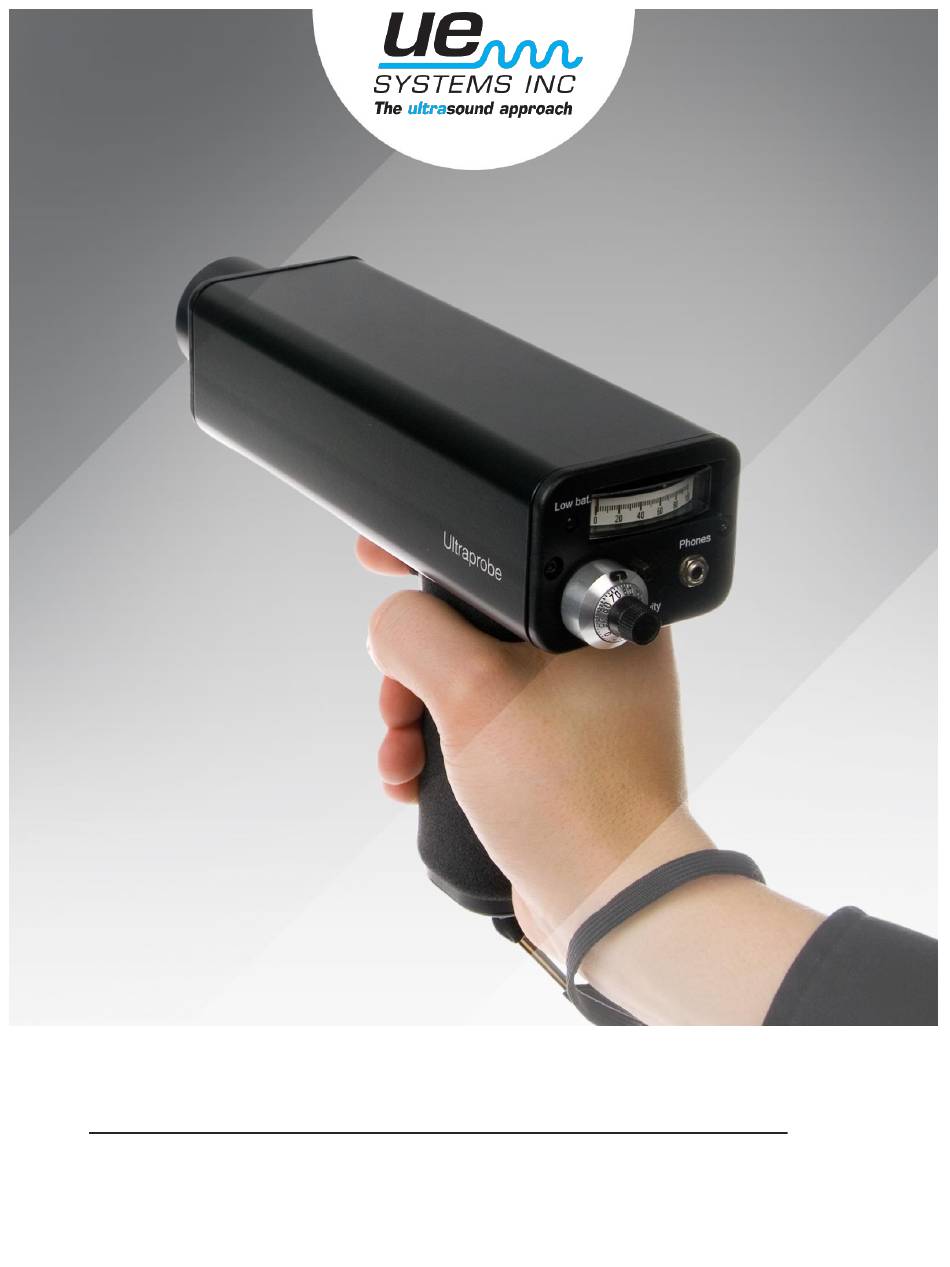

UE SYSTEMS INC.
THE ULTRAPROBE 2000
MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ULTRAPROBE 2000 and is the answer not in the manual?

Questions and answers

Related Manuals for UE Systems ULTRAPROBE 2000

Summary of Contents for UE Systems ULTRAPROBE 2000

  • Page 1 UE SYSTEMS INC. THE ULTRAPROBE 2000 MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS OVERVIEW Introduction Basic Components of Your Kit COMPONENTS Meted Pistol Housing Meter Battery Level Light Sensitivity Selection Head Set Jack Trigger Switch Frequency Adjust Dial Meter Mode Selection Recharge Jack Charging the Ultraprobe Pistol Charging the WTG-2 Ultrasonic Tone Generator Scanning Module Contact (Stethoscope) Module Stethoscope Extension Kit...

  • Page 3: Overview

    OVERVIEW INTRODUCTION The ULTRAPROBE 2000 is a valuable tool for ultrasonic troubleshooting and predictive maintenance. The instrument provides testing capability ranging from leak detection to mechanical analysis. It is a testing laboratory that fits in the palm of your hand.

  • Page 4: Sensitivity Selection

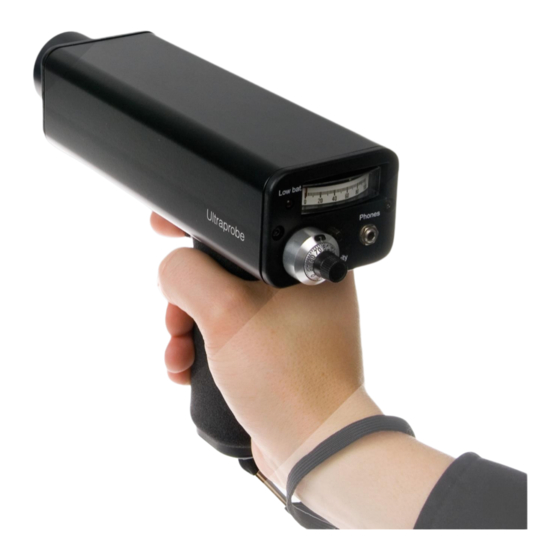

    COMPONENTS METERED PISTOL HOUSING The main component of the Ultraprobe 2000 is its’ pistol housing. From back to front, let’s examine each part. ANALOG METER. This ballistic meter has intensity increments of from 0 to 100. The 50 divisions reflect intensity changes only: the more intense the ultrasonic signal, the higher the reading.
  • Page 5 TRIGGER SWITCH. The Ultraprobe is always "off' until the trigger switch is pulled. To operate, simply pull the trigger; to turn the instrument off, release the trigger. FREQUENCY ADJUST DIAL. There are numbers ranging from 100 kHz down to 20 kHz. These represent the range of frequency selection capable with the Ultraprobe.

  • Page 6: Recharge Jack

    Charge time is approximately 4 hours. WARNING: Use the supplied UE Systems recharger (BCH-2) only. Use of unauthorized rechargers will void the warranty and may degrade or damage the battery. WHEN TO RECHARGE: When the red low level indicator light illuminates, IMMEDIATELY recharge the Ultraprobe.

  • Page 7: Scanning Module

    TRISONIC SCANNING MODULE This module is utilized to receive air-borne ultrasound such as the ultrasounds emitted by pressure leaks and electrical discharges. There are three prongs at the rear of the module. For placement, align the prongs with the three corresponding jacks in the front end of the metered pistol housing and plug in.

  • Page 8: Stethoscope Extension Kit

    TO USE THE STETHOSCOPE MODULE Align the pins located at the rear of the module with the three jacks in the front end of the Metered Pistol Housing (MPH) and plug in. For detecting leaks in valves, steam traps, etc., position the meter selection dial to LOG. If performing mechanical analysis, select the LIN mode on the meter selection dial.

  • Page 9: Rubber Focusing Probe

    RUBBER FOCUSING PROBE The Rubber Focusing Probe is a cone-shaped rubber shield. It is used to block out stray ultrasound and to assist in narrowing the field of reception of the Scanning Module. To use, simply slip it over the front of the scanning module or the contact module. To prevent damage to the module plug, NOTE: always remove the module BEFORE attaching and...
  • Page 10 INSTRUCTIONS FOR SETTING COMBINATION ON CARRYING CASE The combination is factory set at --0--0--0 SETTING YOUR PERSONAL COMBINATION Open the case. Looking at the back of the lock inside the case you will see a change lever. Move this change lever to the middle of the lock in a way that allows it to hook behind the change notch (drawing 1).
  • Page 11 ULTRASONIC INSPECTION SYSTEM FACTORY MUTUAL INTRINSICALLY SAFE RATING EXPLANATION The Ultraprobe 2000 is to be considered intrinsically safe for use in Class 1, Division 1, Groups A, B, C, & D only when it has the appropriate "Factory Mutual System Approved" logo and label affixed to the bottom rear panel of the instrument.
  • Page 12 SPECIFICATIONS CONSTRUCTION Hand held metered pistol type made with anodized aluminum and ABS plastic. CIRCUITRY Solid state heterodyne receiver with temperature compensation FREQUENCY Detect ultrasonic frequencies between 20 kHz and 100 kHz, RESPONSE continuously variable. Frequencies are converted to 100 Hz to 3 kHz audio.
  • Page 13 SAFETY ADVISORY. PLEASE READ BEFORE USING YOUR INTRUMENT. WARNING! Improper use of your ultrasonic detector may result in death or serious injury. Observe all safety precautions. Do not attempt to make any repairs or adjustments while the equipment is operating. Be sure to turn off and LOCK OUT all electrical and mechanical sources before performing any corrective maintenance.
  • Page 14 Need further support? Want information regarding products or training? CONTACT: UE Systems, Inc. 14 Hayes Street, Elmsford, NY 10523 USA 914-592-1220 | info@uesystems.com | www.uesystems.com...
