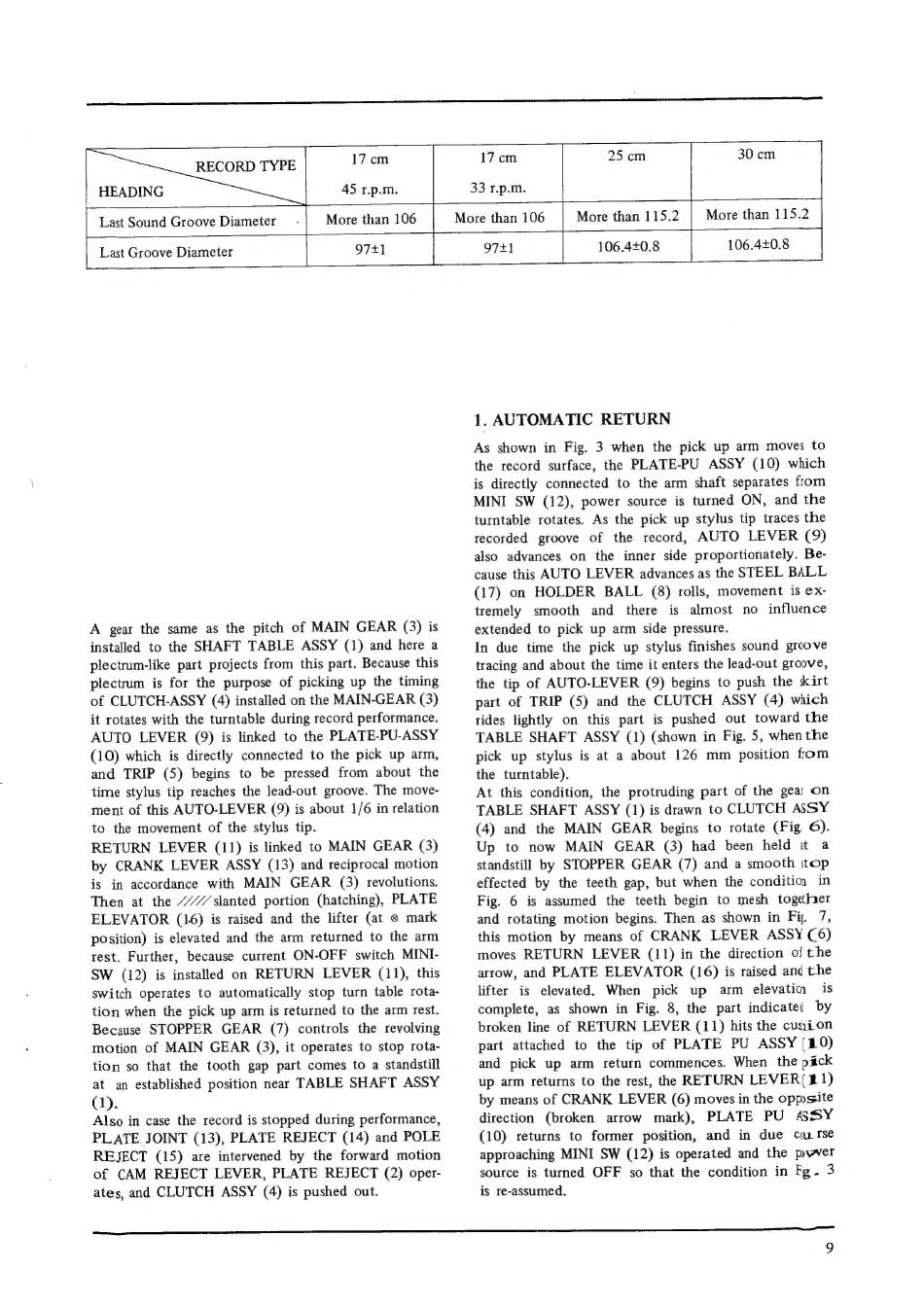

Akai AP-002 Service Manual page 9

Also in case the record is stopped during performance,
PLATE, JOINT (13), PLATE REJECT (14) and POLE
REJECT (15) are intervened by the forward motion
of CAM REJECT LEVER, PLATE REJECT (2) oper-
ates, and CLUTCH ASSY (4) is pushed out.
1. AUTOMATIC RETURN
At this condition, the protruding part of the gear on
TABLE SHAFT ASSY (1) is drawn to CLUTCH ASSY
(4) and the MAIN GEAR begins to rotate (Fig. 6).
Up to now MAIN GEAR (3) had been held it a
standstill by STOPPER GEAR (7) and a smooth stop
effected by the teeth gap, but when the condition in
Fig. 6 is assumed
the teeth begin to mesh together
and rotating motion begins. Then as shown in Fi. 7,
this motion by means of CRANK LEVER ASSY (6)
moves RETURN LEVER (11) in the direction of the
arrow, and PLATE ELEVATOR (16) is raised and the
lifter is elevated. When pick up arm elevatin is
complete, as shown in Fig. 8, the part indicated by
broken line of RETURN LEVER (11) hits the cunion
part attached to the tip of PLATE
PU ASSY (10)
and pick up arm return commences. When the piick
up arm returns to the rest, the RETURN LEVER(#1)
by means of CRANK LEVER (6) moves in the oppsite
direction (broken arrow mark), PLATE PU ASSY
(10) returns to former position, and in due car rse
approaching MINI SW (12) is operated and the pwer
source is turned OFF so that the condition in Fg. 3
is re-assumed.
9
