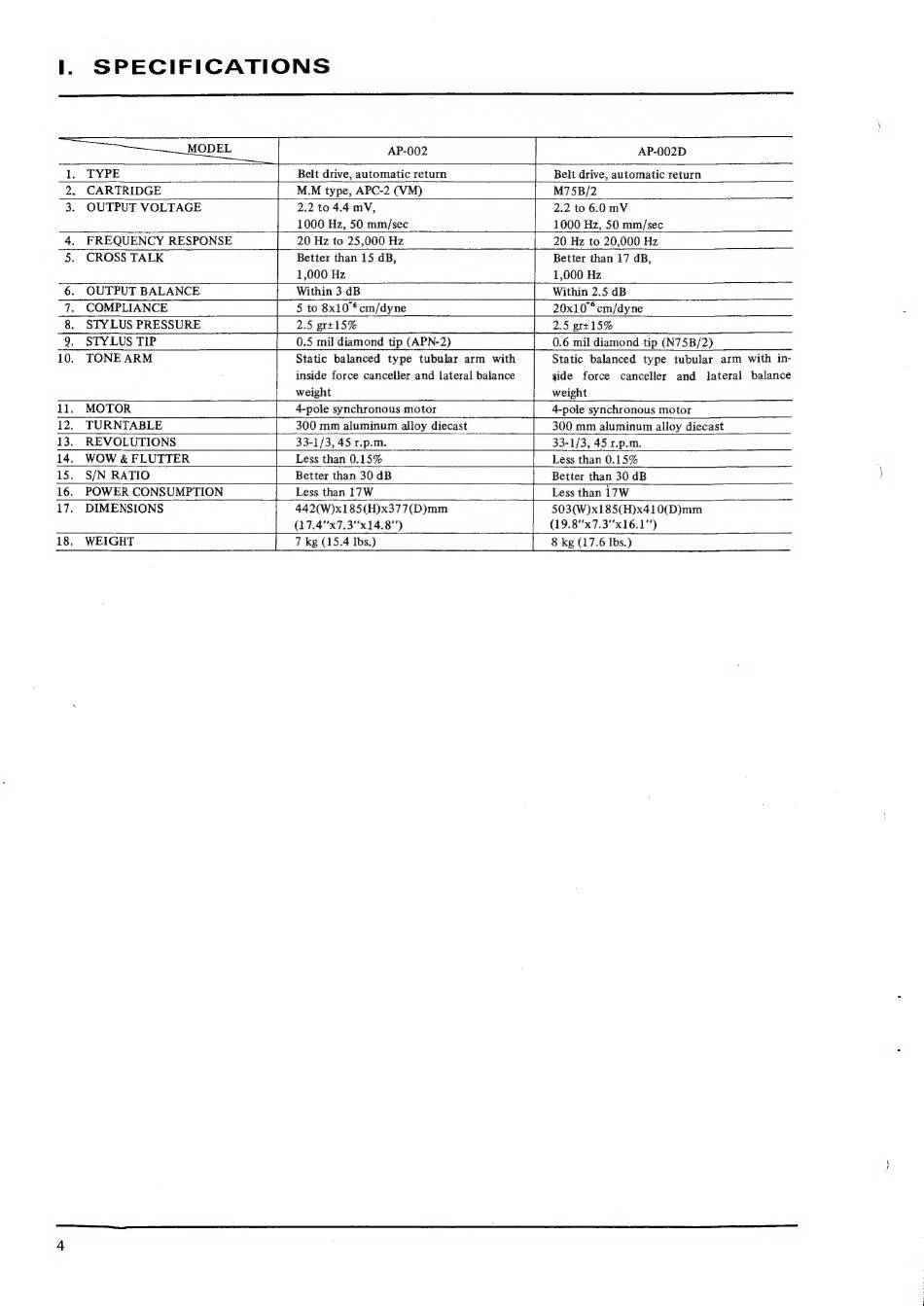

Il. SPECIFICATIONS
1, TYPE Belt drive, automatic return Belt drive, automatic return
2. CARTRIDGE M.M type, APC-2 (VM) M75B/2
3. OUTPUT VOLTAGE 2.2 to 4.4 mV, 2.2 to 6.0 mV
+
1000 Hz, 50 mm/sec 1000 Hz, 50 mm/sec
4, FREQUENCY RESPONSE 20 Hz to 25,000 Hz 20 Hz to 20,000 Hz
5. CROSS TALK Better than 15 dB, Better than 17 dB,
1,000 Hz 1,000 Hz
6. OUTPUT BALANCE Within 3 dB Within 2.5 dB
7. COMPLIANCE 5 to 8x10 ®cm/dyne 20x10 °cm/dyne
8. STYLUS PRESSURE 2.5 gr+15% 2.5 gr+15%
9. STYLUS TIP 0.5 mil diamond tip (APN-2) 0.6 mil diamond tip (N75B/2)
10. TONE ARM Static balanced type tubular arm with Static balanced type tubular arm with in-
inside force canceller and lateral balance gide force canceller and lateral balance
weight weight
11. MOTOR 4-pole synchronous motor 4-pole synchronous motor
12. TURNTABLE
300 mm aluminum alloy diecast 300 mm aluminum alloy diecast
13. REVOLUTIONS
33-1/3, 45 r.p.m. 33-1/3, 45 r.p.m.
14. WOW & FLUTTER
Less than 0.15% Less than 0.15%
15. S/N RATIO Better than 30 dB
Better than 30 dB
16. POWER CONSUMPTION
Less than 17W
Less than 17W
17. DIMENSIONS
|
442(W)x185(H)x377(D)mm
(17.4"°X7,3"'*14.8')
503(W)x185(H)x410(D)mm
(19.8°x7.3"x16.1"')
18. WEIGHT
7 kg (15.4 Ibs.)
8 kg (17.6 Ibs.)
