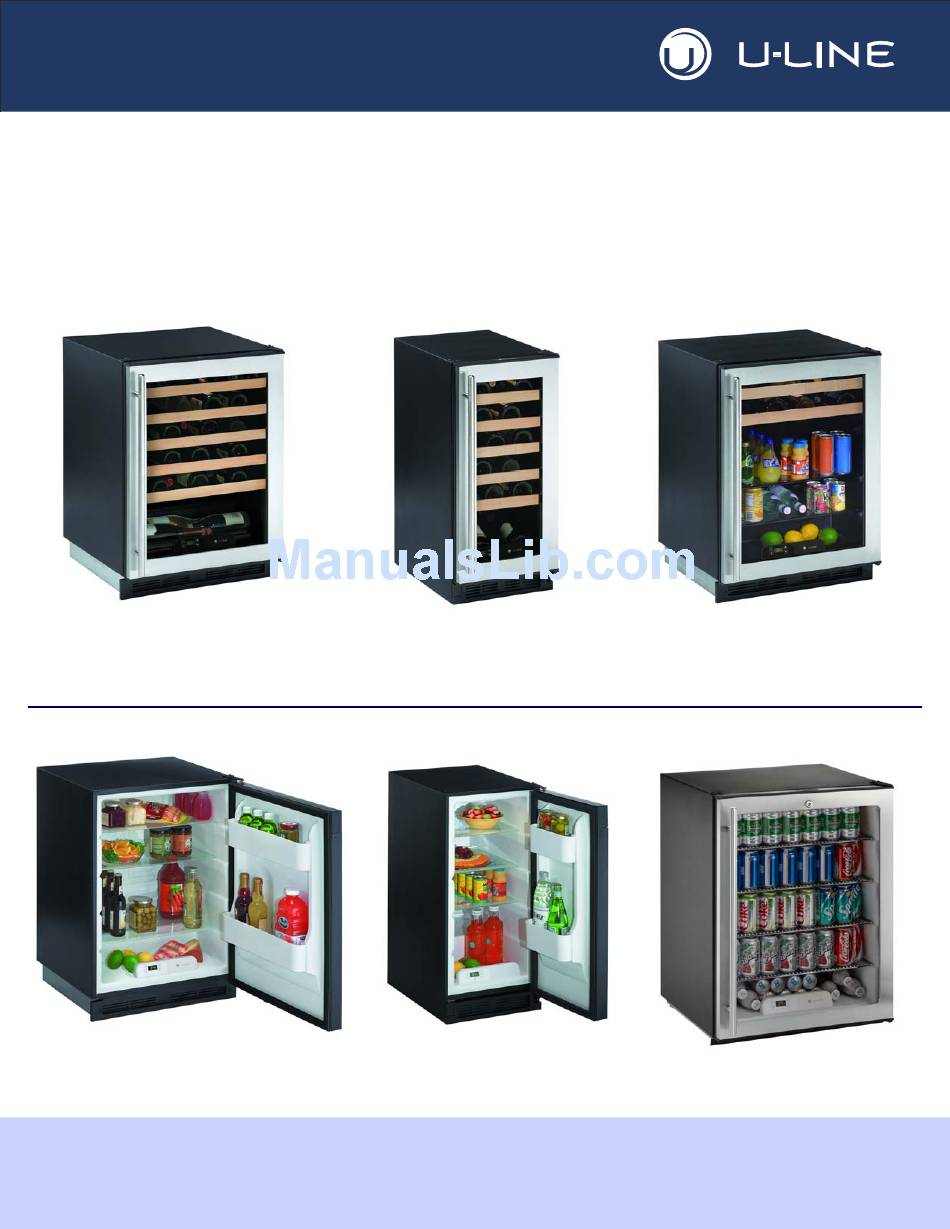

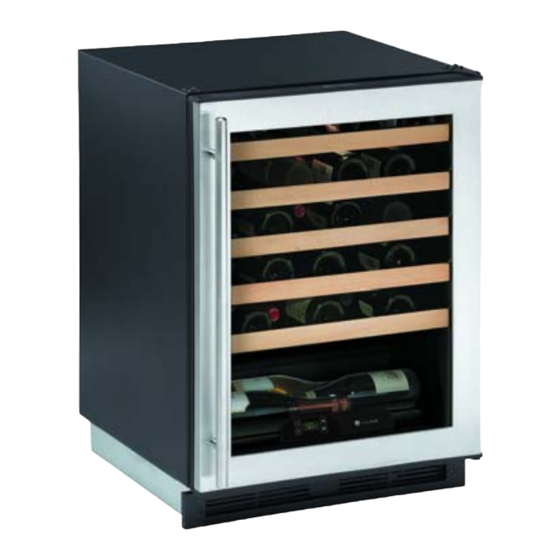

- Page 1 ® USE AND CARE GUIDE 1000 & ADA SERIES WINE CAPTAIN MODELS ® BEVERAGE CENTERS REFRIGERATORS 1175WC 1115WC 1175BEV 1175R 1115R ADA24RGLS U-LINE.COM The Built-In Undercounter Leader Since 1962...
-
Page 2: Read And Save This Use And Care Guide
This information also appears product. on the warranty registration card. Building on 45 years, U-Line has captivated those with an appreciation for the finer things with exceptional design, inspired FOR PRODUCT ASSISTANCE, CALL 1-800-779-2547 innovations and attention to even the smallest details. -
Page 3: Table Of Contents
2 - Safety Precautions ..............................3 Safety Alert Definitions ............................3 General Precautions .............................3 3 - 1000 Series Product Features ..........................4 All 1000 & ADA Series Model Feature: ......................4 Wine Captain® Model and Beverage Center Features: ................4 Wine Captain® Model Features: ........................4 Beverage Center Features: ..........................4... - Page 4 U-Line Use and Care Guide...
-
Page 5: Safety Precautions
Consult the installation guide before any installation begins. U-Line contact information appears on the rear WARNING cover of this guide. SHOCK HAZARD - Electrical Grounding Required. -
Page 6: 1000 Series Product Features
Wine Captain® Model Features: 4 1000 Series Product Features Capacity.15” Wine Captain Model up to 24 Bottles. 24" Wine Captain Model up to 48 Bottles. Multiple temperature zones. Maintains wine at their proper serving temperature. Top Approximately 55°F (Red). Middle Approximately 50°F (White). -
Page 7: Product Operation
SET TEMPERATURE mode. The display (3) will begin to flash the °F (or °C) symbol. All U-Line controls are preset at the factory. Initial startup requires no adjustments. NOTE: This mode will self-cancel in five seconds, and the display (3) will show the original set-point temperature. -
Page 8: Checking Product Temperature
• The front grille or condenser are obstructed. temperature. To exit the Blackout (Sabbath) Mode before the 36-hour period, repeat Step 1. U-Line Product Operation... -
Page 9: Electronic Control Quick Guide
Display off when door is Display Off closed (unless cabinet light Mode is turned on). Repeat to switch back. NOTE: 38°F is an example; the display will vary with actual set- point. U-Line Product Operation... -
Page 10: U-Line Wine Guide
The primary guideline to the subject of wine is your own palate. Do not be afraid to make mistakes. Experiment, discover, but most of all, enjoy yourself and your new U-Line product. A Toast to Wine Truths Guide To Common Styles Of Wine... -
Page 11: Ideal Wine Storage Considerations
U-Line Wine Captain models generosity or thin. offer stable storage temperatures, a 50% internal relative humidity and protection from UV light rays. U-Line has the largest product Oaky A desirable flavor imparted to wine if done in moderation. -
Page 12: Wine Stocking Recommendation
Ensure an even track engagement on both sides by gently pushing the rack into the cabinet until it stops. Before reloading the rack, ensure proper movement of the travel stops in the left and right track rails by pulling the rack U-Line Wine Guide... -
Page 13: Wood Trim Finishing
2. Lightly sand and clean wood. ® U-Line products featuring wine storage include wood-trimmed 3. Apply Minwax Water-Based Wood Stain to wood with a wine racks. -
Page 14: Maintenance
IMPORTANT IMPORTANT screw in the center. ALWAYS use a genuine U-Line replacement 120V 10 watt 4. Remove grille (2) and grille cap (if equipped)(3) from unit. bulb (Part Number 31317) in the light housing. Use of any Installing the grille:... -
Page 15: Removing And Installing Interior Shelves
2. Carefully pull the shelf away from the door. To install the door shelf: 1. Holding the shelf in the center, center the shelf in the door at the desired location, slightly above the pins (2). U-Line 1000 Series Maintenance... - Page 16 2. Continue to slide the shelf into the unit at an angle until it clears the door. 3. Lower the shelf and push it in completely. Install shelf retention clip. U-Line 1000 Series Maintenance...
-
Page 17: Standard Doors
Other models will have a plate with Plug Hole Plug Hole three screws. 2. Remove corresponding screws on opposite side of cabinet. On Right Side Left Side Door Swing Door Swing U-Line Standrd Door Alignment and Reversal... - Page 18 5. Remove the plastic hinge bushing (2) and install in the corner opposite of where it was removed. Install grille: 6. Remove the U-Line nameplate (3) from door. This will reveal Install the grille, see MAINTENANCE section of this guide. mounting holes for the door actuator bracket.
-
Page 19: Cleaning
For best defrosting can cause personal injury and damage to the results use Claire® Stainless Steel Polish and Cleaner, which can inner lining. be purchased from U-Line Corporation (Part Number 173348). Comparable products are acceptable. Frequent cleaning will IMPORTANT IMPORTANT remove surface contamination that could lead to rust. -
Page 20: Condensor Cleaning
RISK OF CHILD ENTRAPEMENT. Before you throw away your old refrigerator or freezer, take off the doors and leave shelves in place so children may not easily climb inside. 75 Models 3. Remove the cabinet door. Typical Model Shown U-Line 1000 Series Cleaning... -
Page 21: Service
Troubleshooting Guide Before Calling for Service DANGER If you think your U-Line product is malfunctioning, read the ELECTROCUTION HAZARD. Never attempt to repair or OPERATION section of this guide to understand clearly the perform maintenance on the unit until disconnecting the function of the control. - Page 22 U-Line Use and Care Guide...
-
Page 23: U-Line Corporation Limited Warranty
50 degrees and connecting tube) in each U-Line product to be free from above 100 degrees Fahrenheit, performance may decline. defects in materials and workmanship for a period of five Performance degradation due to operating above or years from the date of purchase. -
Page 24: Product Information
E-mail: onlineparts@u-line.com ABOUT U-LINE Building on 45 years, U-Line has captivated those with an appreciation for the finer things with exceptional design, inspired innovations and attention to even the smallest details. U-Line is synonymous with premium built-in undercounter ice making, refrigeration and wine storage appli- ances, the U-Line Corporation is committed to luxury under the counter.
