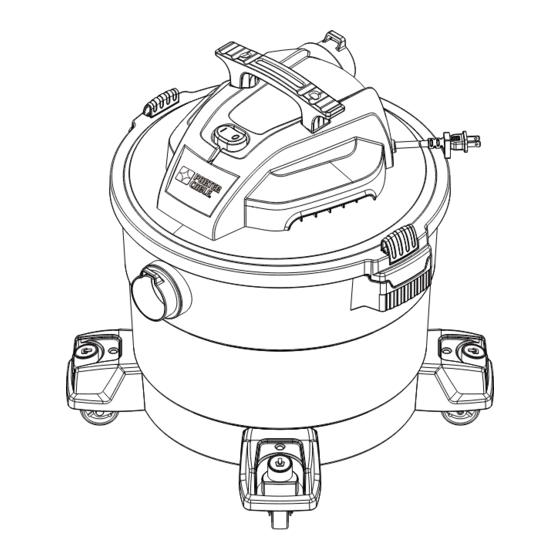

Summary of Contents for Porter-Cable PCX18604P-10A

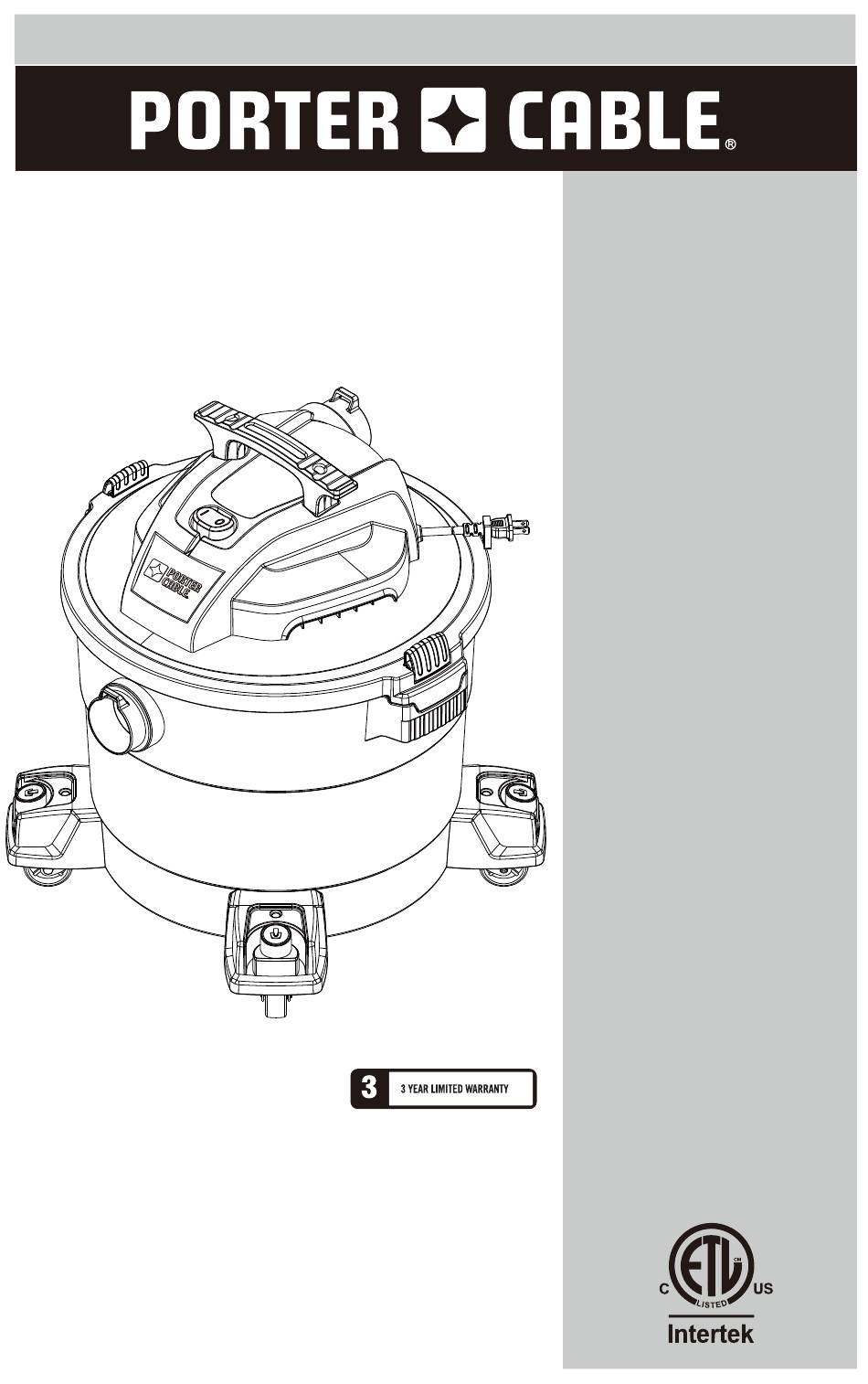

Page 1
Time. Assistance is available in English and Spanish. Alton Industry Ltd.Group; 1031 North RaddantRd Batavia, Illinois 60510; 1-888-899-0146 IMPORTANT:RETAIN FOR FUTURE REFERENCE! READ THIS OWNER’S MANUAL BEFORE USING! www.portercable.com Thank you for choosing PORTER-CABLE! To register your new product, go to: www.portercable.com/ServiceAndSupport/ProductRegistration.aspx...
Safety Information.......................4 Operating Instructions....................6 Care and Maintenance....................9 Troubleshooting......................10 Expanded View and Parts List..................11 Warranty........................12 PRODUCT SPECIFICATIONS Model PCX18604P-10A Power 120 V / 60 Hz / 10 A Motor Single Stage Tank Capacity 10 Gallon Hose 8 ft x 1-7/8 in / 2.4 m x 48 mm Power cord SJTW18AWG 10 ft.
SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS & GROUNDING INSTRUCTIONS When using an electrical appliance, basic precautions should be always followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. DANGER! Never operate this unit when flammable materials or vapors are present because electrical devices produce arcs or sparks that can cause a fire or explosion.
Page 5
19. Do not leave the cord lying on the floor once have finished the cleaning job. It can become a tripping hazard. 20. Use special care when emptying heavily loaded tanks. 21. To avoid spontaneous combustion, empty tank after each use. 22.
OPERATING INSTRUCTIONS UNPACKING & SET-UP SUMMARY 1 .Pull lid latches in an outward motion, remove power head and some accessories that may have been shipped in the tank. 2 .Attach caster following the instructions as below: a.Invert dust tank, take the caster to align the tank bottom sinking place.
Page 7
DRY PICK-UP 1. The filter must always be in correct position to reduce the risk of leaks and possible damage to vac. Make sure that the filter is completely covering the filter cage. Make sure there are no gaps between the filter and the lid. (See illustration). It is very important to assemble the filter to the cage without allowing any possible leaks or tears.
Page 8
EMPTING THE TANK WARNING! To reduce the risk of injury from accidental starting, unplug power cord before emptying the dust tank. 1. Remove the power head assembly of the wet/dry vacuum by pulling outward on the lid clips located on each side of the vacuum. Lift off the power head assembly. 2.
CARE AND MAINTENANCE FILTER REPLACEMENT WARNING! To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter.The filter should be cleaned often to maintain peak Vacuum performance. WARNING! Do not remove filter cage and float. The float prevents water from entering the impeller and damaging the motor.
TROUBLESHOOTING WARNING! Minor problems often can be fixed without calling customer service. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Make sure electrical outlet has voltage Vacuum will not No electricity (A qualified electrician may need to be contacted) 1. Full tank 1. Drain and clean tank Loss of suction, 2.
EXPANDED VIEW / PARTS LIST PART DESCRIPTION PART DESCRIPTION Handle Air Duct Sponge Cord Clamp ON/OFF Switch Lid Latches Top Cover Lower Lid Thermal Baffle Air Duct Seal Filter Cage Dust Tank Power Cord Motor Vacuum Port Caster Motor Support Sealing Ring...
WARRANTY Alton Industry Ltd. Group 3 Years Limited Warranty This warranty covers any defects in materials or workmanship of the enclosed product. Alton Industry Ltd. Group will repair or replace any defective materials due to craftsmanship of the product. This warranty does not cover any problem caused by misuse, abuse, accidents or acts of God, such as floods or hurricanes.
Page 13
Alton Industry Ltd.Group; 1031 North RaddantRd Batavia, Illinois 60510; 1-888-899-0146 IMPORTANTES:CONSERVAR PARA FUTURAS REFERENCIAS! LEA TODAS LAS INSTRUCCIONES ANTES DE USAR SU ASPIRADORA www.portercable.com Gracias por elegir PORTER-CABLE! Para registrar su nuevo producto, acceda a: www.portercable.com/ServiceAndSupport/ProductRegistration.aspx...
Cuidado y mantenimiento................... 21 Solución de problemas....................22 Vista detallada y lista de piezas.................. 23 Garantía........................24 ESPECIFICACIONES DEL PRODUCTO modelo PCX18604P-10A Potencia 120 V / 60 Hz / 10 A Motor De una sola fase Capacidad del tanque 10 Galón / 38 litros...
CONTENIDO DEL PAQUETE Artículo Descripción Nº de pieza Cantidad 1-7/8” Tubo 19-1108 Tubo extensón 19-1200 Cepillo de piso 19-1900D Pico esquinero 19-1300 Cepillo redondo 19-2400 Filtro de bolsa 19-3101N desechable 08-2566B Filtro de cartucho Limpiador Descripción Artículo Descripción Manejar Interruptor Dos tapa pestillo De vacío de puerto Depósito de polvo...
INFORMACIÓN DE SEGURIDAD INSTRUCCIONES IMPORTANTES DE SEGURIDAD E INSTRUCCIONES DE PUESTA A TIERRA Cuando use electrodomésticos, siempre debe tomar las medidas de precaución básicas, incluidas las siguientes: LEA TODAS LAS INSTRUCCIONES ANTES DE USAR ESTE ELECTRODOMÉSTICO. ¡PELIGRO! Nunca opere esta unidad si hay materiales o vapores inflamables presentes, ya que los dispositivos eléctricos producen arcos o chispas que pueden producir un incendio o una explosión.
Page 17
18. No recoja hollín, cemento, yeso o polvo de panel de yeso sin el filtro y la bolsa para polvo en su lugar. Estas son partículas muy finas que afectan el funcionamiento del motor o pueden devolverse al aire. Hay bolsas para polvo adicionales disponibles. 19.
MEDIDAS DE SEGURIDAD IMPORTANTES ¡ADVERTENCIA! Este producto puede exponerlo a sustancias químicas, incluido el plomo, que el estado de California considera que causan cáncer, defectos de nacimiento u otros daños reproductivos. Para obtener más información, vaya a www.P65Warnings.ca.gov. INSTRUCCIONES DE FUNCIONAMIENTO DESEMBALAJE Y CONFIGURACIÓN 1.Libere la traba de la tapa con un movimiento hacia el exterior, retire la tapa y algunos accesorios que podrían expedirse en el tanque.
Page 19
ADVERTENCIA: El funcionamiento de cualquier aspiradora para uso general puede soplar objetos extraños a los ojos del operador y, de esta manera, causar graves daños oculares. Siempre use gafas de seguridad que cumplan con ANSI Z87.1 (o con CSA Z94.3 en Canadá) antes de comenzar la operación.
Page 20
ASPIRADO EN MOJADO 1. Retire el filtro reutilizable y reemplácelo por un filtro de espuma cuando aspire en mojado. 2. Esta aspiradora para seco/mojado está equipada con un mecanismo de flotador que se eleva automáticamente para cortar el flujo de aire cuando el líquido en el tanque alcanza un nivel predeterminado.
PRECAUCIÓN: Use una mascarilla antipolvo si el soplado provoca polvo que pueda ser inhalado. PRECAUCIÓN: Para reducir el riesgo de daños auditivos, use protectores para los oídos cuando use la aspiradora/soplador por varias horas o en un entorno bullicioso. Su aspiradora cuenta con una característica de soplado. Tiene la capacidad de soplar aserrín y otros residuos.
LIMPIEZA Para mantener su aspiradora para seco/mojado con una apariencia perfecta, limpie la superficie exterior con un paño humedecido con agua tibia y jabón suave. Para limpiar el tanque: 1. Retire los desechos. 2. Lave el tanque completamente con agua tibia y jabón suave. 3.
VISTA DETALLADA / LISTA DE PIEZAS Artículo Descripción Cantidad Artículo Descripción Cantidad Mango de tranporte Esponja de conducto de aire Botón Interruptor Abrazadera de cable Cubierta superior Pestillos de la tapa Deflector térmico Tapa inferior Sello de conducto de aire Filtro de polvo Cable de alimentación Depósito de polvo...
GARANTÍA Alton Industry Ltd. Group Garantía Limita de 3 año Esta garantía cubre cualquier defecto en materiales o habilidad del producto incluido. Alton el Grupo de Industrias reparará o sustituirá cualquier material defectuoso debido a la artesanía del producto. Esta garantía no cubre ningún problema causado por el mal uso, el abuso, accidentes o actos del dios, como inundaciones o huracanes.
Page 25
Stanley® and are trademarks of Stanley Black & Decker, Inc., or its affiliates and are used under license by Alton Industry Ltd. Group Stanley® y de son marcas comerciales de Stanley Black & Decker, Inc., o sus afiliados y son utilizadas bajo licencia por Alton Industry Ltd. Group Stanley Black &...
