Instruction
manual
To learn more about Porter-Cable
visit our website at:
http://www.porter-cable.com
Copyright © 2002 Porter-Cable Corporation
ESPAÑOL: PÁGINA 13
FRANÇAISE : PAGE 25
Power Tool-Triggered
Wet/Dry Vac
MODEL 7812/7814
Please make certain that the person who is
to use this equipment carefully reads and
understands these instructions before
starting operations.
The Model and Serial No. plate is located on the main
housing of the tool. Record these numbers in the
spaces below and retain for future reference.
Model No. ______________________________________
Type ___________________________________________
Serial No. _______________________________________
IMPORTANT
Part No. 904362 - 02-14-02
Advertisement
Table of Contents
Related Manuals for Porter-Cable 7812
Summary of Contents for Porter-Cable 7812
- Page 1 Instruction manual MODEL 7812/7814 To learn more about Porter-Cable visit our website at: http://www.porter-cable.com Copyright © 2002 Porter-Cable Corporation ESPAÑOL: PÁGINA 13 FRANÇAISE : PAGE 25 Power Tool-Triggered Wet/Dry Vac IMPORTANT Please make certain that the person who is to use this equipment carefully reads and understands these instructions before starting operations.
-
Page 2: Safety Instructions
This vacuum is intended for commercial use. SAFETY INSTRUCTIONS GROUNDING INSTRUCTIONS This Appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. -
Page 3: Important Safety Instructions
BEFORE USING THIS APPLIANCE, READ AND FOLLOW ALL INSTRUCTIONS. These appliances were made for certain applications. Porter-Cable strongly recommends that this appliance NOT be modified and/or used for any application other than for which it was designed. If you have any questions about its application, DO NOT use the appliance until you have written Porter- Cable and we have advised you. -
Page 4: Replacement Parts
When servicing use only identical replacement parts. MOTOR Many Porter-Cable products will operate on either D.C. or single phase, 25 to 60 cycle A.C. current, and voltage within plus or minus 5 percent of that shown on the specification plate on the tool. Several models, however, are designed for A.C. - Page 5 Seat firmly. Set container upright, on its wheels. NOTE: If the Vacuum Cleaner is to be used to pick-up liquid or wet material, skip step 6. Install the paper filter bag. Please note that the mounting hole is offset in the bag.
- Page 6 Container intake port. Slide connector into intake port and rotate one-quarter turn clockwise to lock. NOTE: Models 7812 and 7814 Vacuum Cleaners are equipped with a Static Dissipating System that can help dissipate static electrical charges (sometimes experienced when recovering very dry, powdered materials), when used with a Static Dissipating type vacuum hose.
-
Page 7: Power Switch

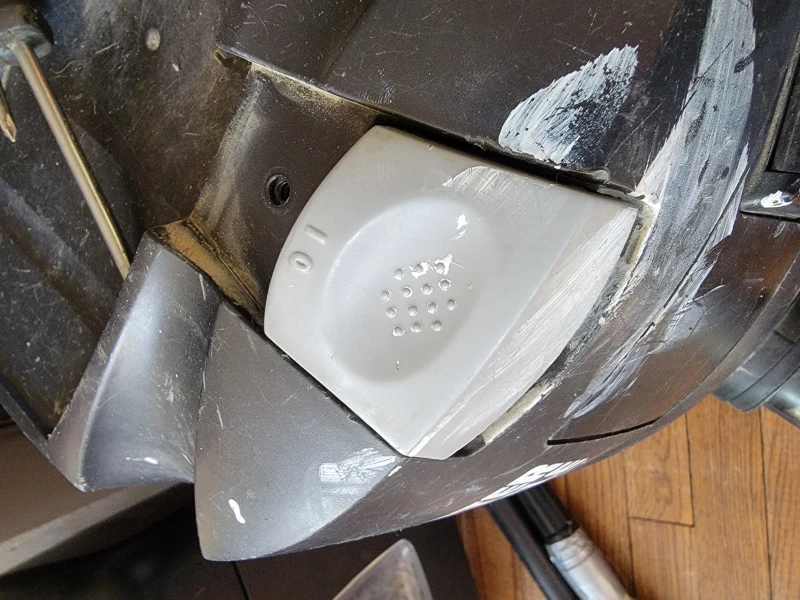

6 to 10 seconds after the power tool is turned “OFF”. POWER SWITCH The power switch on both the 7812 and 7814 models has two positions – on and off. When not using a power tool, turn the vacuum cleaner to the “ON”... -
Page 8: Parking Brake
Both models are equipped with a top filter. If vacuum efficiency is reduced (indicating a clogged filter), proceed as follows: Turn the Vacuum Cleaner switch to the “OFF” position. Grasp handle (C) Fig. 6 and pull out (approximately one and one-half inches), then release. - Page 9 Do not use to vacuum hazardous, toxic, or carcinogenic materials, such as asbestos or pesticide. The vacuum cleaner may be used to pick up dry material with or without a dust bag installed. The dust bag provides a convenient method for disposing of the material that is collected.
-
Page 10: Maintenance
SERVICE CENTER. At approximately 100 hours of use, take or send your tool to your nearest authorized Porter-Cable Service Station to be thoroughly cleaned and inspected. Have worn parts replaced and lubricate with fresh lubricant. Have new brushes installed, and test the tool for performance. - Page 11 WARNING: Since accessories other than those offered by Porter-Cable • Delta have not been tested with this product, use of such accessories could be hazardous. For safest operation, only Delta recommended accessories should be used with this product. Porter-Cable •...
- Page 12 PORTER-CABLE LIMITED ONE YEAR WARRANTY Porter-Cable warrants its Professional Power Tools for a period of one year from the date of original purchase. We will repair or replace, at our option, any part or parts of the product and accessories covered under this warranty which, after examination, proves to be defective in workmanship or material during the warranty period.
- Page 13 Porter-Cable products should be obtained by contacting any Porter-Cable Distributor, Authorized Service Center, or Porter-Cable Factory Service Center. If you do not have access to any of these, call 888-848-5175 and you will be directed to the nearest Porter-Cable Factory Service Center.
