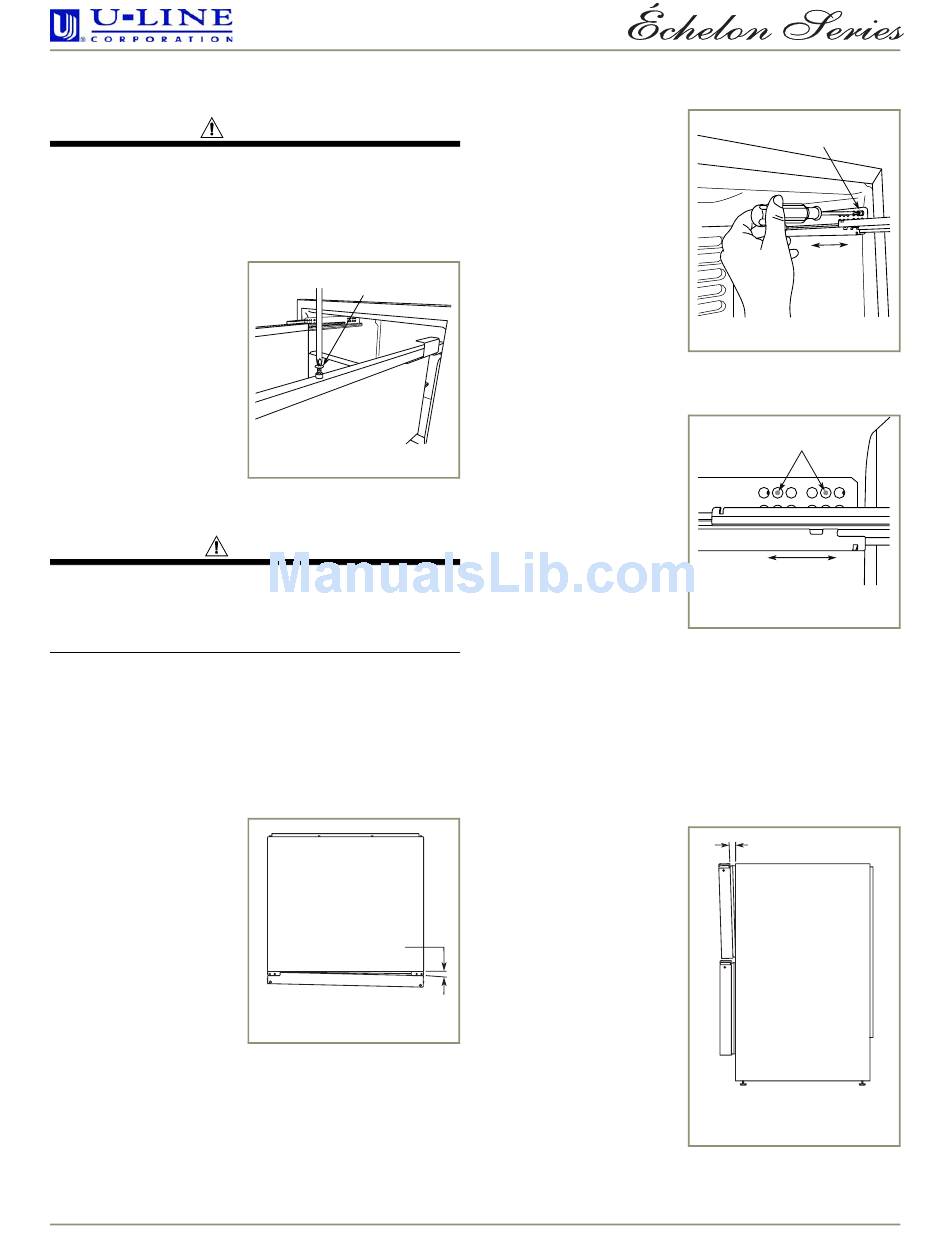

Adjusting Drawer Alignment

WARNING
SHOCK HAZARD — The unit must be unplugged
from the wall outlet during drawer removal,
adjustment and re-installation.
Drawer Removal
1. Confirm that the unit is
unplugged from wall
outlet.
2. Unplug the drawer's
connection wiring (top
drawer only).
3. Remove the mounting
screws. See Figure 7.
4. Pull the drawer
completely out of the
unit.
CAUTION
Use care when handling the drawer. Drawer edges,
drawer rail and the unit's slide may be sharp.
IMPORTANT
Drawer adjustments are made by moving the slide that
carries the drawer's rail. Minor adjustments may be made
by loosening one of the slide's mounting screws, adjusting
the slide and retightening the screw. Severe adjustments
may be made by removing the slides' mounting screws,
drilling new mounting holes and remounting the slide.
Side-to-Side Adjustment
See Figure 8. The drawer
will need a Side-to-Side
Adjustment if, when
viewed from the top, the
drawer front is not square
with the sides of the
cabinet. This is caused by
one of the slides being
mounted too far forward
on the unit's liner.
www.U-LineService.com
Mounting
Screw
Figure 7
Not Aligned Side-to-Side
Top View of Unit
Figure 8
Minor Adjustment:
Note: The mounting holes
on the slide are slightly
larger than the screws'
diameter.
1. Loosen the slide's
mounting screws.
2. Push the slide
backward.
3. Retighten the screws.
See Figure 9.
Severe Adjustment:
Note: The slides have
extra mounting holes that
may be used.
1. Remove the slide's
mounting screws.
2. Reposition the slide so
it is the same distance
from the front of the
liner as the other slide.
Measure to confirm.
3. Mark new drilling holes
using different sets of mounting holes on the slide. See
Figure 10.
Note: Front location holes are shown. Corresponding rear
holes will also need to be marked.
4. Drill all the new holes with a #30 drill bit.
5. Remount the slide.
Front-to-Back Adjustment
See Figure 11. The drawer
will need a Front-to-Back
Adjustment if, when
viewed from the side, the
drawer front is cocked
forward or back. This is
caused by the front slide
mountings not being level
with the rear slide
mountings.
4
Loosen
Mounting Screws
Push Slide
Backward
Figure 9
Mark and Drill New
Mounting Holes
Push Slide
Backward
Figure 10
Not Aligned Front-to-Back
Side View of Unit
Figure 11
