Page 1: Use And Care Guide

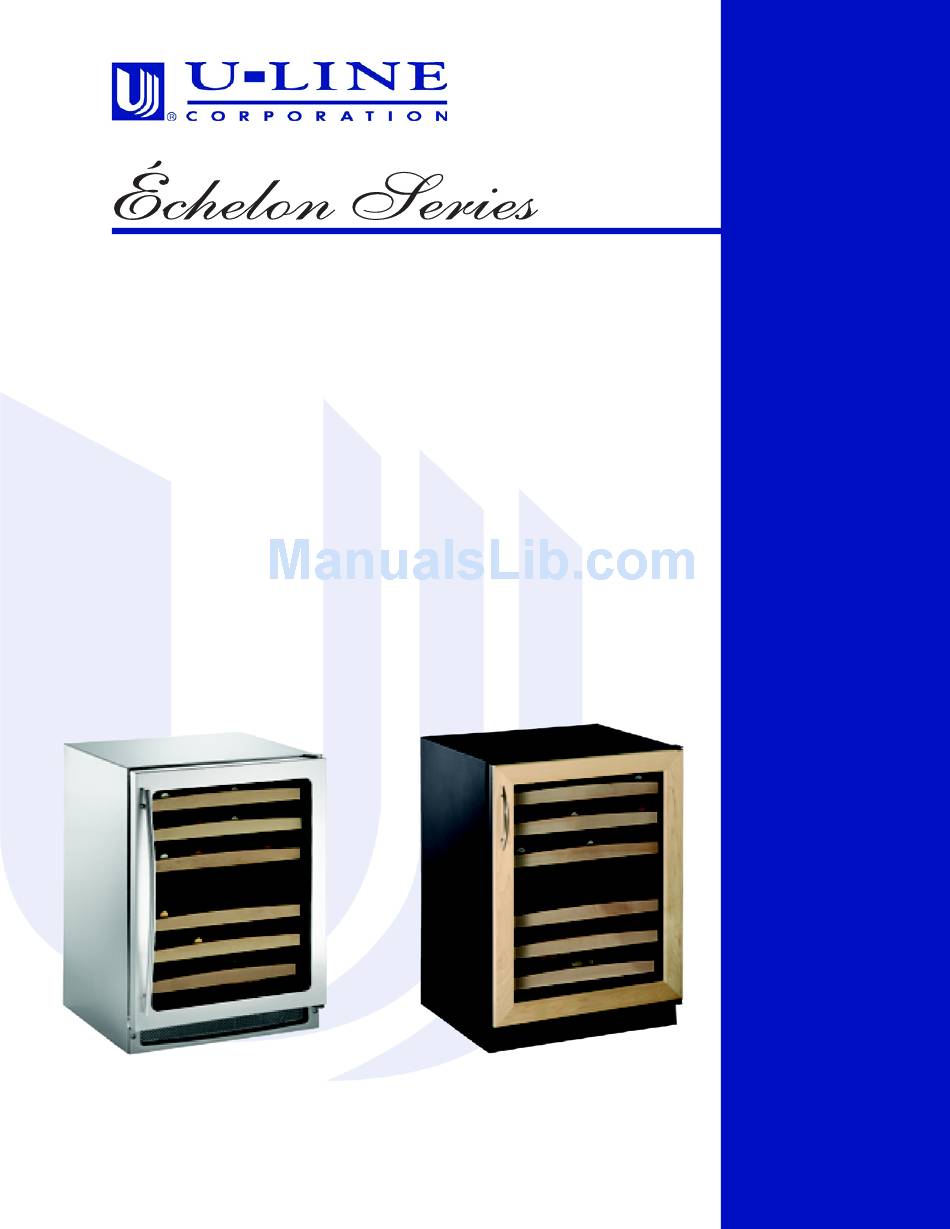

Use and Care Guide Dual Zone Models ® Wine Captain Models: 2275ZWC & 2275ZWCOL 2275ZWC 2275ZWCOL... -
Page 2: Warranty Registration
If your product registration is not on file and a request for warranty coverage is received, the date of sale to the U-Line Selling Dealer or Distributor will be established as the first date of warranty coverage for your product. -
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction ... Inside Front Cover Warranty Registration ... Inside Front Cover Please Record Your Model Information ... Inside Front Cover 1-Safety Precautions ...2 Safety Alert Definitions ...2 General Precautions ...2 2-Product Features ...3 Échelon Dual Zone Wine Captain ...3 Superior Features ...3 3-Optional Commercial Straight Handle ...3 4-Service ...3... -
Page 4: 1-Safety Precautions
An INSTALLATION GUIDE for your unit, providing complete installation information is available from U-Line Corporation directly, and must be consulted before any installation is begun. U-Line contact information appears on the rear cover of this guide. -
Page 5: 2-Product Features
Order Part No. 14159-01. SERVICE Before Calling for Service If your U-Line product appears to be malfunctioning, read through the OPERATION section of this guide to ensure that the function of all controls are clearly understood. If... -
Page 6: 5-Replacement Parts
Initial Startup All U-Line units are shipped with controls that are preset. No initial adjustments are required. Note: When performing multi-key functions, press and hold the first key, then press the second key the required number of times and release, then release the initial key. -
Page 7: Dual Temperature Zones
Dual Temperature Zones Your unit has been designed to provide two temperature zones (top and bottom) in the cabinet. Each zone can be adjusted within the 4 following temperature ranges: Note: These are product temperatures, not air temperatures. WINE CAPTAIN TEMPERATURE RANGES Default RW (Red Wine) 55°F... -
Page 8: Slide Out Caddy
LOWER ZONE CONTROLS Figure 7. Turning Display On/Off TEMPERATURE DISPLAY SELECTION (°F OR °C) U-Line products supplied for 110 VAC operation have temperatures displayed in a default Fahrenheit (°F) configuration. Models supplied for 220 VAC operation have temperatures displayed in a default Celsius (°C) configuration. -
Page 9: 8-Product Disposal
The primary guideline to the subject of wine is your own palate. Do not be afraid to make mistakes. Experiment, discover, but most of all, enjoy yourself and your new U-Line product. SUGGESTIONS FOR MATCHING FOOD AND WINE Although there are no hard fast rules for matching wine to food, observe some guidelines. -
Page 10: 10-Wine Guide
GUIDE TO COMMON STYLES OF WINE Red Wines Full-Bodied Dry Medium-Bodied Dry Light-Bodied Dry White Wines Full-Bodied Dry Medium-Bodied Dry Light-Bodied Dry Full-Bodied, Very Sweet Medium-Bodied, Semi-Sweet Light-Bodied Off Dry COMMON TASTING TERMS Terminology Description Acidity A critical element of wine that is responsible for preserving the wines freshness. Excess acidity results in an overly tart and sour wine. -
Page 11: 11-Maintenance & Cleaning
MAINTENANCE & CLEANING Proper maintenance of your U-Line product will ensure efficiency, top performance and long life. The maintenance intervals listed are based on normal conditions. You may want to shorten the intervals if you have pets or other special considerations. -
Page 12: Condenser Cleaning
Condenser Cleaning INTERVAL - EVERY THREE MONTHS To maintain operational efficiency, keep the front grille free of dust and lint and clean the condenser every three months. Depending on environmental conditions, more or less frequent cleaning may be necessary. WARNING Disconnect electric power to the unit before cleaning the condenser. -
Page 13: Door Alignment Check And Adjustment
Door Alignment Check and Adjustment IMPORTANT IMPORTANT When properly aligned: • The door will not be flush with the top of the cabinet. The top edge of the door will be 1/8 in. (3.175 mm) below the cabinet top. • The door gasket will be firmly in contact with the perimeter of the cabinet and not pinched on the hinge side of the door. -
Page 14: Light Bulb Replacement
3. Replace the bulb only with a genuine U-Line Part No. 31317 replacement. 4. Replace the lens by first inserting the tab side back into the housing at a slight angle. -
Page 15: Final Finish Application Only
4. Allow stain to dry for a minimum of three hours before applying the final finish. 5. If desired, sand the wood with very fine sandpaper to smooth the surface after the staining process. 6. Remove all dust from the wood, and apply one coat of ®... -
Page 16: 13-Troubleshooting Guide
TROUBLESHOOTING GUIDE DANGER ELECTROCUTION HAZARD Never attempt to repair or perform maintenance on the unit until the main electrical power has been disconnected. PROBLEM POSSIBLE CAUSE Unit does not operate and No electrical supply electronic display is blank. No interior light Loose or burned out bulb Electronic display is blank and Unit is in blackout lighting mode. -
Page 17: 14-Electronic Control Quick Guide
ELECTRONIC QUICK CONTROL GUIDE Task Touch Turn ON/OFF Hold 10 seconds Touch and release desired zone warmer icon Adjust then Set-Point Temperature Touch and release the light icon View Actual Hold 5 seconds Temperature for desired zone Change °F-°C Hold Blackout Hold 10 seconds Mode... - Page 18 This page intentionally left blank. 2275ZWC & 2275ZWCOL...
-
Page 19: Warranty
