Aetina M3A2000-VY Series User Manual

Aetina M3A2000-VY Series User Manual

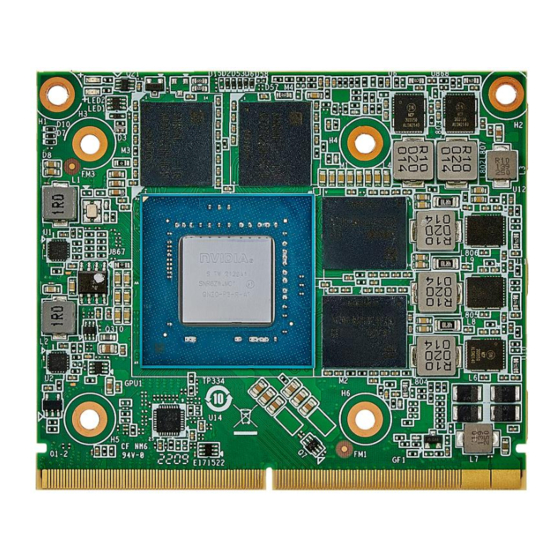

Embedded mxm module

Advertisement

Embedded MXM module
M3A2000-VY Series
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M3A2000-VY Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Aetina M3A2000-VY Series

  • Page 1 Embedded MXM module M3A2000-VY Series USER MANUAL...
  • Page 2 Document Change History Version Date Description Authors V1.0 2023/03/09 Initial Release. Emily Chou Revised Board configuration. V1.1 2023/05/10 Emily Chou M3A2000-VY User Manual...
  • Page 3 In no event will Aetina be liable to any person for any direct, indirect, special or other consequential damages arising from the use of any information contained herein, even if supplier is expressly advised of the possibility of such damages.
  • Page 4 All other product names or trademarks are properties of their respective owners. No ownership is implied or assumed for products, names or trademarks not herein listed by the publisher of this manual. For more information about this and other Aetina products, please visit our website at http://www.Aetina.com/...
  • Page 5 Product Warranty Aetina warrants the original purchaser, that each of its products will be free from defects in materials and workmanship which refers to “Aetina warranty policy” on Aetina’s official website: https://www.aetina.com/. Aetina warranty policy will be updated from time to time, and the last version shall be binding on the parties.
  • Page 6 14. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel. 15. If any of the following situations arises, please the contact Aetina’s service personnel: Power cord or plug is damaged –...
  • Page 7: Table Of Contents

    Contents 1. Product Specification ..............7 1.1 Features ........................8 1.2 Configuration ......................9 2. Hardware Information .............. 10 2.1 Block Diagram ...................... 10 2.2 General Purpose Graphics Processing Unit ............10 2.3 Display Interface ....................11 2.4 PCIE Express ......................11 2.5 Mechanical Dimensions ..................
  • Page 8: Product Specification

    1. Product Specification The MXM M3A2000-VY module features advanced NVIDIA RTX A2000 Embedded GUP. It’s Ampere architecture in the MXM 3.1 Type A form factor. With 2560 CUDA core, 20 RT cores and 80 Tensor cores, 8GB GDDR6 memory. The M3A2000-VY support PCIe Gen 4 interface is delivers faster sequential data transfer than PCIe Gen 3 interface and bringing excellent performance and power efficiency into a wide variety of embedded systems, fully integrating hardware acceleration for both graphics and computing code, enabling hardware acceleration for a wider class of software...
  • Page 9: Features

    Maximum resolution: 4096 x 2160 at 60Hz High-Bandwidth Digital Content Protection (HDCP) support ▪ Cooling System ▪ Operating System Support Windows ® 10-11 64-bit ▪ ▪ Linux 64-bit 1- Aetina provides PCI Express 4.0 x16 mechanism while data transmission via PCI-Express 4.0 x8. M3A2000-VY User Manual...
  • Page 10: Configuration

    1.2 Configuration Lists the SKU configuration currently available for the NVIDIA RTX A2000 graphics board. ◼ Board configuration Specification M3A2000-VYA-A1 M3A2000-VYA-A2 Chip NVIDIA RTX A2000 Embedded GPU Base= 1117 Core clock(MHz) Boost= 1612 Memory clock 14.0 Gbps Frame buffer 8GB GDDR6 Memory interface 128-bit Memory type...
  • Page 11: Hardware Information

    DisplayPort DisplayPort DisplayPort M3A2000-VY Block diagram 2.2 General Purpose Graphics Processing Unit The Aetina M3A2000-VY is based on NVIDIA RTX A2000 Embedded GPU. The A2000 is compliant with NVIDIA’s CUDA computing capability 8.6. ⚫ GPU Resources o GDDR6 SDRAM ▪...
  • Page 12: Display Interface

    2.3 Display Interface The M3A2000-VY provides four the digital output channels can be active at the same time. ⚫ Digital Output M3A2000-VY supports DisplayPort and HDMI output. ⚫ Analog Output This model does not support Analog output. ⚫ Hot Plug This model supports Hot Plug detect for digital monitors.
  • Page 13: Pin Definition

    2.6 Pin Definition ⚫ Board Interface MXM Board layout Specification Describe NVIDIA RTX A2000 GPU MXM connector (Golden finger) Board layout and connectors ⚫ MXM Pin Assignments MXM connector (card TOP) MXM connector (card BOTTOM) M3A2000-VY User Manual...
  • Page 14 ⚫ MXM connector Pinout Signal Name Signal Name Signal Name Signal Name PWR_SRC PWR_SRC PEX_RX1# PEX_TX1# PEX_RX1 PEX_TX1 PRSNT_R# RSVD PEX_RX0# PEX_TX0# PWR_GOOD PEX_RX0 PEX_TX0 PWR_EN RSVD PEX_REFCLK# PEX_CLK_REQ# PEX_REFCLK PEX_RST# RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD TH_OVERT# RSVD RSVD...
  • Page 15 Signal Name Signal Name Signal Name Signal Name PEX_RX12 DP_C_L2 DP_D_L1 PEX_TX11# PEX_RX11# PEX_TX11 DP_C_L3# DP_D_L2# PEX_RX11 DP_C_L3 DP_D_L2 PEX_TX10# PEX_RX10# PEX_TX10 DP_C_AUX# DP_D_L3# PEX_RX10 DP_C_AUX DP_D_L3 PEX_TX9# RSVD PEX_RX9# PEX_TX9 RSVD DP_D_AUX# PEX_RX9 RSVD DP_D_AUX PEX_TX8# RSVD DP_C_HPD PEX_RX8# PEX_TX8 RSVD DP_D_HPD...
  • Page 16: Software Installation

    64-bit 3.2 Performing a Quick Installation Experienced users and system administrators can follow these brief instructions for installing Aetina graphics card. Other users should refer to the detailed installation instructions. 1. Uninstall the drivers and software for any installed graphics card(s).
  • Page 17 3. Make sure your system has installed the appropriate motherboard drivers (for the motherboard drivers, please contact the motherboard manufacturer). After installing the operating system, download driver from Aetina official website. Then, go to My Computer, double-click the Download folder and execute the setup.exe program.
  • Page 18 ⚫ The system is installing the components ⚫ Click the “RESTART NOW” button to restart the computer. Then the driver installation is done M3A2000-VY User Manual...
  • Page 19: Initial Setup

    4. Initial Setup 4.1 Thermal Specifications Thermal Specification ◼ Parameter Value Thermal Resistance (Junction to Case, R 0.039°C/W Thermal Resistance (Junction to PCB, R 1.46°C/W GPU shutdown temperature (OVERT) (Note 1) 100°C GPU shutdown temperature (THERM_ALERT) (Note 2) 98°C GPU maximum operating temperature (Note 3) 89°C GPU target temperature 87°C (default).
  • Page 20: Appendix

    5. Appendix 5.1 Ordering Information Models available ◼ Model Number Description M3A2000-VYA-A1 MXM-A, NVIDIA RTX A2000, Gen4.0 x8, 8GB GDDR6, DP, 60W, 0°C to +55°C M3A2000-VYB-A1 MXM-A, NVIDIA RTX A2000, Gen4.0 x8, 8GB GDDR6, DP, 60W, COATING, 0°C to +55°C M3A2000-VYW-A1 MXM-A, NVIDIA RTX A2000, Gen4.0 x8, 8GB GDDR6, DP, 60W, -40°C to +85°C M3A2000-VYX-A1...
  • Page 21 Aetina Corporation | Headquarters 2F-1, No.237, Sec.1, Datong Rd., Xizhi Dist., New Taipei City 221, TAIWAN Phone: +886-2-7709 2568 Fax : +886-2-7746 1102 Mail : sales@Aetina.com www.Aetina.com Copyright © 2022 Aetina Corporation. All rights reserved.

This manual is also suitable for:

M3a2000-vya-a1M3a2000-vya-a2
