- Page 1 User Manual 3U VPX Rugged Module Aetina V3T3000-QRC...
- Page 2 Document Change History Version Date Description Authors 2022/01/13 Initial Release. Emily Chou...
-
Page 3: Table Of Contents
Contents 1. General Overview..............................- 1 - 1.1 Features ................................- 1 - 1.1.1 GPU ................................- 1 - 1.1.2 Board ................................- 1 - 1.1.3 Memory Configuration ..........................- 2 - 1.1.4 Support ................................. - 2 - 1.1.5 Display Support ............................- 2 - 1.1.6 Cooling System ............................. - Page 4 5. Embedded GPU Thermal Specifications ........................- 9 - 5.1 Thermal Policy ..............................- 9 - 6. Certificates and Agencies ............................- 10 - 6.1 Certifications ..............................- 10 - 6.2 Agencies ................................- 10 - 7. Appendix ................................. - 11 - 7.1 Ordering Information ............................
-
Page 5: General Overview

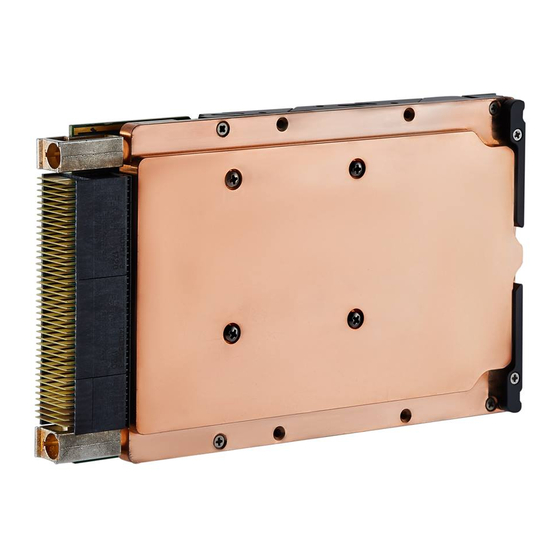

1. General Overview The V3T3000-QRC includes an NVIDIA® Quadro® Turing™ RTX3000 embedded GPU in a rugged 3U VPX module. It supports operability in an extended temperature range of - 40°C to 71°C, suitable for mission-critical harsh environments. The Module MXM RTX3000 includes CUDA cores for parallel processing, Tensor cores for dedicated AI inference and ray tracing cores for superior rendering speeds. -
Page 6: Memory Configuration
1.1.3 Memory Configuration • Memory clock: 14.0 Gbps • Interface: 192-bit • Local frame buffer: 6GB (6 pieces 256M x 32 GDDR6, FBGA-180 package) 1.1.4 Support • Nvidia CUDA Technology (Compute capability 7.5) • Nvidia GPU Boost 3.0 • Microsoft DirectX 12 •... -
Page 7: Configuration
-40°C to 85°C Operating Humidity 5~90%, No Condensation. Display Options Table 1.2 list the V3T3000-QRC supports 4x DisplayPort outputs to VPX P2 by default, with display options as shown below. Table 1.2: Display Options Displays Supported for Each Interface DP_A... -
Page 8: Functional Description
Figure 2.1 V3T3000-QRC Block diagram 2.2 General Purpose Graphics Processing Unit The AETINA V3T3000-QRC is based on TURING Quadro RTX 3000 GPU from Nvidia. 1920 CUDA core enabled. Base core clock is 945 MHz and it is compliant with Nvidia’s CUDA computing capability 7.5. -
Page 9: Display Interface
• Maximum bandwidth: 25.9 GB/s/connector 2.3.3 Analog Output This model does not support Analog output. 2.3.4 Hot Plug The V3T3000-QRC supports Hot Plug detect for digital monitors. 2.4 PCI Express The V3T3000-QRC supports a native x16 PCI Express Gen3/2/1 bus interface. - 5 -... -
Page 10: Pin Definition
3. Pin Definition VPX connector Pinout 3.1.1 P0 connector Table 3.1: Connector pinout Table 3.2: Connector pinout (continued) - 6 -... - Page 11 Table 3.3: Connector pinout (continued) INPUT Bidirectional OUTPUT Power - 7 -...
-
Page 12: Mechanical Specifications
4. Mechanical Specifications Dimensions The Actual dimensions of the V3T3000-QRC are shown in below. Figure 4.1: Dimensions of V3T3000-QRC - 8 -... -
Page 13: Embedded Gpu Thermal Specifications
5. Embedded GPU Thermal Specifications Thermal Policy GPU Core Clock throttles at temperature (T ) above those listed in table 6.1, which lists the throttling temperature and behavior. Thermal throttling is necessary to ensure that the hottest temperature on the die does not exceed the sense temperature for prolonged periods of time. -
Page 14: Certificates And Agencies
6. Certificates and Agencies 6.1 Certifications Driver for WHQL certified Windows 10 available from Nvidia. 6.2 Agencies Conformité Européenne (CE) : TBD. Federal Communications Commission (FCC) : TBD. - 10 -... -
Page 15: Appendix
7. Appendix 7.1 Ordering Information Table 7.1 Models available Model Number Description V3T3000-QRC VPX3U, NVIDIA Quadro RTX 3000, 6GB GDDR6, Conduction-cooled, 0°C to +55°C (at Wedge-lock) V3T3000-QRC-H VPX3U, NVIDIA Quadro RTX 3000, 6GB GDDR6, Conduction-cooled, -40°C to +71°C (at Wedge-lock) - Page 16 BIOS flashes, firmware upgrades, or the like. Aetina assumes no obligation to update or otherwise correct or revise this information. However, Aetina reserves the right to revise this information and to make changes from time to time to the content hereof without obligation of Aetina to notify any person of such revisions or changes.
