Good Earth Lighting RE1359-RGB-06LFR-G Instructions Manual

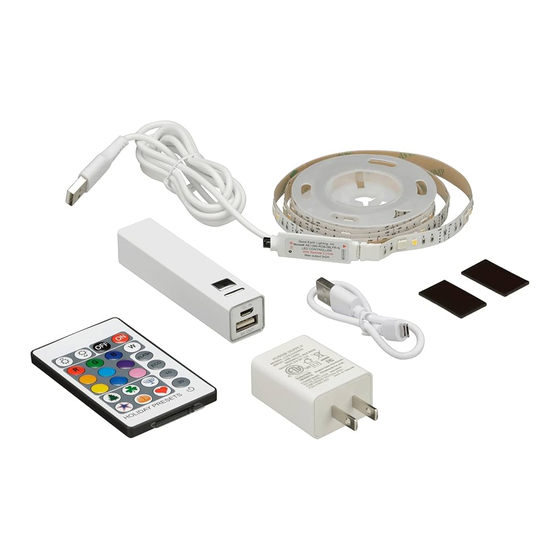

Hardware kit* / Trousse de quincaillerie*/ Kit de aditamentos*
Remote control
Télécommande
2600mAh power bank
Control remoto
Port d'alimentation électrique de 2 600 mAh
Banco de alimentación de 2600 mAh
USB adapter
Adaptateur USB
Adaptador USB
* Actual hardware may di er from illustration./ La quincaillerie incluse peut être di érente de l'illustration./ Los aditamentos reales pueden diferir de los que se muestran en la ilustración.
THIS LIGHT IS NON-CUTTABLE AND NON-LINKABLE!
ATTENTION
● No parts are serviceable on this product. DO NOT attempt to
repair LED tape. This tape light cannot be cut or extended.
● For electrical specs, see labels on tape, power bank, or USB
adapter.
● For INDOOR locations only.
● This tape light is NOT extendable. Additional LED tape light
lengths CANNOT be added.
● Use only insulated staples or plastic ties (not included) to
secure the cords.
● If powering tape with USB adapter, DO NOT use with an
extension cord. Use a power strip with integral overcurrent
protection to supply power to the fixture. NEVER use a power
strip unless the plug can be fully inserted.
● LEDs gradually emit less light over their lifetime.
Before first use, plug in USB wall charger and micro USB cord (included) to charge power bank until the red light stops blinking.
CONTINUOUS ON
BATTERY
~3.5 hours to 50% lumens,
DURATION*
~6 hours to 0% lumens
Light can be plugged in for continuous use.
Attaching the IR Receiver to the LED Tape Light
1
Before first use, orient label side of IR receiver
with LED side of tape. The red arrow should
match with the +5V on LED side of the tape.
Attaching Tape Light to Surface
Select a location for the LED tape light and mark it. Verify
2
that the USB cord reaches the nearest USB port.
Thoroughly clean the mounting surface with rubbing
alcohol and allow it to dry. DO NOT PLUG THE USB CORD
INTO THE POWER SOURCE UNTIL INSTALLATION IS
COMPLETE. Remove the backing liner carefully so as to not
accidentally peel away the mounting glue of the LED tape
light. Place the LED tape light in the desired position.
Carefully apply pressure to the entire length of the LED
tape light to ensure proper adhesion.
1. Remove the plastic
battery tab in the remote
control by pulling it
straight out of the remote
and discard.
Luz RVA con cinta autoadhesiva recargable de 1,83 m con adaptador (Página 5)
IR (infrared) receiver
Récepteur IR (infrarouge)
Receptor IR (Infrarrojo)
ENGLISH INSTRUCTIONS
SAFETY INFORMATION
This product has a USB connector allowing quick and easy connection to televisions and laptop computers. The LED tape lights can also
be plugged into an electrical outlet with a USB power adapter (included) or power bank (included) for portable use. DO NOT ALTER THE
TAPE LIGHT. READ THE ENTIRE MANUAL PRIOR TO INSTALLATION. Verify package and hardware contents. Save these instructions.
WARNING
● DO NOT INSTALL WHILE UNIT IS PLUGGED IN.
● DO NOT plug the USB cord into the power source until
installation is complete.
● DO NOT touch, operate, or install fixture while in contact
with water. Not intended for illumination of aquariums.
● DO NOT look directly at lighted LEDs for any length of
time.
● DO NOT USE THIS FIXTURE WITH A DIMMING CIRCUIT.
If dimmer controls are present, remove and replace.
Use only provided remote to control output.
● If unfamiliar with electrical installations, contact a
qualified electrician to install.
● This product contains lithium batteries. Batteries may
leak harmful liquids or ignitable materials or explode,
causing injury and product damage. Once the batteries
are depleted and no longer charge, the entire unit
should be disposed of properly.
CHARGING
RECHARGE TIME
~3.5
Hours
INSTALLATION
Do not reposition tape light once it is mounted. Doing
so will reduce the adhesiveness of the tape backing.
Once in place, allow the tape adhesive
to cure for 24 hours before use.
REMOTE CONTROLS
2. The maximum operating distance of the remote
control with new batteries is approx. 15 ft. with a
direct line of sight between the remote control and
the IR sensor.
NOTE: Remote control operation requires direct
line of sight between the remote control and the
IR sensor.
6-Ft. Rechargeable RGB Tape w/ Adapter (Page 1)
Ruban RVB rechargeable de 1,83 m avec adaptateur (Page 3)
Model / Modèle / Modelo #: RE1359-RGB-06LFR-G
Micro-USB Cord
Cordons Micro-USB
Cable micro USB
LED tape light
Ruban lumineux à DEL
Luz LED con cinta autoadhesiva
CAUTION
● DO NOT mount over sinks or stoves.
● NOT intended for recessed installation in ceilings or so ts. DO NOT run ANY cords
behind walls, ceilings, so ts, cabinets, or a similar permanent structure where it
may be inaccessible for examination.
● Tape light must be fully uncoiled for proper operation, and to prevent overheating.
● DO NOT puncture, damage, or dismantle the power bank or attempt to replace the
battery.
● Keep LED tape and power bank away from fire; erosive materials; corrosive and/or
explosive gas; chemical, medical, and electronic devices, including magnetized data
devices; and hot steaming areas, as damage can occur.
● Always follow the good practice of charging the LED light, which contains a lithium
ion battery, to its full capacity before operation or prolonged storage.
*Expected duration from the first full charge
Connecting USB Cord
Once the LED tape lights are firmly in
place, plug the USB connector into a
television, computer laptop, USB adapter,
or power bank.
Required/ Nécessaire
Se necesita
x2 Adhesive magnetic plate
x2 Plaque magnétique adhésive
x2 Placa magnética adhesiva
3
15 ft.
4,57 m
