Summary of Contents for Qu-Bit Electronix Mojave

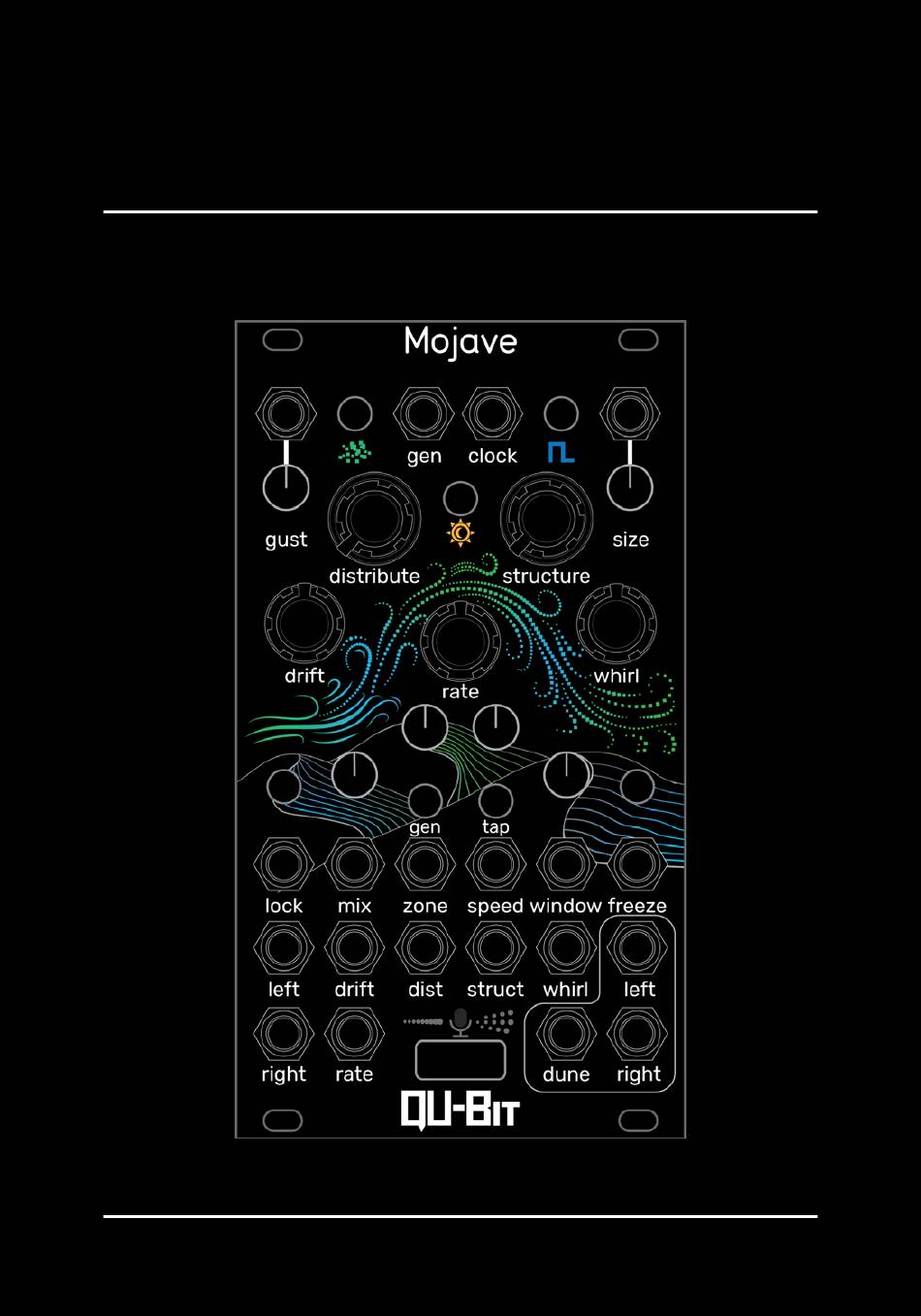

  • Page 1 Mojave quickstart...

  • Page 2: Module Installation

    Make It Grain. Mojave is a granular sandstorm. Drawing its inspiration from vast swaths of desert in the American Southwest, Mojave is a live granular processor that uses microscopic bits of audio to create beautifully crafted sonic landscapes. Whether you are constructing pebbles or sandstone monuments, Mojave is the perfect balance between exploratory sound design and harmonious sublimity.
  • Page 3 Initial Knob Positions Mojave clock gust size distribute structure drift whirl rate lock zone speed window freeze left drift dist struct whirl left right rate right dune *These are the recommended initial knob positions, but who are we to pigeonhole you? It’s your party, throw it how you...

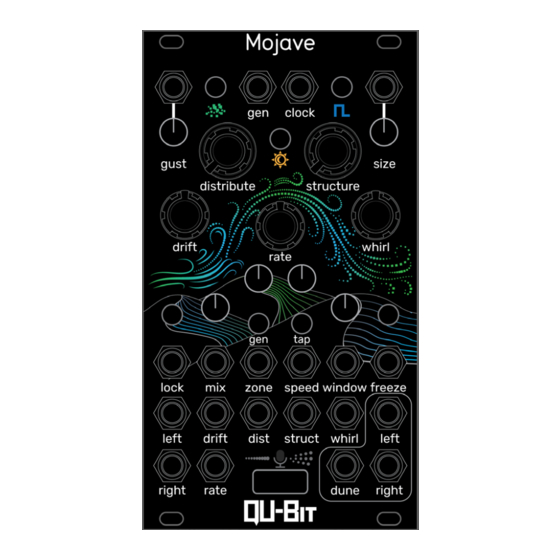

  • Page 4: Front Panel

    Front Panel Mojave Tactile Controls CV Inputs/ Outputs clock Gate Inputs/ Outputs Audio Inputs/ gust size Outputs distribute structure drift whirl rate lock zone speed window freeze left drift dist struct whirl left right rate dune right...
  • Page 5 Mix CV input. Range: -5V to +5V Tap/Clock Sets internal clock rate by using tap tempo. Use the gate input to sync Mojave to an external clock. Clock gate input. Threshold: 0.4V Generates new granular events determined by the module settings.
  • Page 6 Front Panel Mojave Tactile Controls CV Inputs/ Outputs clock Gate Inputs/ Outputs Audio Inputs/ gust size Outputs distribute structure drift whirl rate lock zone speed window freeze left drift dist struct whirl left right rate dune right...
  • Page 7 Size CV input. Range: -5V to +5V Zone Sets the position within the live-streaming audio buffer where Mojave will generate grains from. Zone CV input. Range: -5V to +5V Speed Controls the pitch of new grains, and tracks 1V/ Oct.
  • Page 8 Front Panel Mojave Tactile Controls CV Inputs/ Outputs clock Gate Inputs/ Outputs Audio Inputs/ gust size Outputs distribute structure drift whirl rate lock zone speed window freeze left drift dist struct whirl left right rate dune right...

  • Page 9: Clock Mode

    Lock Activating this function preserves the audio in the buffer, preventing the live input from being read in. Grains are generated from this locked buffer, which can be scrubbed using the Zone control. Lock gate input. Threshold: 0.4V Freeze While active, all existing grains loop, and no new grains are generated while the audio buffer continues to refresh.
  • Page 10 Front Panel Mojave Tactile Controls CV Inputs/ Outputs clock Gate Inputs/ Outputs Audio Inputs/ gust size Outputs distribute structure drift whirl rate lock zone speed window freeze left drift dist struct whirl left right rate dune right...
  • Page 11 • Speed • Drift • Zone Dawn Color: Blue Mojave generates grains within a major scale. Color: Green Mojave generates grains within a minor scale. Dusk Color: Gold Mojave generates grains within a chromatic scale. Twilight Color: Purple Mojave generates grains with no adherence to any scales or synchronous rhythms.
  • Page 12 Front Panel Mojave Tactile Controls CV Inputs/ Outputs clock Gate Inputs/ Outputs Audio Inputs/ gust size Outputs distribute structure drift whirl rate lock zone speed window freeze left drift dist struct whirl left right rate dune right...
  • Page 13 Dune Output A configurable CV/Gate output that is algorithmi- cally generated by Mojave. Swap between output options via the Narwhal web app. See the manual for a full list of available outputs! CV Output (Default): Variable modulation source generated by the environmental conditions at play in Mojave.
  • Page 14 Front Panel Mojave Tactile Controls CV Inputs/ Outputs clock Gate Inputs/ Outputs Audio Inputs/ gust size Outputs distribute structure drift whirl rate lock zone speed window freeze left drift dist struct whirl left right rate dune right...
  • Page 15 Used for firmware updates, alternate firmware, configurable settings, and more! See the manual for full details. Configurable Settings App Head to Narwhal to configure your Mojave’s internal settings: Audio Input Left Audio input for the left channel. Normals to the right input when no cable is present in Audio Input Right.
  • Page 16 Patch: Mojave clock gust size distribute structure drift whirl rate lock zone speed window freeze left drift dist struct whirl left right rate dune right...
  • Page 17 Patch: Mojave clock gust size distribute structure drift whirl rate lock zone speed window freeze left drift dist struct whirl left right rate dune right...
  • Page 18 Patch: Mojave clock gust size distribute structure drift whirl rate lock zone speed window freeze left drift dist struct whirl left right rate dune right...
  • Page 19 Patch: Mojave clock gust size distribute structure drift whirl rate lock zone speed window freeze left drift dist struct whirl left right rate dune right...
  • Page 20 With every Mojave sold a portion of the proceeds will go to the Joshua Tree National Park Association, and will help to preserve a portion of the Mojave desert that we hold dear to our hearts. Happy Patching, The Qu-Fam Learn More.
