  • Page 1 Tone...

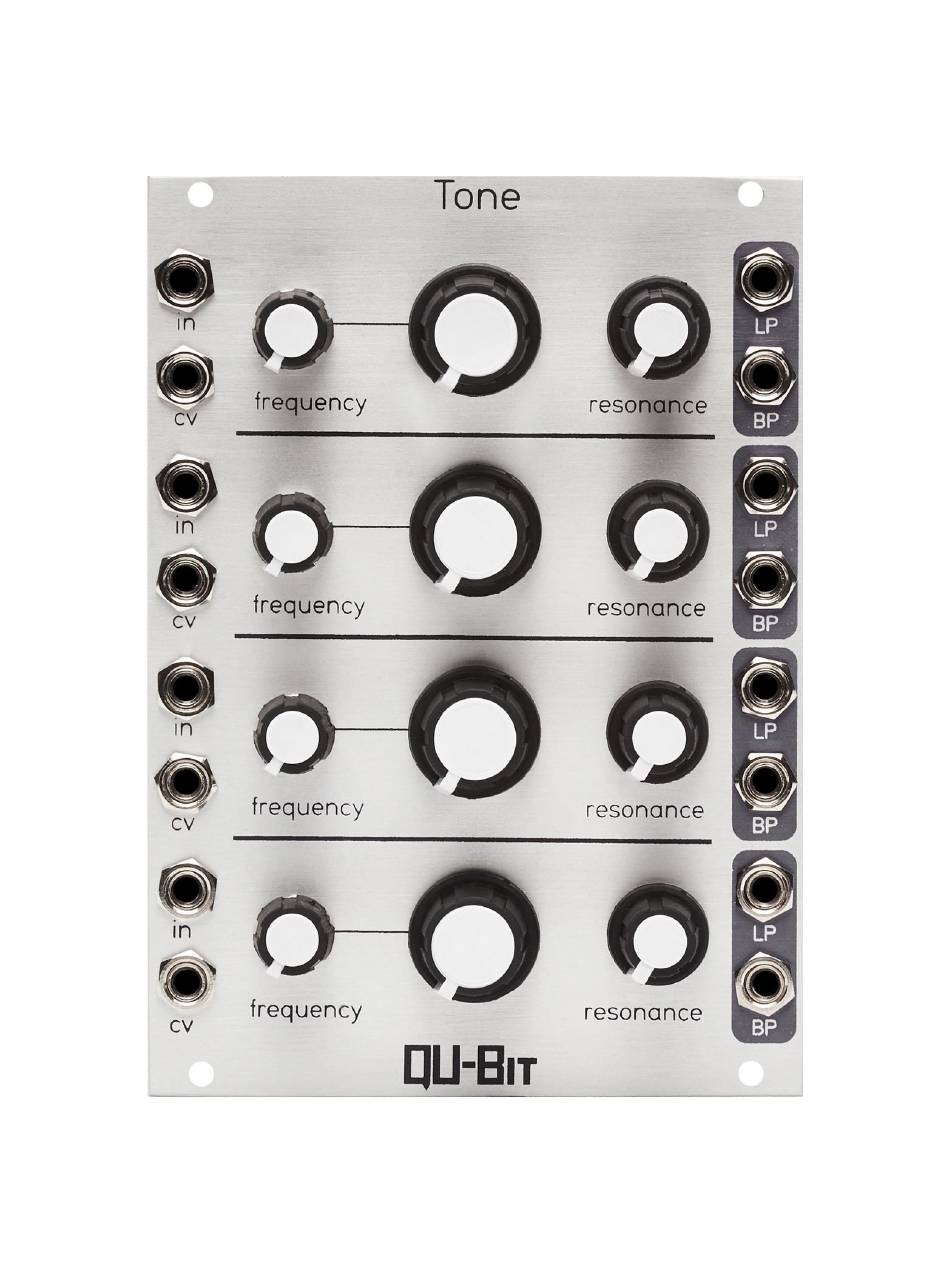

  • Page 2 Description Tone is a quad, voltage controlled filter with low pass and band pass outputs. Its four channel architecture enables the intuitive patching of shimmering, polyphonic textures. The 24dB slope provides a warm, buttery character. Self oscillation allows each channel to double as a sine wave oscillator with v/oct tracking across four octaves.
  • Page 3 Table of Contents Installation/Specifications Tone General Functions Overview Calibration...
  • Page 4 12 volts. In most systems, the negative 12 volt supply line is at the bottom. The power cable should be connected to the Tone with the red band facing the bottom of the module.
  • Page 6 Also known as the corner frequency, or -3dB down point 5. Resonance: Sets the resonance, or “Q” of the filter When fully clockwise, the Tone will self-oscillate and output a very pure sine tone whose pitch is determined by the Frequency knob...
  • Page 7 6. LP: Lowpass filter output 7. BP: Bandpass filter output Controls 1-7 are replicated on channels 2-4 Calibration There is one V/oct trimmer per channel on the back side of the module that is used for calibrating the CV tracking of the cutoff frequency. A small flathead screwdriver is needed for calibration.
