SPROUT Invoke - Bluetooth Headphones Manual

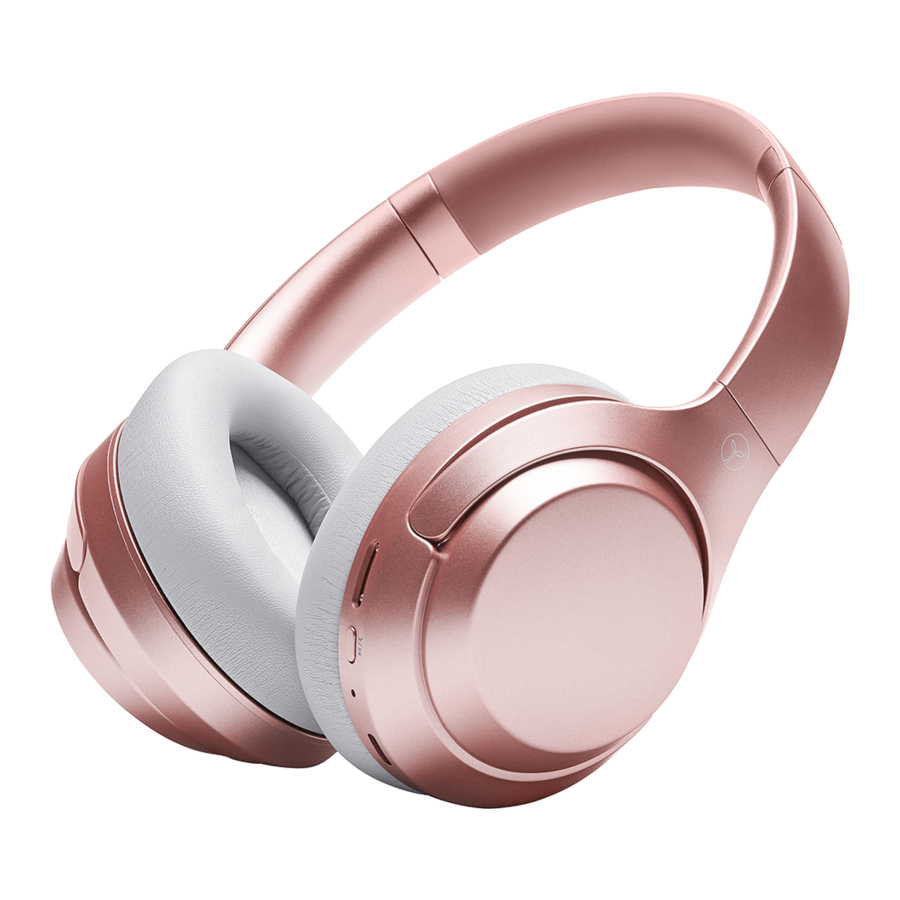

Product Overview

1. Power on/off
2. AUX input
3. USB-C charging input
4. LED indicator
5. Multi-function button
6. Volume control

What's in the box?

For optimum performance and safety, please read instructions carefully before usage.

Please keep this manual for future reference.

1x Invoke Bluetooth Headphones
1x USB A to USB C cable (Black)
1x AUX cable
1x Product manual

Quick Start Guide

Charging your Invoke Bluetooth Headphones

1. Insert the USB-C end of the charging cable into the charging input as shown.
2. Insert the USB-A end of the cable into a power source* to charge. The LED indicator will be red while charging is in progress. The LED indicator will be blue when charging is complete. A full charge will take approximately 2.5 hours.

* Using a USB Type C charging cable to connect to a 5V-2A (10W) adapter is recommended. Adapters with larger wattage can also be used (maximum 24W). Car chargers, power banks or docking stations may have fluctuating output. Charging using these devices is not recommended.

Connecting to your Invoke Headphones via Bluetooth

• Your mobile device needs to be within 10 meters of the Invoke Headphones
• Make sure your Invoke Headphones' battery has a sufficient charge
• Compatible with iOS, Android and other Bluetooth devices

To pair your device

1. To enter into pairing mode from power off, press and hold the power button until you hear "power on". The LED indicator will flash blue and red when your Invoke Headphones are in pairing mode.
2. Turn on Bluetooth on your mobile phone/music device.*
3. 'Invoke BT Headphones' will appear on your mobile phone/music device. Select 'Invoke BT Headphones' to pair. The LED indicator will flash blue every 5 seconds when pairing is successfully complete.
4. Enjoy your music.
5. After the initial pairing, the headphones will always automatically pair with the previously paired device.

* If you are not familiar with Bluetooth pairing for your mobile phone or music device, refer to the user guide for your mobile phone/music device for instructions to pair a new device using Bluetooth.

Connecting via AUX

Connect your Invoke Headphones to a smartphone, tablet or other audio device using the AUX cable provided.

Controls

Troubleshooting

Turning your device on and off

If you are having trouble turning your device on and off:

• Ensure that the battery is charged, press and hold the power button
• Ensure that there is no damage to the product. If there is no damage, please contact customer service

Using buttons and controls

Invoke's buttons are designed to give tactile feedback:

• Once a button is pressed, you will feel it pop back up. If you do not feel the button pop back up, please repeat

Specifications

• Driver: 32Ω, 40mm
• Bluetooth V5.1
• Operation range - 10m
• Actions 3015 Chipset
• Rechargeable Battery
• 90 hours play time at 50% volume/ 50 hours play time at 70% volume
• 800 mAh lithium polymer battery
• Type C USB charging input (5V600mA)
• Microphone sensitivity: -43dB±3dB@1KHz
• Sensitivity: 118dB±3dB@1KHz
• Charging time: 2.5 hours

Important Safety Information

Read all instructions and warnings prior to using this product. Improper use of this product may result in product damage, excess heat, toxic fumes, fire or explosion.

• Do not use your Invoke Bluetooth Headphones near an open fire, heat source or excessive heat
• Do not use your Invoke Bluetooth Headphones near water
• Do not use your Invoke Bluetooth Headphones while charging
• Protect your charging cable from being pinched particularly at the connectors
• Unplug your charging cable during lightning storms or when unused for long periods of time
• Avoid listening at excessive volume levels or for prolonged periods.
• Do not disassemble this device or attempt to modify it in any manner
• All Sprout products have gone through a thorough quality assurance inspections. If you find that your device is excessively hot, is emitting odour, is deformed, abraded, cut or is experiencing or demonstrating an abnormal phenomenon, immediately stop all product use and contact Sprout

Sprout Accessories Pty Ltd
W: www.sproutinc.com.au
E: sproutenquiries@sproutinc.com.au
