Speechi SPE-400W-I-P Manual

Interactive function
Hide thumbs

Advertisement

Quick Links

Download this manual
INTERACTIVE FUNCTION MANUAL
Interactive solutions

Advertisement

loading
Need help?

Need help?

Do you have a question about the SPE-400W-I-P and is the answer not in the manual?

Questions and answers

Related Manuals for Speechi SPE-400W-I-P

Summary of Contents for Speechi SPE-400W-I-P

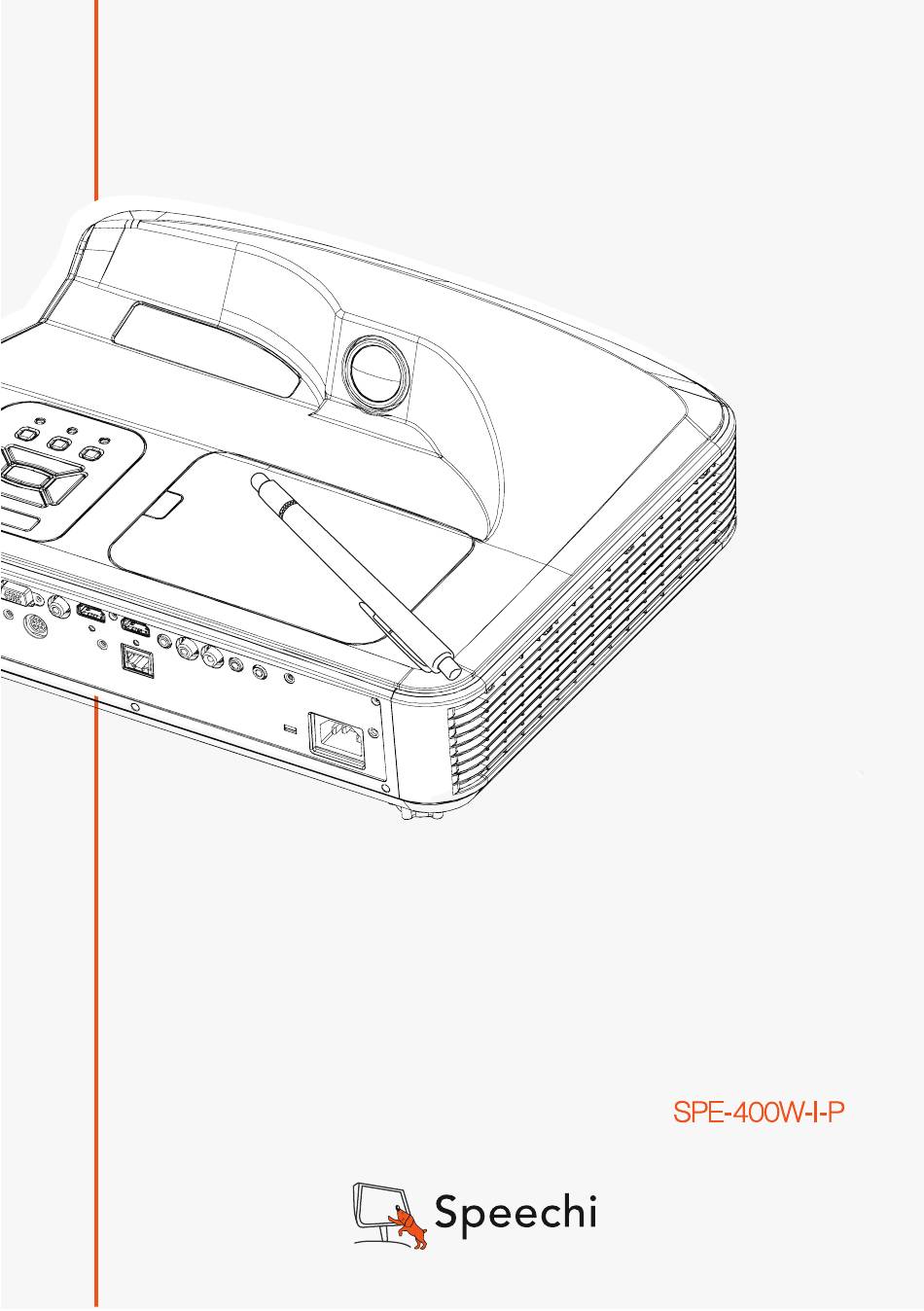

  • Page 1 INTERACTIVE FUNCTION MANUAL Interactive solutions...

  • Page 2: Table Of Contents

    Contents of the Accessory....................2 System Requirements-Windows..................3 System Requirements-Mac....................4 Accessories Introduction..................... 5 Operation Guide for Windows & Mac.................6 Operation Guide for Windows OS _LightPen-Dual............12 Operation Guide for Mac OS _LightPen3................23 Troubleshooting........................27 Contents of the Accessory Please make sure that following items are included in the Accessory Bag. If any items are missing, contact your dealer.

  • Page 3: System Requirements-Windows

    System Requirements-Windows Interactive function is provided by "LightPen-Dual" software. To ensure the interactive function work properly, please check your computer system to see if it meets the following conditions. TouchCalibration System Requirements OS Required Microsoft Windows XP (SP3)/Windows 7 (32bit/64bit)/Windows 8/ Windows 8.1 (.

  • Page 4: System Requirements-Mac

    System Requirements-Mac Interactive function is provided by "LightPen3" software. To ensure the interactive function work properly, please check your computer system to see if it meets the following conditions. TouchCalibration System Requirements OS Required Mac OS X v10.5 above Processor Type Intel®...

  • Page 5: Accessories Introduction

    Accessories Introduction Function Key on the "Light Pen" Pen tip with touch sensor How to use this While the tip of pen is pressed to the hard screen, IR is emitted from it and the projector detects the position of it. 1) Position the tip of the pen on the screen.

  • Page 6: Operation Guide For Windows & Mac

    Operation Guide for Windows & Mac 1. Install Driver ● Windows Step 1. Insert the "Owner's Manual" CD-ROM into the CD drive. Step 2. Open the "LightPen Software for Windows" folder in the CD- ROM. Step 3. Double click " Setup.exe" by mouse. And then the window will appear as below.
  • Page 7 Operation Guide for Windows & Mac (2) You can choose to install folder depend on your requirements, or use the default folder. Then click "Next" to continue. (3)Please wait for a while for the installation is finished. ● Driver Installation- Mac Step 1.
  • Page 8 Operation Guide for Windows & Mac 3. Operation Mode Default is Touch Mode. Please Click "Operation Mode" from "Touch Mode" to "Pen Mode". Windows 7 and Windows 8 operating system support multi-point touch control. *Only single-point touch is available for Windows XP and Mac OS X. 4.
  • Page 9 Operation Guide for Windows & Mac 4.2 Select Manual Touch Area Setting: (1) After the camera captures the projection image, a Touch Area window will pop up. If the captured image is not clear enough, please re-select “Ambient light mode selection” from “Auto” to “Bright” or “Dim”...
  • Page 10 Operation Guide for Windows & Mac 5. Calibration 5.1 Select Auto Calibration Note: If the fail message pops up, follow below steps to trouble-shoot and do Auto Calibration again. • Close all software application • Reduce ambient light • Do not obstruct or shake lens during calibration •...
  • Page 11 Operation Guide for Windows & Mac 6. Trouble-shooting Viewer Sometimes infrared red light (IR light) from ambient light may interfere with touch performance. Trouble-shooting Viewer shows real time image for debug purpose. Switch between Visible Light/IR Light to remove interference on whiteboard/from ambient observed via Trouble- shooting Viewer.

  • Page 12: Operation Guide For Windows Os _Lightpen-Dual

    Operation Guide for Windows OS _LightPen-Dual 1. LightPen Software Installation Step 1. Insert the "Owner's Manual" CD-ROM into the CD drive. Step 2. Open the "LightPen Software for Windows" folder in the CD- ROM. Step 3. Double click " Setup.exe" by mouse. And then the window will appear as below.
  • Page 13 Operation Guide for Windows OS _LightPen-Dual (2) You can choose to install folder depend on your requirements, or use the default folder. Then click "Next" to continue. (3) Confirm the information listed and select "Install". (4) Please wait for a while for the installation. Installation is finished.
  • Page 14 Operation Guide for Windows OS _LightPen-Dual 2. LightPen-Dual Function When you complete the installtion of LightPen-Dual and from "Start Menu/LightPen/LightPen-Dual" to start it, you see the tool bar in the right side as shown below.
  • Page 15 Operation Guide for Windows OS _LightPen-Dual 2.1. Function of each icon in the Tool bar Icon Description Mouse Change function to Computer Mouse. Red pen Change function to red pen. Green pen Change function to green pen. Blue pen Change function to blue pen. Marker pen Change function to marker pen.
  • Page 16 Operation Guide for Windows OS _LightPen-Dual 2.2 Advanced function in Tool bar Drawing Tool Select , then Drawing Tool function menu will be shown on the screen as below. Plese select the icon you want to use. Dual Pen Select , then Dual Pen Mode setting menu will be shown on the screen as below.
  • Page 17 Operation Guide for Windows OS _LightPen-Dual (2-1) <Full Screen Mode> Use two pens at the same time on full screen by same setting. <Split Screen Mode> Use two pens at the same time on two split screen by different setting.
  • Page 18 Operation Guide for Windows OS _LightPen-Dual (2-2)The description of two pens function Icon Description Red pen Change function to red pen. Green pen Change function to green pen. Blue pen Change function to blue pen. White pen Change function to white pen. Thin round pen Draw with a thin round script.
  • Page 19 Operation Guide for Windows OS _LightPen-Dual Whiteboard Mode Select screen will change to white color background. Original Page up and Page down function icon on Toolbar also change to import background icon and import whiteboard icon. Select , you can see the below interface. You can select any picture you want to be used on background.
  • Page 20 Operation Guide for Windows OS _LightPen-Dual (4). Edit Tool Select , edit tool bar is shown as blow. Please select the function you want to use. Icon Description Select drawing line as an object. An object can enlarge, decrease, or move. Rotate the drawing object you choice.
  • Page 21 Operation Guide for Windows OS _LightPen-Dual 2.4 PowerPoint® Tool This function can be executed by LightPen-Dual. *The PowerPoint® Tool does not support Microsoft Office PowerPoint® 2002.* If you click mouse icon on the task bar and select "PowerPoint® Tool setting" as "ON", when you use PowerPoint® and show your PowerPoint®...
  • Page 22 Operation Guide for Windows OS _LightPen-Dual (1)Function of each icon in PowerPoint® Tool bar Icon Description Make toolbar as a small icon. Change PowerPoint® Toolbar to another side. Change function to Computer Mouse. Change function to Computer Mouse Right Key. Change function to red pen.

  • Page 23: Operation Guide For Mac Os _Lightpen3

    Operation Guide for Mac OS _LightPen3 Interactive function is provided by "LightPen3" software 1. LightPen3 Installation Step 1. Insert the "Owner's Manual" CD-ROM into the CD drive. Step 2. Open the "LightPen Software for Mac" folder in the CD-ROM and copy“LightPen3.zip” to the disk. Step 3.Double click and move LightPen3 ICON to computer screen and execute it.
  • Page 24 Operation Guide for Mac OS _LightPen3 2.2 Function of each icon in the Tool bar Icon Description Mouse Change function to Computer Mouse. Red pen Change function to red pen. Green pen Change function to green pen. Blue pen Change function to blue pen. Marker pen Change function to marker pen.
  • Page 25 Operation Guide for Mac OS _LightPen3 2.3 Advanced function in Tool bar Drawing Tool Select , then Drawing Tool function menu will be shown on the screen as below. Plese select the icon you want to use. Whiteboard Mode Select , screen will change to white color background.
  • Page 26 Operation Guide for Mac OS _LightPen3 ii. Select , background will turn to White board mode. If you want to exit White board mode, just click again. Edit Tool Select , edit tool bar is shown as blow. Please select the function you want to use.

  • Page 27: Troubleshooting

    Troubleshooting 1. Q: Why cannot the PC boot when the USB cable which connects PC and projector is already plugged in? A: 1. Unplug USB cable from PC; or 2. Go to BIOS setup page of PC and modify the “Boot priority order.” Choose Hard disk as top priority, save the change and restart PC.
  • Page 28 Troubleshooting Q: Why utility icon ( ) is red, not green ( A:Red icon indicates fail connection, this may be caused by following: 1. Check if interactive function is enabled via OSD selection 2. Unplug/re-plug in the USB cable and check again. 3.
  • Page 29 Troubleshooting 4. Q: What to do when there is only single touch point? A: 1. Re-plug USB cable from PC. 2. Go to “Control Panel” and make sure “Tablet PC Components” is selected. 5. Q: When should Calibration and Touch Area Setting be done? A: Please perform Calibration and Touch Area setting during first installation.
  • Page 30 Troubleshooting 6. Q: What to do when Auto Calibration and Auto Touch Area Setting both failed? A: 1. Check “Ceiling Mount” OSD setting first. The interactive function supports Ceiling Mode only 2. When projector OSD message is shown, this may result failure to Auto Calibration and Auto Touch Area Setting.
  • Page 31 Troubleshooting 4. Please check Projector Lamp Power Mode selection. Lower lamp brightness (ECO mode) may affect both Auto Touch Area Setting and Auto Calibration. Please switch to Normal mode to complete Touch Area Setting and Calibration. 5. Please check Projector Color Mode selection. To ensure accuracy of both Auto Touch Area Setting and Auto Calibration, it is suggested to switch Color mode to Bright Mode.
  • Page 32 Troubleshooting 9. Q: Why I cannot execute calibration on the circle targe mark? A: (1) Please check if "Pointer" or "Light Pen" works: (1-1) Please check if "Pointer" or "Pen" battery is low or battery cap is loose. (1-2) When using "Pointer" or "LightPen", be sure to locate the tip of the "Pointer"...
