INTERACTIVE FUNCTION MANUAL

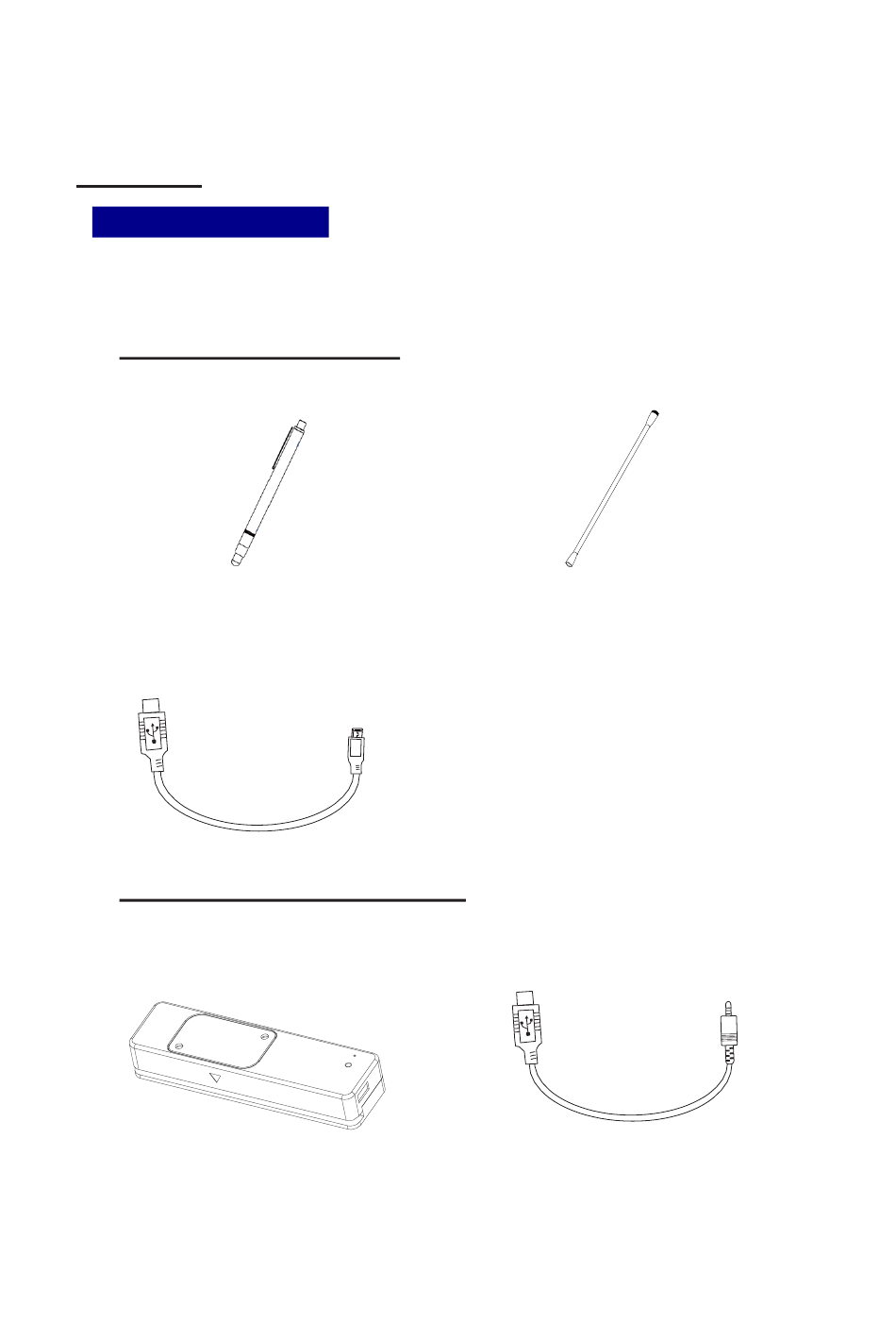

Accessories
Contents of Your Box
Following items are depending on your model, please check with your
dealer.
Interactive with Light Pen
Light Pen
USB-mini cable
(for Projector to PC)
Interactive with Curtain Module
Optical Touch Curtain
(with 3 screws)
Pointer Extender
USB cable
(for Projector to Curtain Module)
(*optional)

Advertisement

loading
Need help?

Need help?

Do you have a question about the SPE-400-W-I-T and is the answer not in the manual?

Questions and answers

Related Manuals for Speechi SPE-400-W-I-T

Summary of Contents for Speechi SPE-400-W-I-T

  • Page 1 INTERACTIVE FUNCTION MANUAL Accessories Contents of Your Box Following items are depending on your model, please check with your dealer.  Interactive with Light Pen Pointer Extender Light Pen (*optional) USB-mini cable (for Projector to PC)  Interactive with Curtain Module Optical Touch Curtain USB cable (for Projector to Curtain Module)

  • Page 2: System Requirements

    Dummy Pen System Requirements Windows To ensure the interactive function work properly, please check your computer system to see if it meets the following conditions. Touch Calibration / LightPen3 OS Required Windows 7 (32bit/64bit)/Windows 8/ Windows 10 (Must be installed. NET Framework 4.0) Processor Type Intel®...

  • Page 3: Part Name And Functions

    Part name and functions Function Key on the "Light Pen" Pen tip with touch sensor How to use this While the tip of pen is pressed to the hard screen, IR is emitted from it and the projector detects the position of it. 1) Position the tip of the pen on the screen.
  • Page 4 Instruction of the "Pointer Extender" (*optional) How to use this Step 1: Remove the light pen head from the light pen body. Step 2: Assemble the extension rod with the light pen.
  • Page 5 Optical Touch Curtain *It depends on your model, please check with your dealer. ① POWER indicator - It lights red when the Optical Touch Curtain is in installation mode. The visible light would show up. - It lights green during normal operations. ②...
  • Page 6  For long-term installation: Use the screws to fix the curtain with the base plate onto the whiteboard or other smooth surface. Place the curtain on the position upper than 7cm of the center/top for the projection screen. Adjustment> < After the installation, connect the Curtain and the Projector via the USB cable.
  • Page 7 Use the slotted screwdriver to adjust the knob  in a clockwise. You will see the laser beam hit onto the projection screen. Adjust the knob  accordingly to make the laser beam as parallel to the Curtain.
  • Page 8 Adjust the knob  to move the laser beam all the way down till out of the projection screen and ensure the laser beam is parallel with the Curtain. Ensure the laser beam looks like a solid line and parallel with the projection screen as the following picture.
  • Page 9 You can use the enclosed Laser Card to ensure the laser beam as solid as required. After all the adjustment, press the ‘Setting’ button on the curtain then the ‘Power’ light will turn green. Revert to using Touch Mode to start utilizing interactive features.
  • Page 10  Indicator and status Green: Red:   Standby mode Installation (connected with mode: ready for projector) Laser beam  Pen mode: adjustment. ready for use with Light Pen Blue: Flashing Blue:   Normal mode: Error mode: ready for use need to check with Touch the setting of...
  • Page 11 Step (1) Click "SPDriver" and then "Setup Wizard" window will appear (as shown as following picture). Click "Next" to install. You can choose the folder to install software as your desire and then click the “Next” or just simply click the “Next” to install to default folder. Installation under processing.
  • Page 12 Installation completed. LightPen3 Software Installation Step 1. Insert the “Owner’s Manual” CD-ROM into the CD drive. Step 2. Open the “LightPen Software for Windows” folder in the CD-ROM. Step 3. Double click “Setup.exe” and the POP up window as following picture. Step (1) Click "LightPen3"...
  • Page 13 You can choose the folder to install software as your desire and then click the “Next” or just simply click the “Next” to install to default folder. (3) Check the installation information and then click “Install” to start the process. Installation under processing.
  • Page 14 Installation completed. Initial Setting of Touch Calibration Launch the SPDriver from “Start Menu / Touch Calibration / Touch Calibration”, or double click the “Touch Calibration” icon from Desktop. Connect your PC and the Projector via enclosed USB cable. The following icon will show up in the task bar.
  • Page 15  Operation mode <Touch Mode> operates interactive function with Finger / Dummy Pen. <Pen Mode> operates interactive function with Light Pen  Calibration <Automatic> Select the “Automatic” to proceed to the calibration process automatically. Note : Before Launch the “Automatic calibration” function, please ensure: Reduce the ambient light Do not obstruct lens or shake projector during “Automatic Calibration”...
  • Page 16  Check the "Touch Area Setting". Ensure the green frame (Touch Area) within the white frame (Projected Area). ※ Please refer the Page 18 for further adjustment of “Touch Area Setting”.
  • Page 17 While the “Auto Calibration” process failed, the warning message will pop-up(as following picture). Click “OK” to launch “Touch Area Setting” for the Manual Calibration process. <Manual> Launch the “Touch Area Setting” process before start the Manual Calibration.  Touch Area Setting Select the adjustable point on the green frame by mouse on PC to ensure the touch area is within the white frame (projection area).
  • Page 18 Click “Exit” on the left-upper corner to complete the Touch Area Setting process.  Manual Calibration Select “Manual” and click “Start” to launch the Manual Calibration process. The following picture will show up on the projected screen. Note: Click the calibration points by LightPen.
  • Page 19 Click the calibration points by Finger / Dummy Pen ※ Press “ESC” button on keyboard to exit the Calibration process ※ Press “up” button on keyboard to recalibrate the previous point. Complete the Manual Calibration process by click all of the 9 points in order.
  • Page 20  Off: available to drawing with multi point as Touch device  ON: available to drawing with single point as Mouse device Instruction of LightPen3 Launch the LighPen3 from “Start Menu/LightPen/LightPen3” or simply click the LightPen icon on the desktop. The toolbar of LightPen3 would show up as the following picture.
  • Page 21 Save current drawing to computer. <Full screen mode> Using two pens at full screen <Split screen mode> Using two pens at split screen at the same time. Switch to white board mode. Backward to last page Forward to next page Extended tool for the drawing.
  • Page 22 < Full Screen mode> Use two pens on full screen with the same setting at the same time. < Split Screen mode> Use two pens on split screen with different setting at the same time. <Dual Pen mode tool> ICON Description Drawing as Red pen Drawing as Green pen...
  • Page 23 Drawing as Blue pen Drawing as White pen Drawing as thin round script Drawing as thick round script Drawing as angle script Erase the drawing. Erase all the drawing on the screen at once. Insert an image as background of drawing Save current drawing to computer.
  • Page 24 < Switch the background as white> Click to insert the white background, click to get back the original background. Edit Tool Click to show up the Edit Tool Bar. Select the extended function as you desire.
  • Page 25 < Select Tool> Click to select the drawing as an object to Enlarge, Decrease or Move. < Rotate Tool> Click to rotate the drawing you selected. < Printing Tool> Click to print the current page out. < Undo> Click to undo the last operation. <...
  • Page 26 The Pointer or the Light Pen can take over the Mouse function. Pressing the tip of the pointer or Light Pen is just like to click with left key of mouse. Pressing and holding the tip of the pointer or Light Pen for more than 3 seconds, will launch the menu bar as click with right key of mouse as following picture.
  • Page 27  Operation mode <Touch Mode> Operates interactive function with Finger / Dummy Pen. <Pen Mode> Operates interactive function with Light Pen.  Calibration <Automatic> Select the “Automatic” to proceed to the calibration process automatically. Note: Before Launch the “Automatic calibration” function, please ensure: Reduce the ambient light Do not obstruct lens or shake projector during “Automatic Calibration”...
  • Page 28   Check the "Touch Area Setting". Ensure the green frame (Touch Area) is within the white frame(Projected Area).
  • Page 29 ※ Please refer the Page 18 for further adjustment of “Touch Area Setting”. If the “Auto Calibration” process failed, the warning message will pop-up(as following picture). Click “OK” to launch “Touch Area Setting” for the Manual Calibration process. <Manual> Launch the “Touch Area Setting” process before start the Manual Calibration. ...
  • Page 30 ※ Adjust the “Ambient light mode” by click on “-“ / “+” to reduce / increase the brightness of the picture. Or choose the adjustable point by click the number on “Touch Area Setting”. Click “Exit” on the left-upper corner to complete the Touch Area Setting process.
  • Page 31 Select “Manual” and click “Start” to launch the Manual Calibration process. The following picture will show up on the projected screen. Note: Click the calibration points by LightPen. Click the calibration points by Finger / Dummy Pen ※ Press “ESC” button on keyboard to exit the Calibration process ※...
  • Page 32  Touch Sensitivity Adjust the Touch Sensitivity level if the effect of Touch mode is not good, or the drawing line is intermittent.  Level 1: the lowest sensitivity (more smooth drawing line)  Level 5: the highest sensitivity (more straighten drawing line) Instruction of LightPen3 Double click the LightPen3 icon to launch the LightPen3 tool bar as following picture.
  • Page 33 Drawing as Red pen Drawing as Green pen Drawing as Blue pen Drawing as High light transparent Marker pen Drawing with circle, triangle, square or strait line. Change the color and fineness of drawing line. Erase the drawing. Erase all the drawing on the screen at once. Save current drawing to computer.
  • Page 34 the function you desired. Dual Pen Click the to show the Dual Pen Mode setting menu up and select the Full Screen mode / Split Screen mode as you desired. < Full Screen mode> Use two pens on full screen with the same setting at the same time. <...
  • Page 35 <Dual Pen mode tool> ICON Description Drawing as Red pen Drawing as Green pen Drawing as Blue pen Drawing as White pen Drawing as thin round script Drawing as thick round script Drawing as angle script Erase the drawing. Erase all the drawing on the screen at once. Insert an image as background of drawing Save current drawing to computer.
  • Page 36 Click to switch to the whiteboard mode. The will change to < Insert any image as background> Select any picture from your data as the background. Or you can choose the default background from the folder as the following picture. <...
  • Page 37 < Select Tool> Click to select the drawing as an object to Enlarge, Decrease or Move. < Rotate Tool> Click to rotate the drawing you selected. < Printing Tool> Click to print the current page out. < Undo> Click to undo the last operation. <...

  • Page 38: Troubleshooting

    < Curtain Tool> Click to launch the curtain function. < H/V tool bar> Click to switch the toolbar as vertical / horizontal < R/L tool bar> Click to switch the toolbar on left / right side. Mouse right key function The Pointer or the Light Pen can take over the Mouse function.
  • Page 39 (1-2) In case of Windows OS, while the following image (A) pop up, it means the system indicates the USB cable is not connected or the USB port is out of order. When the icon is shown as (B), it means you can operate the interactive function by Touch mode (with Curtain).
  • Page 40 (2) The ambient light might be too strong. Take the light out of the CMOS sensor area. The strong ambient light is usually caused by the following: (2-1) The Sunlight through the windows is too close to the screen. (2-2) Light source is too close to the CMOS sensor or screen.
