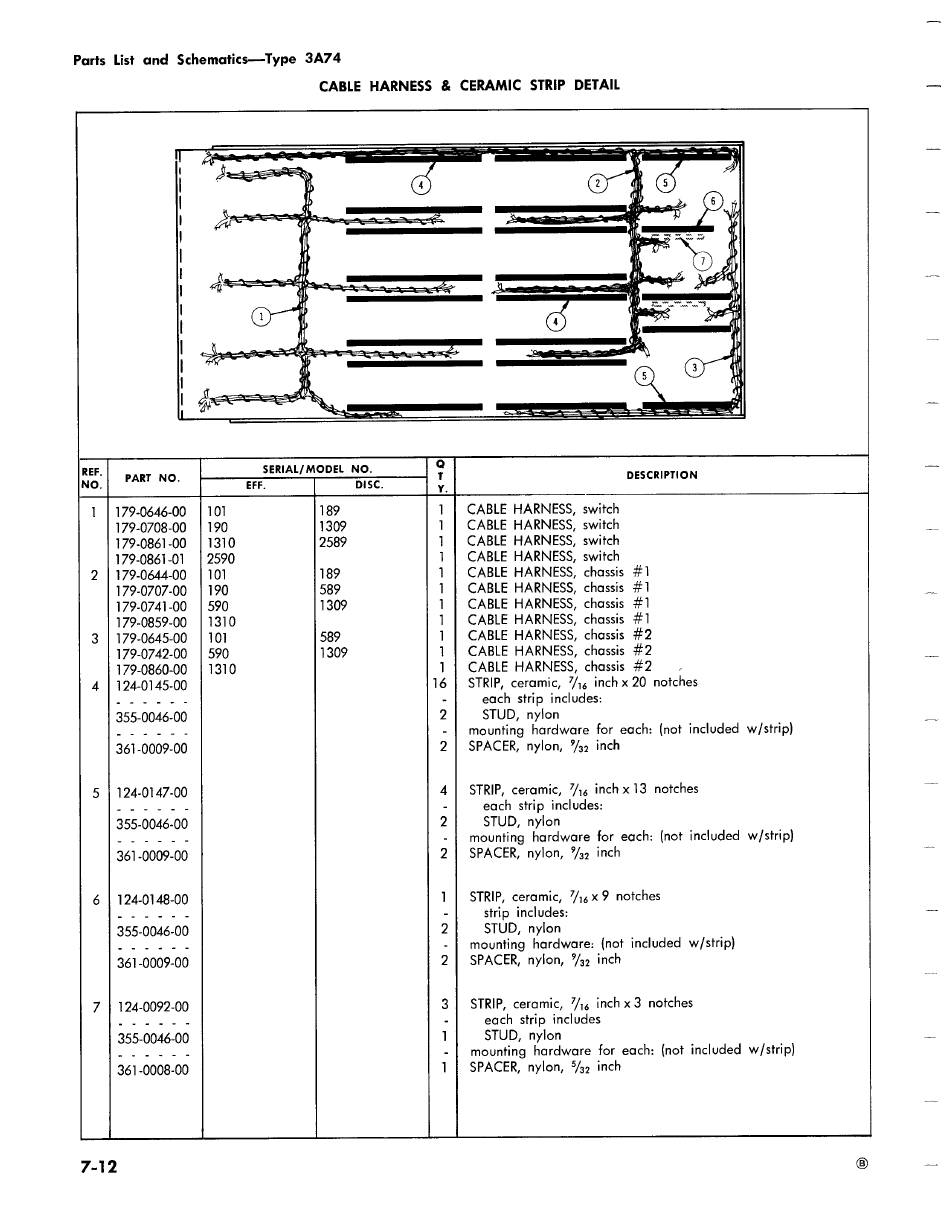

Parts List and Schematics—Type 3A74
CABLE HARNESS & CERAMIC STRIP DETAIL
Q
REF.
PART NO.
= SERAL/ MODEL NO
r
DESCRIPTION
1 | 179-0646-00
| 101
189
1 | CABLE HARNESS, switch
179-0708-00
| 190
1309
1 | CABLE HARNESS, switch
179-0861-00
| 1310
2589
1 | CABLE HARNESS, switch
179-0861-01 | 2590
1 | CABLE HARNESS, switch
2 | 179-0644-00
| 101
189
1 | CABLE HARNESS,
chassis #1
179-0707-00
| 190
589
1 | CABLE HARNESS,
chassis #1
179-0741-00
| 590
1309
1 | CABLE HARNESS, chassis #1
179-0859-00 | 1310
1 | CABLE HARNESS, chassis #1
3 | 179-0645-00
| 101
589
1 | CABLE HARNESS,
chassis #2
179-0742-00
| 590
1309
1 | CABLE HARNESS, chassis #2
179-0860-00 | 1310
1 | CABLE HARNESS,
chassis #2 |
A | 124-0145-00
16 | STRIP, ceramic,
7/14 inch x 20 notches
ss e
- each strip includes:
355-0046-00
2
STUD, nylon
-- se
ee
- | mounting hardware
for each: (not included
w/strip)
361 -0009-00
2 | SPACER,
nylon, %/32 inch
5 | 124-0147-00
4|
STRIP, ceramic,
7/16 inch x 13 notches
cee ee
-
each strip includes:
355-0046-00
2
STUD, nylon
- er ee
- | mounting
hardware for each: (not included w/strip)
361 -0009-00
2 | SPACER, nylon, %/32 inch
6 | 124-0148-00
1 }
STRIP, ceramic,
7/14x 9 notches
ee tee
-
strip includes:
355-0046-00
2
STUD, nylon
eee
- | mounting
hardware: {not included
w/strip)
361-0009-00
21 SPACER,
nylon, %/32 inch
7 | 124-0092-00
3.|
STRIP, ceramic, 7/14 inchx 3 notches
eee
eee
-
each strip includes
355-0046-00
]
STUD, nylon
wee
- | mounting
hardware for each: (not included w/strip)
361 -0008-00
1 | SPACER,
nylon, */32 inch
