Tektronix 3A74 Instruction Manual page 68

Parts List and Schematics—Type 3A74

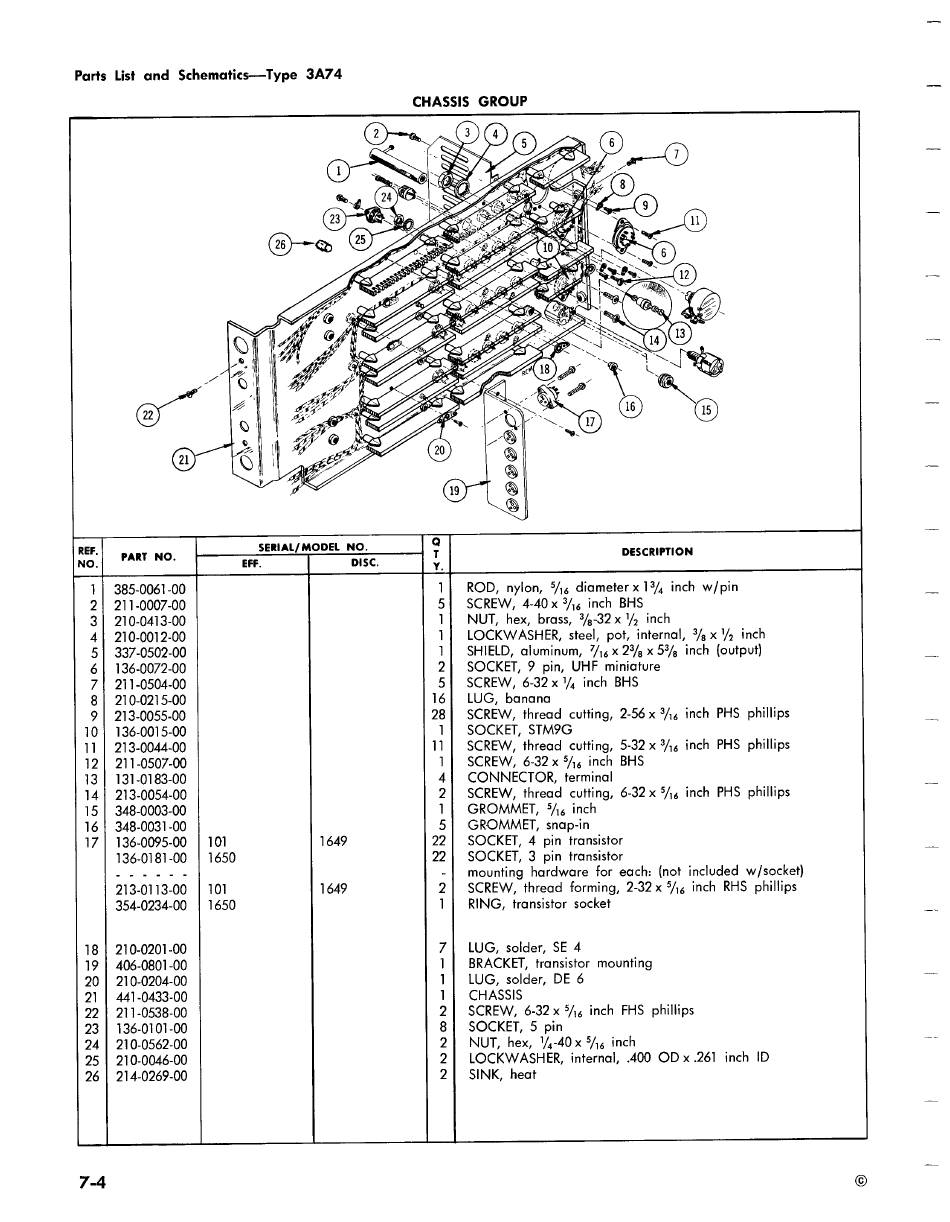

CHASSIS GROUP
ot
@)
REF. SERIAL/ MODEL NO. Q
NO.
PART NO.
EFF.
Disc.
y.
DESCRIPTION
1 | 385-0061-00
1 ] ROD, nylon, 3/6 diameter
x 13/, inch w/pin
2| 211-0007-00 5| SCREW, 4-40 x 3/16 inch BHS
3|
210-0413-00
1 |
NUT, hex, brass,
3/-32 x Y inch
4 | 210-0012-00
1 ] LOCKWASHER,
steel, pot, internal, gx Y2 inch
5]
337-0502-00
1 |
SHIELD, aluminum,
7/16 x 23/5 x 5°/g inch (output)
6 | 136-0072-00
2}
SOCKET, 9 pin, UHF miniature
7 | 211-0504-00 5! SCREW, 6-32 x 1% inch BHS
8} 210-0215-00 16} LUG, banana
9 | 213-0055-00
28] SCREW,
thread cutting, 2-56 x 3/4 inch PHS phillips
10} 136-0015-00 1 | SOCKET, STM9G
11 | 213-0044-00
11 | SCREW, thread cutting, 5-32 x 3%
inch PHS phillips
12 | 211-0507-00 1 ] SCREW, 6-32 x 5/6 inch BHS
13 | 131-0183-00 4) CONNECTOR, terminal
14 | 213-0054-00
2|
SCREW,
thread cutting, 6-32 x 5/4, inch PHS phillips
15 | 348-0003-00 1 | GROMMET, 5/6 inch
16 | 348-0031 -00 51) GROMMET, snap-in
17 | 136-0095-00 | 101 1649 22} SOCKET, 4 pin transistor
136-0181-00 | 1650 22} SOCKET, 3 pin transistor
ce eee
- | mounting
hardware for each: (not included
w/socket)
213-0113-00
| 101 1649
2] SCREW,
thread
forming, 2-32 x 5/;4¢ inch RHS phillips
354-0234-00 | 1650 1 ] RING, transistor socket
18 | 210-0201-00 7 | LUG, solder, SE 4
19 | 406-0801 -00
1 ]
BRACKET, transistor mounting
20 | 210-0204-00 1 ] LUG, solder, DE 6
21 | 441-0433-00 1 } CHASSIS
22 | 211-0538-00
2| SCREW,
6-32 x 5/6 inch FHS phillips
23 | 136-0101-00 8| SOCKET, 5 pin
24 | 210-0562-00
2|
NUT, hex, 4-40 x 5/4 inch
25 | 210-0046-00
2| LOCKWASHER,
internal, 400 OD x .261 inch ID
26 | 214-0269-00 2| SINK, heat
