Tektronix 3A74 Instruction Manual page 73

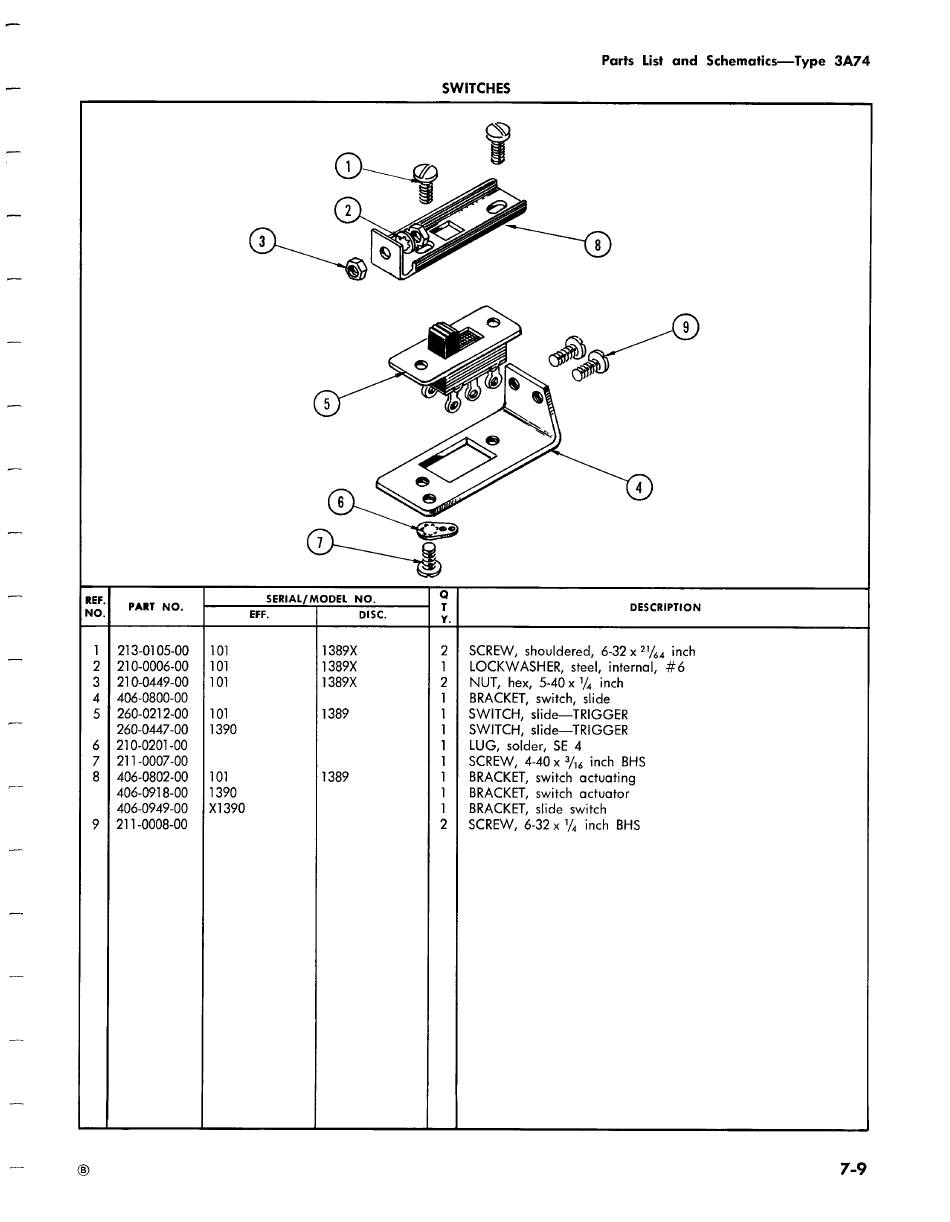

Parts List and Schematics—Type 3A74
SWITCHES
Q
Ne. PART NO. = ivere Ce y DESCRIPTION
1 | 213-0105-00 | 101 1389X 2 | SCREW, shouldered, 6-32 x 21%, inch
2 | 210-0006-00 | 101 1389X 1 | LOCKWASHER, steel, internal, #6
3 | 210-0449-00 {101 1389X 2 | NUT, hex, 5-40x 14 inch
4 | 406-0800-00 1 | BRACKET, switch, slide
5 | 260-0212-00 | 101 1389 1 | SWITCH, slide—TRIGGER
260-0447-00 | 1390 1 | SWITCH, slide—TRIGGER
6 | 210-0201-00 1 | LUG, solder, SE 4
7 | 211-0007-00 1 | SCREW, 4-40 x 3/6 inch BHS
8 | 406-0802-00 | 101 1389 1 | BRACKET, switch actuating
406-0918-00 | 1390 ] BRACKET, switch actuator
406-0949-00 | X1390 1 | BRACKET, slide switch
9 | 211-0008-00 2 | SCREW, 6-32 x Y% inch BHS
