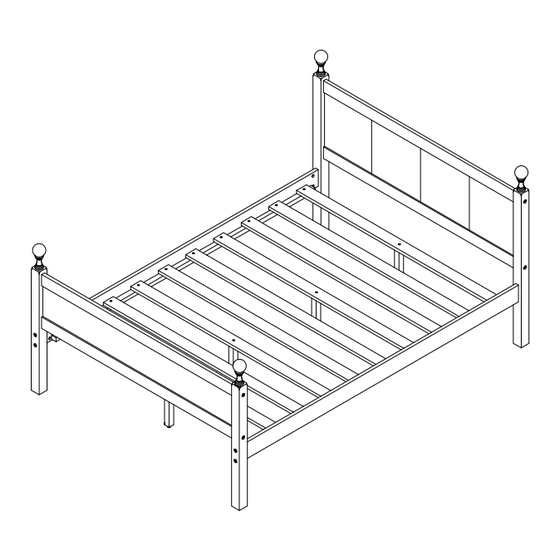

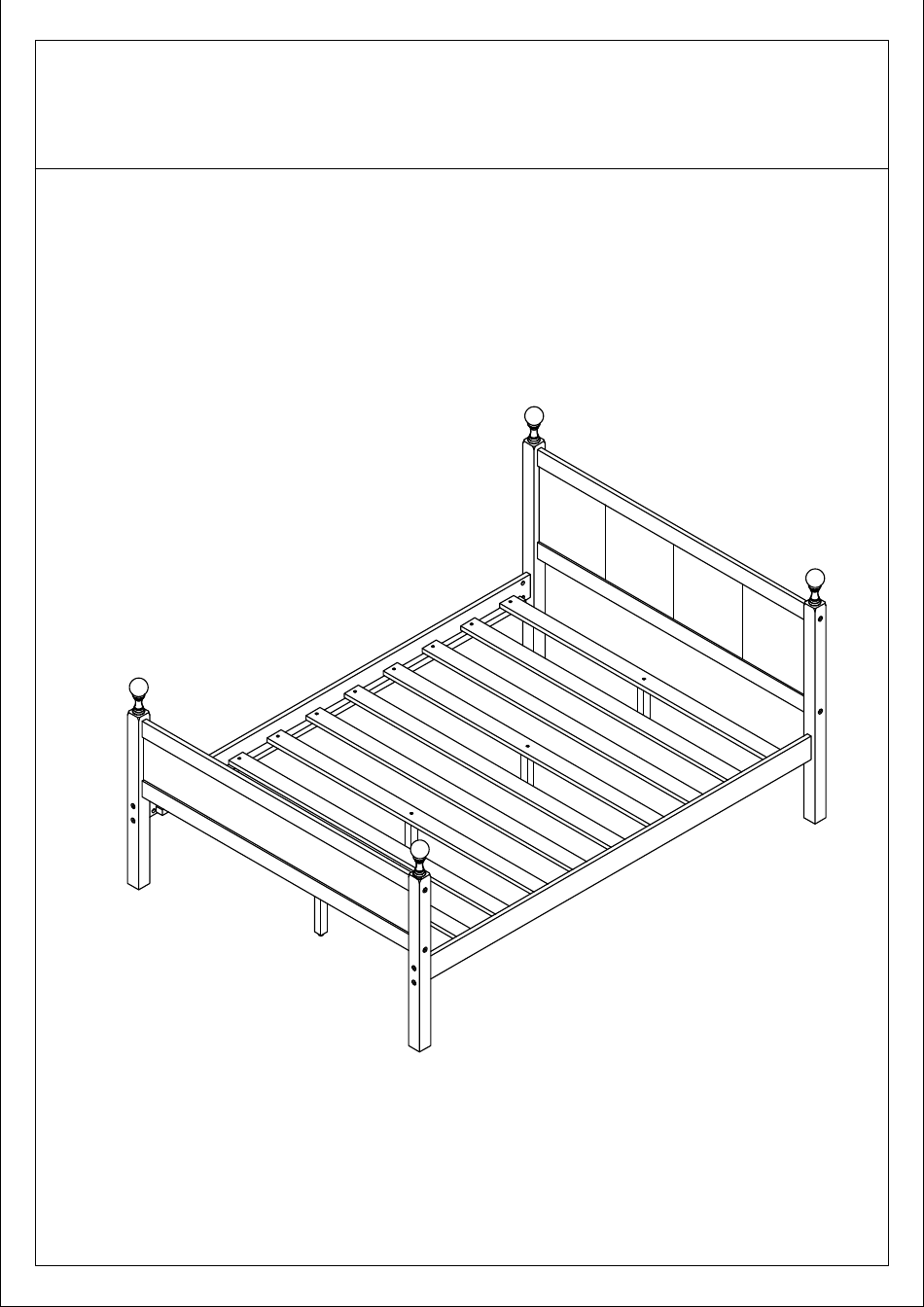

- Page 1 ASSEMBLY INSTRUCTIONS FULL BED Ｉｆ ｙｏｕ ｈａｖｅ ａｎｙ ｑｕｅｓｔｉｏｎｓ， ｐｌｅａｓｅ ｆｅｅｌ ｆｒｅｅ ｔｏ ｃｏｎｔａｃｔ ｕｓ． Ｅｍａｉｌ： ｓｅｒｖｉｃｅ＠ｑｕａｌｆｕｒｎ．ｎｅｔ WF286599...
-
Page 2: Detail View
DETAIL VIEW 28 28 28... -
Page 3: Part Lists
PART LISTS Upper leg FB (Left) - 1pc Upper leg FB (Right) - 1pc Upper leg HB (Left) - 1pc Upper leg HB (Right) - 1pc Side panel (FB) - 1pc Horizontal bar - 4pcs Side panel (HB) - 4pcs Apparatus- 4pcs Side rail upper -2pcs Upper slat - 4pcs... - Page 4 STEP 1: STEP 2: 16PCS 8PCS...
- Page 5 STEP 3: 4PCS STEP 4: 8PCS 4PCS 8PCS ATTENTION: PLEASE DON'T TIGHTEN ALL BOLTS IN THIS STEP, JUST TIGHTEN 80%...
- Page 6 STEP 5: 4pcs STEP 6: STEP 2: SCREW ALL SLATS 20PCS STEP 3: TIGHTEN 100% ALL HEXAGON BOLTS STEP 1: PULL SIDE RAIL CLOSE TOGETHER ENOUGH TO FIT THE SLATS...
- Page 7 COMPLETED...
