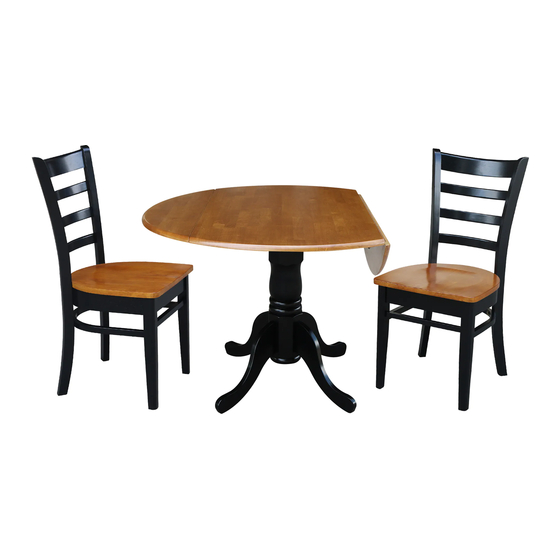

- Page 1 ASSEMBLY INSTRUCTIONS Description DUBLIN ROUND TABLE WITH 2 DROP LEAVES Dimension : 42”x29”1/2.H Cube Size : 44”x26.7”x3.1” NW: 28.6 LBS (TOP) GW: 31 LBS Cube Size : 25.5”x9”x6” NW: 12.1 LBS (PEDESTAL) GW: 14 LBS DUBLIN ROUND TABLE WITH 2 DROP LEAVES...
- Page 2 ( Φ8.5xΦ19mm) ( Φ8.5xΦ11mm) Hexagon nut Wrench (M8x13mm) (M13mm) Small flat Small lock washer washer ( Φ6.5xΦ13mm) ( Φ6.5xΦ9mm) Medium flat Bolt washer (M6x48mm) ( Φ6.5xΦ16mm) Allen key (M4) DUBLIN ROUND TABLE WITH 2 DROP LEAVES - 2 -...
- Page 3 Attach legs (B) to the pedestal (C) with washers (1), (2) and nuts (3). Tighten with wrench (4). STEP 2 Put the Mounting plate (D) on top of the pedestal, and attach with bolts (7), washers (5), (6). Tighten with Allen key (9). DUBLIN ROUND TABLE WITH 2 DROP LEAVES - 3 -...
- Page 4 STEP 3 Carefully place the frame (from Step 2) on bottom side of the table top (A), with bolts (7), washers (8), (6). Tighten with Allen key (9). DUBLIN ROUND TABLE WITH 2 DROP LEAVES - 4 -...
