Service Manual
VG150

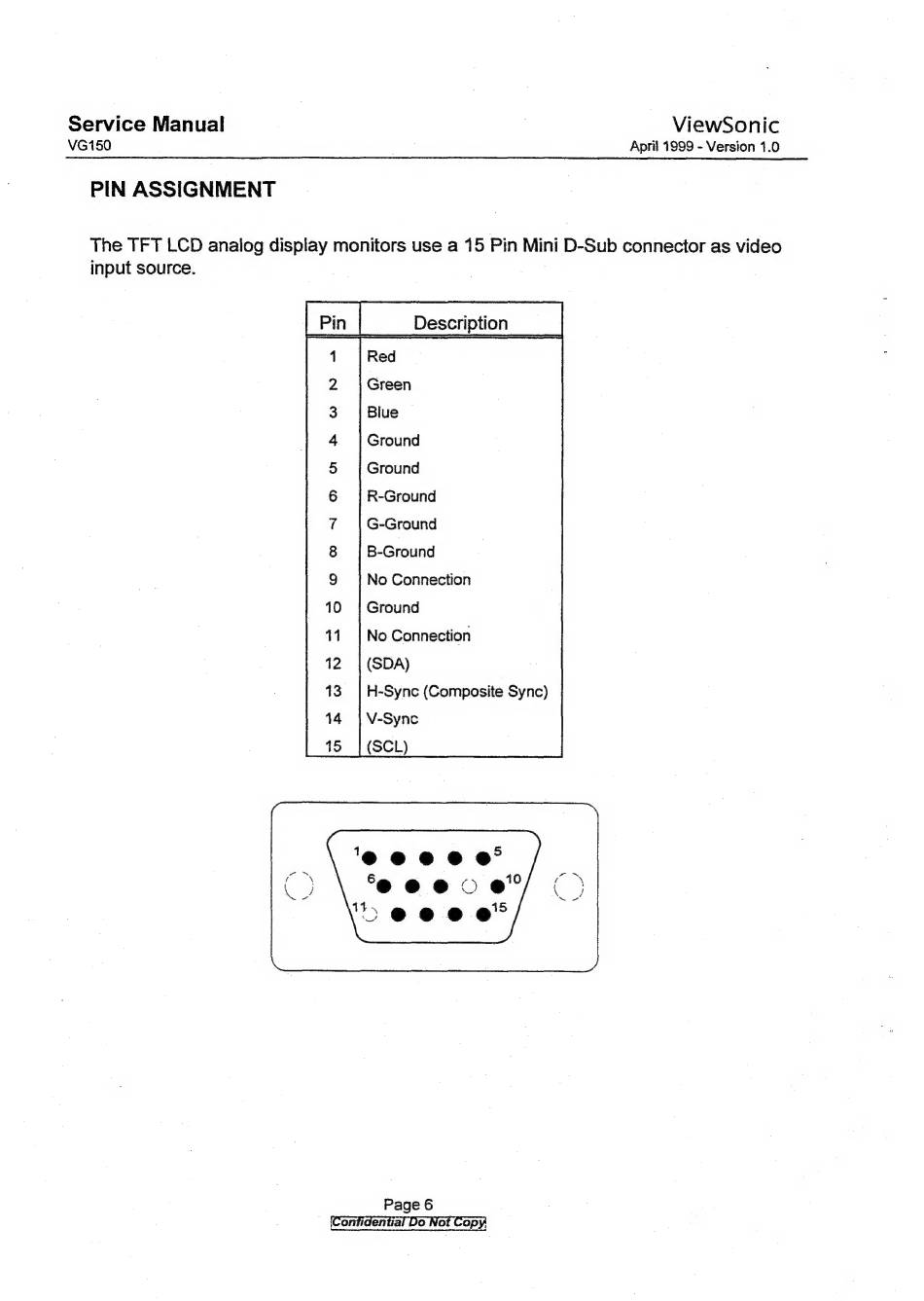

PIN ASSIGNMENT
ViewSonic
April 1999 - Version 1.0
The TFT LCD analog display monitors use a 15 Pin Mini D-Sub connector as video
Pin | Description _|
input source.
oO
On
OO
fF WN
=
ek
ako
ke
ae
ee a B&B
WwW
HO = O
Red
Green
Blue
Ground
Ground
R-Ground
G-Ground
B-Ground
No Connection
Ground
No Connection
(SDA)
H-Sync (Composite Sync)
V-Sync
(SCL)
Page 6
{Confidential Do Not Copy,
