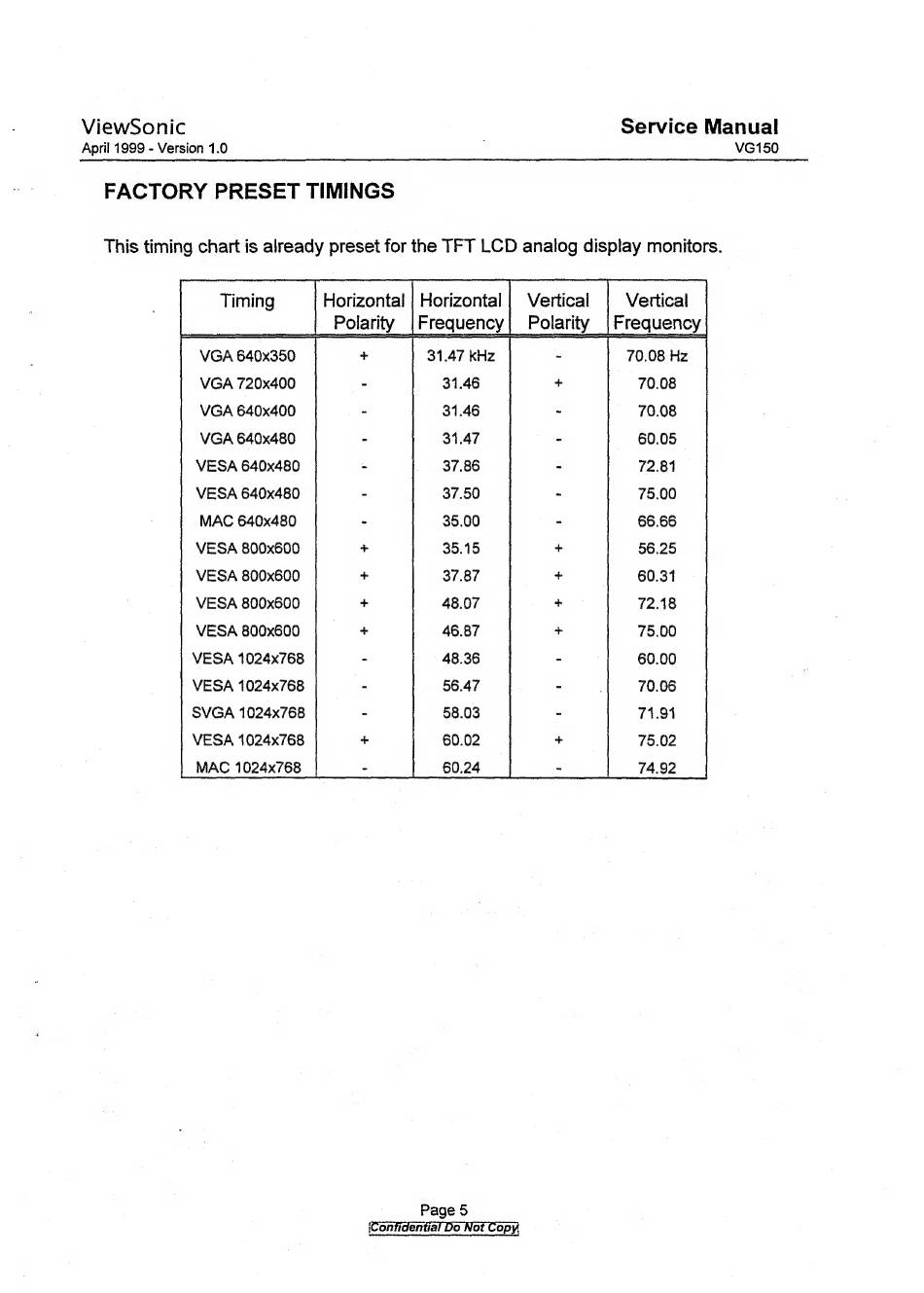

FACTORY PRESET TIMINGS
This timing chart is already preset for the TFT LCD analog display monitors.
Timing Horizontal | Horizontal | Vertical Vertical
Polarity |Frequency| Polarity | Frequency
VGA 640x350 31.47 kHz 70.08 Hz
VGA 720x400 31.46 70.08
VGA 640x400 31.46 70.08
VGA 640x480 31.47 60.05
VESA 640x480 37.86 72.81
VESA 640x480 37.50 75.00
MAC 640x480 35.00 66.66
VESA 800x600 35.15 56.25
VESA 800x600 37.87 60.31
VESA 800x600 48.07 72.18
VESA 800x600 46.87 75.00
VESA 1024x768 48.36 60.00
VESA 1024x768 56.47 70.06
SVGA 1024x768 58.03 71.94
VESA 1024x768 60.02 75.02
MAC 1024x768 60.24 74.92
