Service Manual
VG150
ViewSonic
' April 1999 - Version 1.0

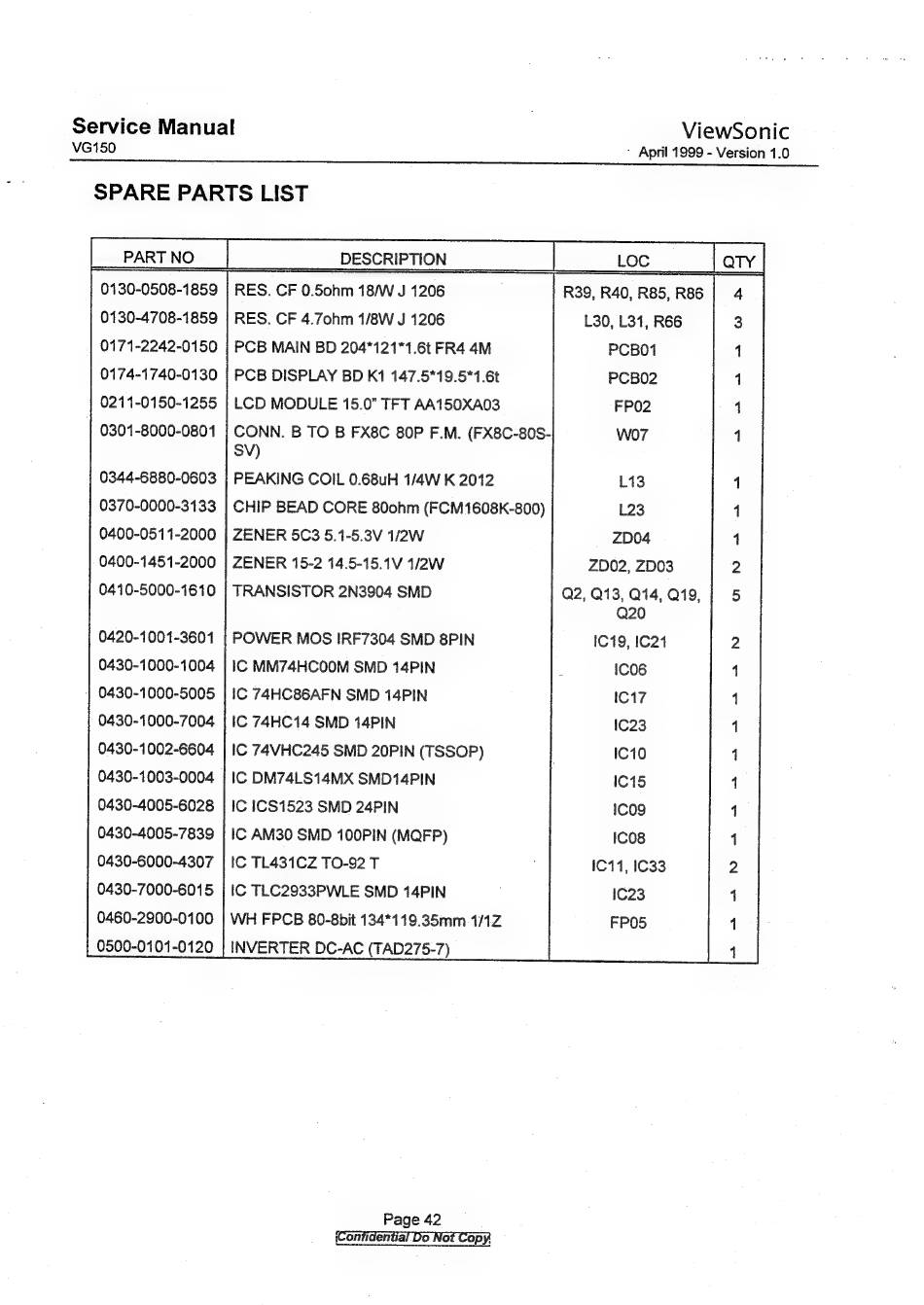

SPARE PARTS LIST
PART NO DESCRIPTION
0130-0508-1859
0130-4708-1859
0171-2242-0150
0174-1740-0130
0211-0150-1255
0301-8000-0801
0344-6880-0603
0370-0000-3133
0400-0511-2000
0400-1451-2000
0410-5000-1610
0420-1001-3601
0430-1000-1004
| 0430-1000-5005
0430-1000-7004
0430-1002-6604
0430-1003-0004
0430-4005-6028
0430-4005-7839
0430-6000-4307
0430-7000-6015
0460-2900-0100
0500-0101-0120
RES. CF 0.50hm 18/W J 1206
RES. CF 4.7ohm 1/8W J 1206
PCB MAIN BD 204*121*1.6t FR4 4M
PCB DISPLAY BD K1 147.5*19.5*1.6t
LCD MODULE 15.0" TFT AA150XA03
CONN. B TO B FX8C 80P F.M. (FX8C-80S-
SV)
PEAKING COIL 0.68uH 1/4W K 2012
CHIP BEAD CORE 80ohm (FCM1608K-800)
ZENER 5C3 5.1-5.3V 1/2W
ZENER 15-2 14.5-15.1V 1/2W
TRANSISTOR 2N3904 SMD
R39, R40, R85, R86
L30, L31, R66
PCBO1
PCB02
FP02
W07
L13
L23
ZD04
ZD02, ZD03
Q2, Q13, Q14, Q19,
Q20
IC19, 1021
ICO6
1C17
1C23
IC10
IC15
ICO9
ICO8
IC14, 1C33
1C23
FP05
POWER MOS IRF7304 SMD 8PIN
IC MM74HCOOM SMD 14PIN
IC 74HC86AFN SMD 14PIN
IC 74HC14 SMD 14PIN
IC 74VHC245 SMD 20PIN (TSSOP)
IC DM74LS14MX SMD14PIN
IC 1CS1523 SMD 24PIN
IC AM30 SMD 100PIN (MQFP)
IC TL431CZ TO-92 T
IC TLC2933PWLE SMD 14PIN
WH FPCB 80-8bit 134*119.35mm 1/1Z
INVERTER DC-AC (TAD275-7)
Page 42
