- Page 1 Element P012S User Manual MOBILE PHONE Uživatelská příručka MOBILNÍ TELEFON Používateľská príručka MOBILNÝ TELEFÓN Felhasználói kézikönyv MOBILTELEFON Podręcznik użytkownika TELEFON KOMÓRKOWY...
-
Page 3: Table Of Contents
Table of Contents Table of Contents Basic information ..........................2 1.1. Brief description of functions ....................2 Safety instructions ...........................3 Before using ............................7 3.1. Designation and description of the phone parts............. 7 3.2. Inserting the SIM and memory cards ................9 3.3. -
Page 4: Basic Information
Basic information 1. Basic information 1.1. Brief description of functions Thank you for selecting the Element mobile phone with colour display. While reading this manual, get familiar with the phone operation, features and control method. The mobile phone is designed for GSM networks; the phone allows dual SIM operation in the standby mode, but you cannot make calls from the other card if a call is in progress on one SIM card. -
Page 5: Safety Instructions
Safety instructions 2. Safety instructions CAUTION: Pay special attention to these instructions. The manufacturer takes no responsibility for a user that does not follow these recommendations or uses the smartphone inappropriately. Through inappropriate use, the user risks breaching respective laws. Carefully read these operating instructions before use. - Page 6 Safety instructions • Do not connect the battery charger to your phone before the battery is installed. Do not short circuit the battery. • Charge the battery of the smartphone in a well ventilated and cool area and at sufficient distance from flammable and explosive materials. •...
- Page 7 Safety instructions photographs, recording videos or audio without permission may violate laws and regulations in force. • When using the network functions, please, do not download files containing viruses, do not install any damaged photographs or dial tones. If downloaded files result in abnormal behaviour of the phone, our company takes no responsibility whatsoever for the given fault.
- Page 8 Safety instructions Note regarding the operator: The phone is factory set for maximum utilisation of available services. Your phone operator may limit or modify certain functions, security or behaviour of this phone as described in this user's manual. In the event of differences, please seek information from your operator.
-
Page 9: Before Using

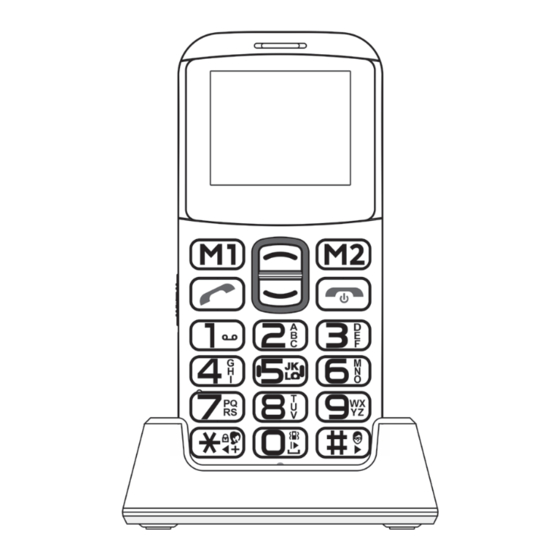

Before using 3. Before using 3.1. Designation and description of the phone parts 3.1.1. Device Loudspeaker Call end key, phone on/off LCD display 10. “SOS” key Left soft key / speed dial 11. “Messages” key Arrow up and down - menu 12. - Page 10 Before using 3.1.2. Phone buttons and their functions Buttons Function Left/right soft button Performing the functions show in the left/right display bottom corner. In standby mode, the left soft button activates the menu; use the right software button to enter your contacts.
-
Page 11: Inserting The Sim And Memory Cards
Before using 0 button In the text messaging mode, the key acts as a space between characters. Hold down the 0 button on the standby screen to switch between the General and Meeting profiles. In the audio playback mode, it acts as a PLAY/PAUSE button. - Page 12 Before using Insert the SIM cards in the appropriate slots under the battery with contacts facing down so that the SIM cards contacts touch the integrated phone SIM contacts. Insert the SIM 1 card in the top right slot with the bevelled corner placed in the top right corner of the slot, insert the SIM 2 card in the left SIM slot with the bevelled corner placed in the bottom right corner of the slot.
-
Page 13: Phone On/Off
Before using To replace the back cover, attach it to the phone body so that the cover locks gently fit into the phone locks. Then gently push the phone cover around the perimeter of the phone body. Finally, check visually that the cover is properly attached to the body of the phone at all points around the perimeter, or press it repeatedly. -
Page 14: Security Password
Before using 3.5. Security password • The PIN code is designed to prevent illegal usage of your SIM card. The PIN code is usually attached to your SIM card. If you enter a wrong PIN three times consecutively, you can unlock it by entering the PUK. For more details, please contact your mobile operator. -
Page 15: Quick Calling Operation Guide
Quick calling operation guide 4. Quick calling operation guide If English is the default language after initial turning the phone on, please navigate through the phone Menu items as follows: Menu / Settings / Phone settings / Languages and select the desired language from the menu here. 4.1. -
Page 16: Phone Menu Functions
Phone menu functions 5. Phone menu functions 5.1. Contacts This function allows you to browse through the telephone directory, as well as save, edit and delete names and phone numbers in phone and on the SIM card. Contact your operator for the capacity of your SIM card. The maximum capacity of the phone memory is 200 contacts. -
Page 17: Recent Calls
Phone menu functions 5.3. Recent calls 5.3.1. Call history The call history list offers you the call overview and the option to delete the items. Pressing the Select button allows you to select the desired function for the selected item in each report, for example Dial selected phone number, Send text message, Save to phone (saving the number to the phone’s memory) or Delete an entry from the call history. -
Page 18: Organizer
Phone menu functions • Auto redial: This function will redial automatically until the call connection is reached. • Call time reminder: You can set a single or repeated warnings about the length of the current call when the set time interval (in seconds) passes. •... -
Page 19: Multimedia
Phone menu functions 5.4.6 Calendar This function can be used to easily view calendar days. To perform calendar operations, press the Select software button: • Display - displays the events added on the selected day. • Display all - displays all events added. •... - Page 20 Phone menu functions 5.5.3. Audio player The phone can play MP3 files from a memory card and supports "background" playback, where you can use another function of the phone (e.g. Messages, Calculator) while listening to music. To stop the playback running “in the background”, press the “0” key in the Audio player application (Menu / Multimedia / Audio player).
-
Page 21: Setup
Phone menu functions CAUTION: To ensure proper function, please use the phone in open space to obtain the best possible FM signal level. 5.6. Setup You can customize your phone settings, such as time and date, language, call settings, etc. 5.6.1 Profiles The preset modes include General mode, "Silent"... - Page 22 Phone menu functions Aircraft mode: The Aircraft mode is used to disable all the phone’s transmission and reception modes (e.g. turn off the GSM signal). Caution: During the flight, do not use this function but turn the entire unit off instead. Advanced: Allows you to set level and time of the display backlight.
- Page 23 Phone menu functions Phone security: • Phone lock: Enable or disable the phone lock. The default password is "1122". • Change password: Change phone password and privacy. Screen auto-lock: Auto-on screen lock locks the phone keys after a set period of inactivity. 5.6.6.
-
Page 24: Entering Text
Entering text 6. Entering text The unit offers several text input modes to allow you to enter text or data into your contacts, edit contact entries, search for names and type SMS messages. If you want to change the input in method in the text entry mode, press „#“. There are several keyboard modes to choose from: general (ABC), Czech (CS), automatic lowercase or uppercase, automatic uppercase first letter, or number mode. -
Page 25: Care And Maintenance
Care and maintenance 7. Care and maintenance Battery care The unit is powered from the battery. The battery must be recharged when flat. To reach the maximum power of a new battery, only charge a fully flat battery. Disconnect the charger from the mains socket and the unit if it’s not to be used. Do not let a fully charged battery be charging longer than it’s necessary. -
Page 26: Technical Specifications
Technical specifications 8. Technical specifications Mobile phone for seniors Display Size: 1.77” TFT Resolution: 160 × 128 pixels Chipset CPU: MTK6261M Memory RAM: 32MB ROM: 24MB Micro SDHC card slot (up to 32GB) Camera Rear: 0.08Mpx (CIF) Network/connectivity Dual GSM 850/900/1800/1900MHz Features Flashlight Vibration ringing... - Page 27 The CE symbol displayed on the unit, the user's manual and on the packaging shows that the unit meets the basic requirements of the R&TTE directive, 1995/5/EC, and the Low voltage directive 73/23/EEC. For the declaration of conformity, please refer to www.sencor.cz. EN 25 2023...
- Page 28 FAST CR, a.s. hereby declares that the radio device type Element P012S conforms to the 2014/53/EU directive. For the full version of the EU declaration of conformity, please refer to: www.sencor.eu...
- Page 29 Manufacturer: FAST ČR, a.s., U Sanitasu 1621, Říčany 251 01, Czech Republic Visit www.sencor.com for detailed information about authorized service centers. The original version of the instructions is in the Czech language, other language versions are made by the appropriate translation.
- Page 30 Notes 28 EN 2023 11/2023...
