Contents Contents Basic information ..........................2 1.1. Brief description of functions ....................2 Safety instructions ...........................3 Prior to use ............................7 3.1. Marking and description of the parts of the device ............7 3.2. Inserting SIM and memory cards ..................8 3.3. Telephone on/off ........................10 3.4.
Basic information 1. Basic information 1.1. Brief description of functions Thank you for purchasing the Element mobile phone with colour display. This manual provides information on the functions, features and operation of the phone. The mobile phone is designed for the GSM / GPRS network environment and allows you to operate two SIM cards in standby mode.
Safety instructions 2. Safety instructions WARNING: Pay attention to the following instructions. The manufacturer does not assume any responsibility towards a user that does not follow these recommendations or uses the smartphone in an unsuitable manner. By using the device unsuitably, the user risks violating the relevant acts.
Page 6
Safety instructions • Charge the smartphone battery in well-ventilated and cooled areas and away from flammable and explosive materials. • To prevent demagnetization, keep your smartphone away from magnetic materials, such as hard drives, credit cards etc. • Mobile phones are sensitive to external interference, which can seriously affect functionality;...
Page 7
Safety instructions • When using network features, please do not download files infected with a virus, do not install damaged photos and ringtones. Our company is not liable for defects caused by the phone behaving abnormally after downloading files. • Follow local regulations for disposing of the battery. Recycle if possible. Do not throw the battery into standard waste.
Page 8
Safety instructions Appendix to the user's manual for the LCD panel Measures for static image; red/blue/green/black spots on the screen A static image can damage the LCD display permanently. • Do not leave a static image on the LCD panel for more than 2 hours.

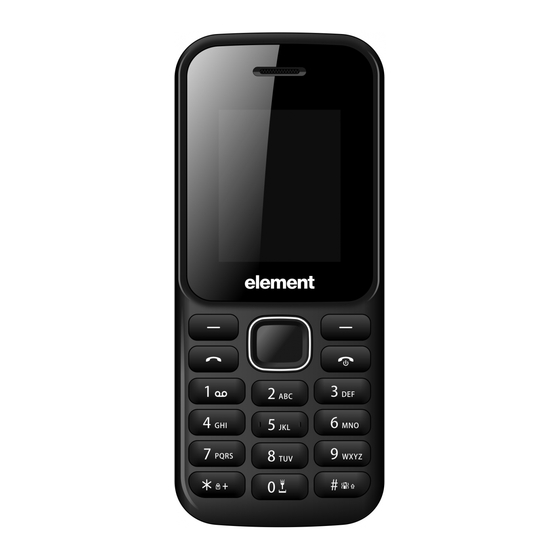

Prior to use 3. Prior to use 3.1. Marking and description of the parts of the device 3.1.1. Device Centre key OK Keys to enter text and numbers Left software button 10. Microphone Call button 11. USB input for charging Speaker 12.
Prior to use Buttons Functions Navigation keys The navigation keys correspond to the directional buttons except for special functions. You can increase/decrease the volume of the speaker during a call using up/down keys. Call button By pressing this button, you dial a number or accept an incoming call.
Page 11
Prior to use NOTIFICATION Do not bend the SIM card and protect it from scratching. Do not expose the SIM card to static electricity, water and dirt. When inserting and removing SIM cards and the memory card, be careful not to damage the slots and base plate of the telephone.
Prior to use Insert the SIM cards in the appropriate slots under the battery with contacts downwards, so that the contacts of the SIM cards touch the built-in contacts for SIM cards in the phone. Insert the SIM card 1 into the left slot by the skewed corner located in the upper left corner of the slot;...
Prior to use 3.4. Charging the battery Connect the charger to the charging connector on the bottom side of your phone. Then connect the charger to a standard electrical outlet and the battery icon on the display starts to move. When the battery icon stops moving, the battery charging is complete.
Quick calling guide 4. Quick calling guide In case that when you switch on the phone and the default language is English, proceed as follows through the telephone Menu: Menu / Settings / Phone settings / Language settings / Display language and here select the required language from the menu. 4.1.
Quick calling guide 4.7. Call volume level It is possible to change the volume level during a call using the navigation keys (v V). The phone allows to select one of 15 volume levels (from very quiet to extremely loud). The shared speaker is designed to serve for a ringtone, handsfree, and handset of the phone and does not allow multiple sound operations at a time.
Available functions in the phone menu 5. Available functions in the phone menu 5.1. Call history Call History provides an overview of calls and the option to delete records. Dialled numbers: View the list of recent dialled numbers. Received calls: View the list of recent received calls. Rejected calls: View the list of all recent calls.
Available functions in the phone menu To use the MMS service, you have to insert a memory card in the phone with free space on it. The functioning of this service must be activated by your network operator, including data services. For proper function of data services, it is necessary to have the correct settings in this section: Message/Options/Settings/Multimedia message for the selected SIM card.
Available functions in the phone menu 5.4.6. FM radio To connect the FM radio, you need to have earphones that work as an aerial for the telephone. You can call or receive calls when listening to the radio without limitations. The radio sound is muted during a call.
Available functions in the phone menu Press the center key OK to enter the editing mode of the selected alarm clock. In the alarms editing mode, you can use the up or down arrow keys to scroll through to the other options.
Available functions in the phone menu 5.8. Internet The phone is equipped with an internet browser. For proper functioning of your browser it is necessary to have an inserted memory card with free space. Before the first setting, make sure that you have a data transmission service activated by your network operator. If the parameters of the network connection do not set automatically, you have to set them manually in the Setting section.
Page 21
Available functions in the phone menu Language setting: You can select the language for the phone. Shortcuts: You can change the speed-dial assignment for the right soft key as well as for the navigation keys in standby mode (up, down). Automatic switch on: The phone allows you to set turn on and off time.
Entering text 6. Entering text The device offers several text input modes, you can enter text or data in your contacts, edit contact records, search for names and write SMS messages. If you want in the “text input” mode change the input method, press the “#” button. The selected text input method appears at the top of the screen.
Care and maintenance 7. Care and maintenance Battery care The device is powered by a battery. It is necessary to charge the battery when it is empty. You can achieve a maximum performance of a new battery only by charging it when it is fully discharged.
Technical specifications 8. Technical specifications Display Size: 1,77“ TFT Resolution: 128 × 160 Chipset CPU: SC6531E Memory media Operation memory: 32 MB ROM: 32 MB Micro SDHC Slot (up to 8 GB) Camera Rear: 0,08 Mpx (VGA) Network/Connectivity GSM Band 850/900/1800/1900 MHz Bluetooth 2.1 Features Torch Light...
Page 26
Value and precision Unit Manufacturer’s name or trade Shenzhen Tianyin Electronics Co.,Ltd. 2-6 mark, commercial registration Fl, Bldg 9, Sanzhuli number and address Industrial Park, Shuitian Community Shiyan Subdistrict, Bao’An District Shenzhen, Guangdong 518108 China Model identifier TPA-97H050055VW01 Input voltage 100-240 Input AC frequency 50/60...
Page 27
Hereby, FAST ČR a.s. declares that the radio equipment type ELEMENT P009 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.sencor.eu...
