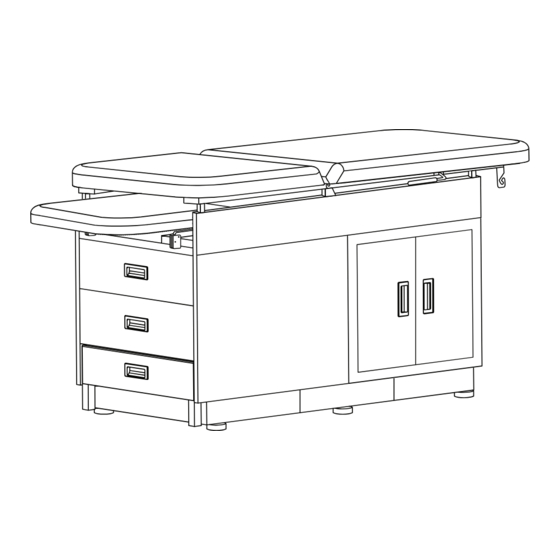

- Page 1 STEEL EXAM TABLE USER GUIDE ADI996-09-SERIES...
- Page 2 Thank you for your purchase. Viva Comfort maintains a strong practice of ongoing development of products and commercial research. We recognize that starting and maintaining a medical practice is expensive. We’ll help make the process cost-effective and elegant. Additionally, our team of specialists will ensure everything you need works as efficiently as possible, so you can effectively treat your clients.
-
Page 3: Table Of Contents
Table of Contents Parts List Hardware List Assembly Instructions Warranty Notes... -
Page 4: Parts List
Parts List Exam Base Backrest (Preinstalled) Paper Dispenser Knockdown Frame Mattress Pullout Mattress Pullout Shelf (Preinstalled) Paper Cutter... -
Page 5: Hardware List
Hardware List M6*20mm Screw (x15) M6*12mm Screw (x4) Tools Needed For Assembly: Hex Key... -
Page 6: Assembly Instructions
Assembly Instructions Step 1: A. Remove all the packaging from the contents in the box. a. Ensure you are working on a flat, clean surface. Step 2: A. To avoid injury, press the backrest frame up with one hand before depressing the yellow handle on the side of the frame. - Page 7 Step 3: A. Insert the Knockdown Frame (D) by sliding it into the metal tubes of the Backrest (B), as pictured.
- Page 8 Step 4: A. Remove the packaging from the mattresses and place them on a clean surface. B. Place the Pullout Mattress (F) on the Pullout Shelf (G). C. Insert four M6*12 mm Screws (2) through the bottom of the frame and into the Pullout Mattress (F). a.
- Page 9 Step 5: A. Guide your backrest down but depressing the yellow lever and guiding the frame down. B. Take the Mattress (E) and lay it on top of the backrest. C. Lift the kneeboard section of the frame, with part of the mattress, from the front, up on an angle, as shown.
- Page 10 Step 6: A. Depress the yellow handle again and raise the Backrest (B) up and lock it in a comfortable position. B. Insert four M6*20 mm Screws (1) into the lowest part of the Backrest (B) as shown, and turn them only halfway with the Hex Key.
- Page 11 Step 7: A. Insert the Paper Dispenser (C) by placing it between the hooks located on each side of the Knockdown Frame (D). Step 8: A. Insert the Paper Cutter (H) over the kneeboard section as shown. a. Once you install your paper roll, slide the paper underneath the Paper Cutter (H). B.
-
Page 12: Warranty
Warranty Viva Comfort (the “Company” or “Tiger Companies”) warrants to the purchaser that the product will be free from defects in workmanship and materials for a period of 1 year from the date of purchase. The warranty period is not extended if we repair, replace, exchange, or provide a refund for the product (as determined in our sole discretion). -
Page 13: Notes
Notes... - Page 14 Notes...
- Page 15 Notes...
- Page 16 ADI996-09-SERIES © 2023 Viva Comfort vivacomfort.com...
