- Page 1 KGG64362K KGG64362S KGG64362W User Manual...
-
Page 2: Table Of Contents
11. ENVIRONMENTAL CONCERNS..............20 WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. - Page 3 ENGLISH of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. 1.1 Children and vulnerable people safety This appliance can be used by children aged from 8 • years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a...
- Page 4 WARNING: The appliance and its accessible parts • become hot during use. Care should be taken to avoid touching heating elements. WARNING: Unattended cooking on a hob with fat or • oil can be dangerous and may result in fire.
-
Page 5: Safety Instructions
ENGLISH Where the appliance is directly connected to the • power supply, an all-pole isolating switch with a contact gap is required. Complete disconnection in compliance with the conditions specified in overvoltage category III must be guaranteed. The earth cable is excluded from this. When you route the mains cable, make sure that the •... - Page 6 2.3 Gas connection • Before carrying out any operation make sure that the appliance is disconnected from the power supply. CAUTION! • Make sure that the parameters on the When using a gas cylinder, rating plate are compatible with the...
- Page 7 ENGLISH • The vapours that very hot oil releases CAUTION! can cause spontaneous combustion. The use of a gas cooking • Used oil, that can contain food appliance results in the remnants, can cause fire at a lower production of heat, moisture temperature than oil used for the first and products of combustion time.
-
Page 8: Installation
2.5 Care and cleaning 2.6 Service • To repair the appliance contact the WARNING! Authorised Service Centre. Use Do not remove the buttons, original spare parts only. knobs or gaskets from the control panel. Water may get 2.7 Disposal inside the appliance and cause damage. - Page 9 ENGLISH If the supplied pressure has not the 5. Attach the label with the new type of specified value, it is necessary to gas supply near the gas supply pipe. assemble a proper pressure regulator in You can find this label in the package compliance with the standard UNI EN 88.
- Page 10 1. Connect the green and yellow (earth) socket. wire to the terminal which is marked • Always use a correctly installed with the letter 'E', or the earth symbol shockproof socket.
- Page 11 ENGLISH 3.8 Installing hob under the hood If you install the hob under a hood, please see the installation instructions of the hood for the minimum distance between the appliances. 3.9 Possibilities for insertion The panel installed below the hob must be easy to remove and let an easy access in case a technical assistance intervention is necessary.
-
Page 12: Product Description

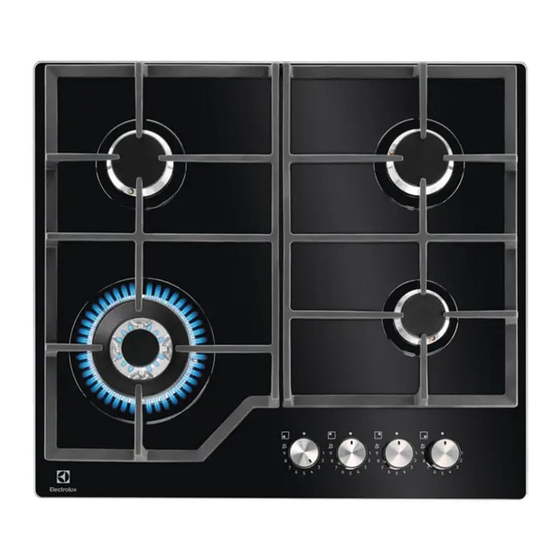

4. PRODUCT DESCRIPTION 4.1 Cooking surface layout Semi-rapid burner Multi Crown burner Auxiliary burner Control knobs 4.2 Control knob Symbol Description Symbol Description minimum gas supply no gas supply / off posi‐ 1 - 9 power levels tion ignition position / maxi‐... -
Page 13: Hints And Tips
ENGLISH 5.2 Ignition of the burner CAUTION! In the absence of electricity Always light the burner you can ignite the burner before you put on the without electrical device; in cookware. this case approach the burner with a flame, turn the WARNING! control knob counter- Be very careful when you... - Page 14 6.2 Diameters of cookware CAUTION! Make sure that pot handles CAUTION! are not above the front edge Use cookware with of the cooktop. diameters applicable to the size of burners. CAUTION! Make sure that the pots are Burner Diameter of...
-
Page 15: Care And Cleaning
ENGLISH Food categories Recipes Burner type Power level French fries Multi Crown Fried dishes Donuts Multi Crown Roasting nuts Semi-rapid Snacks cooked with Croutons of bread Multi Crown Pancakes Semi-rapid Caramel Auxiliary Desserts Custard Auxiliary Panna cotta Auxiliary All recipes for approximately For an optimal delicate 4 portions. - Page 16 3. After you clean the pan supports, make sure that they are in correct positions. 4. For the burner to operate correctly, make sure that the arms of the pan supports are aligned with the centre of the burner.
-
Page 17: Troubleshooting
ENGLISH 7.6 Periodic maintenance conditions of the gas supply pipe and the pressure adjuster, if fitted. Speak to your local Authorised Service Centre periodically to check the 8. TROUBLESHOOTING WARNING! Refer to Safety chapters. 8.1 What to do if... Problem Possible cause Remedy There is no spark when... -
Page 18: Technical Data
8.3 Labels supplied with the accessories bag Stick the adhesive labels as indicated below: MOD. MOD. MOD. TYPE PROD.NO. IP20 PROD.NO. PROD.NO. SER.NO. 0049 SER.NO SER.NO 03 IT DATA DATA MADE IN ITALY A. Stick it on Guarantee Card and send C. -
Page 19: Energy Efficiency
NOMINAL GAS FLOW g/h POWER POWER MARK G30 28-30 G31 37 mbar mbar Multi Crown 3,55 Semi-rapid Auxiliary 0,33 10. ENERGY EFFICIENCY 10.1 Product information according to EU 66/2014 Model identification KGG64362K, KGG64362S, KGG64362W Type of hob Built-in hob Number of gas burners... -
Page 20: Environmental Concerns
Help protect the contact your municipal office. environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of Electrolux Appliances AB - Contact Address: Al. Powstańców Śląskich 26, 30-570 Kraków, Poland... - Page 24 www.electrolux.com/shop...
