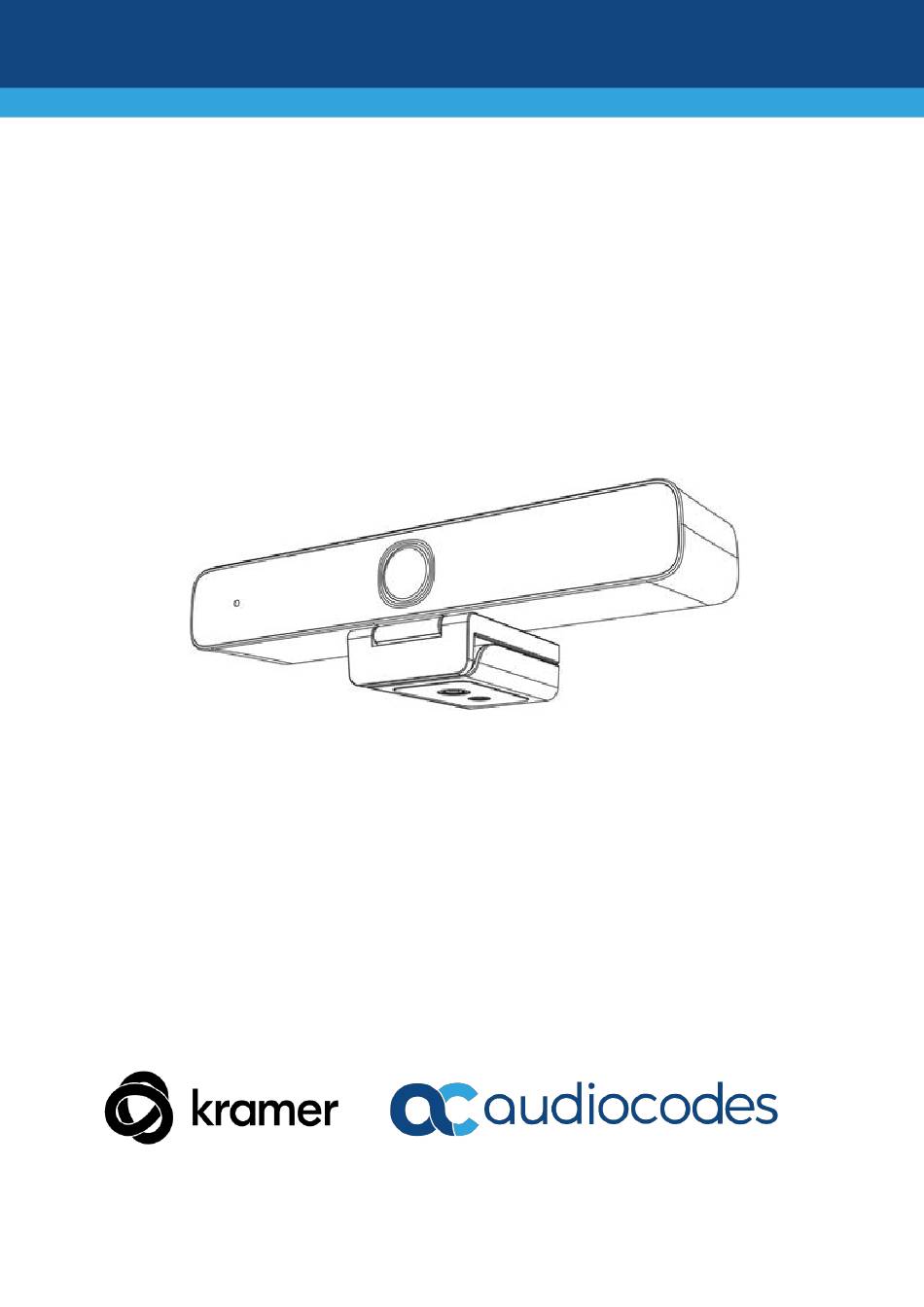

Video Conference Camera
This User Manual provides a brief introduction to the functions, installation, and operations of the KAC-CAM-
50MVideo Conference Camera.
The document describes two product flavors:
▪
KAC-CAM-50L. The field of view is 81 degrees (suitable for a Large room)
▪
KAC-CAM-50M. The field of view is 100 degrees (suitable for a Medium room)
The target environment size is the only difference between the KAC-CAM-50L and the KAC-CAM-50M.
PN
2900-301727
REV
1
KAC-CAM-50M
User Manual
1 |
P a g e
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AudioCodes kramer KAC-CAM-50M
Summary of Contents for AudioCodes kramer KAC-CAM-50M
- Page 1 KAC-CAM-50M Video Conference Camera User Manual This User Manual provides a brief introduction to the functions, installation, and operations of the KAC-CAM- 50MVideo Conference Camera. The document describes two product flavors: ▪ KAC-CAM-50L. The field of view is 81 degrees (suitable for a Large room) ▪...
-
Page 2: Safety Precautions
install the product obliquely otherwise it may display an inclined image. Safety Precautions If the camera is installed on a TV or a computer, the base can be fixed by four This User Manual describes the functions, double-sided adhesive trays. installation, and operations related to the KAC- Housing of this product is made of organic Cam50 camera. -
Page 3: Quick Installation Instructions
Quick Installation Instructions The figure below illustrates the camera interface. Camera Interface 1. Camera lens 4. Tripod fixing hole 6. Bracket 2. Indicator Light 5. Positioning hole 7. USB3.0 interface Camera Operation Product Installation: Fix the device onto an LCD screen, on top of a computer; place it on a desktop, or on a tripod mounting. -
Page 4: Product Overview
Product Overview ▪ Product Model: KAC-CAM-50 ▪ Camera Dimensions: ▪ Accessories: ▪ Wireless remote controller ▪ USB3.0 Type-A to Type-B, 3-meter cable ▪ 2 * AAA batteries P a g e... -
Page 5: Main Features
Main Features The camera includes integral AI functions which can automatically centrally frame all people in a meeting. It features smooth functionality and superior performance with advanced ISP processing algorithms that provide vivid images with evenly clear brightness, strong color layering, high resolution, and good color rendition. -
Page 6: Specifications
Specifications Parameter KAC-CAM-50L KAC-CAM-50M Camera Image Sensor 1/2.5-inch high-quality 4K CMOS Sensor Effective Pixels 8.28MP 16:9 Video output 1* USB3.0, Type B, supports audio output over USB3.0 port View Angle 91°(D) / 81°(H) / 54°(V) 102°(D)/100°(H)/64°(V) Video Format ▪ Main stream: 3840×2160@30fps、1920×1080P@30fps/25fps、 1280×720P@30fps/25fps, etc. - Page 7 Parameter KAC-CAM-50L KAC-CAM-50M communication UVC, UAC protocol PTZ control Supports EPTZ Hardware ▪ 2.4 GHz Intel@ Core 2 Duo processor or higher requirement ▪ 2GB RAM or more USB 2.0/USB3.0 port (USB 3.0 is needed for 4K video) Other Parameters Input Voltage Input Current 1A (max.)
-
Page 8: External Interface
Interface External Interface The figure below shows the external interface connections. Interface Diagram P a g e... -
Page 9: Wireless Remote Controller
Number keys: Set or call 0-9 presets. Application FOCUS (unsupported) ▪ + Focus in Wireless Remote Controller ▪ - Focus out AUTO (unsupported) MANUAL (unsupported) ZOOM ▪ Press + to zoom in ▪ Press – to zoom out SET PRESET | CLEAR PRESET ▪... -
Page 10: Basic Operations
Press * + # + F1 to set Camera Address 1 Press * + # + F2 to set Camera Address 2 Press * + # + F3 to set Camera Address 3 Press * + # + F4 to set Camera Address 4 Key Combinations Press # + # + # to clear all presets Press * + # + 6 to restore defaults... -
Page 11: Menu Setting
Auto Framing Menu Setting In the setup menu, move the pointer to (Auto To display the menu, press the MENU key under Framing), press the HOME key and enter the Auto MJPG, YUY2, NV12 or H264 compression encoding Framing settings: format output. -
Page 12: Image Settings
▪ ▪ Mode: Auto, Manual, SAE, Bright AWB Sensitivity: High/Middle/Low (available in Auto mode only) ▪ EV: On/Off (available in Auto mode only) Color Temp: 2400k-7100k (available in VAR mode ▪ BLC: ON/OFF for options (available in Auto only) mode only). Image Settings ▪... -
Page 13: Noise Reduction Settings
Press the ← → key to set YES/NO and then press Noise Reduction Settings HOME to confirm the selection. In the MENU settings, move the pointer to (Noise Note: The video format and color style cannot be Reduction), press the HOME key and enter the restored to factory defaults. -
Page 14: Maintenance And Troubleshooting
Remote Controller does not work Maintenance and Set the camera address to 1 (the camera Troubleshooting address is restored to 1 after restoring default settings). This section shows how to maintain and Repeat the pairing procedure between the troubleshoot the device. Wireless Remote Controller and the camera. -
Page 15: Copyright Statement
Copyright Statement All the contents in this manual and its copyright International Headquarters are owned by the company. No one is allowed to 2 Negev Street, imitate, copy, or translate this manual without the Airport City company’s permission. This manual contains no Lod 7019900, Israel guarantee, standpoint expression or other implies Tel: +972-073-265-0200...
